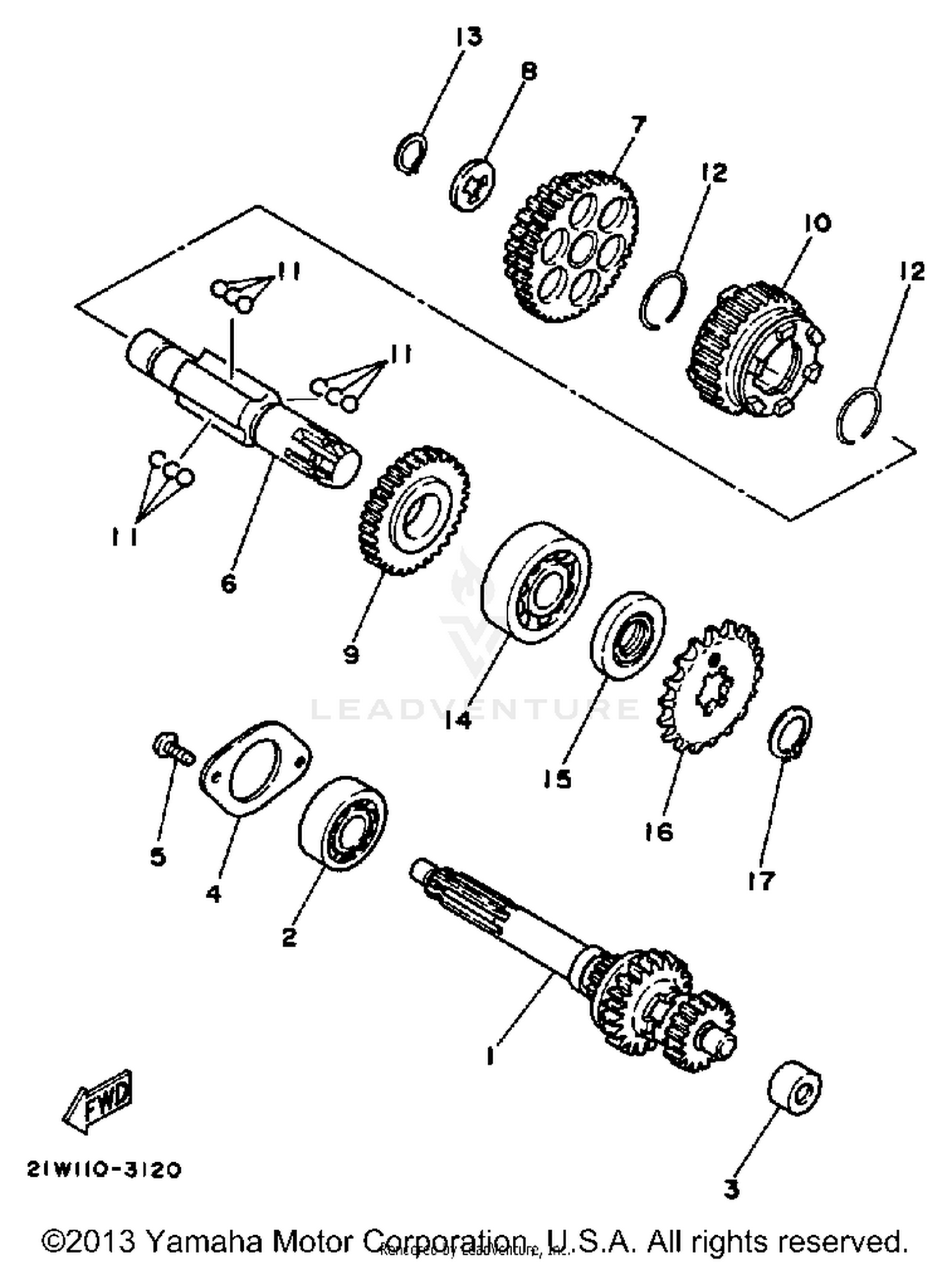

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE COMP.
21W-17410-00-00
Superseded by 4BC-17410-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20310-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-41202-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, COVER
296-17471-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
AXLE, DRIVE
1W7-17421-10-00
Superseded by 1W7-17421-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 1ST WHEEL (39T/26T)
1W7-17211-12-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (0.6T)
90209-15178-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER (1.0T)
90209-15180-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER (0.8T)
90209-15179-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND WHEEL (29T)
1W7-17221-20-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 3RD WHEEL (22T)
21W-17231-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#11
BALL
93509-32012-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-28049-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93440-15012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-20143-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPROCKET, DRIVE 15T (5171746152
93812-15063-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
