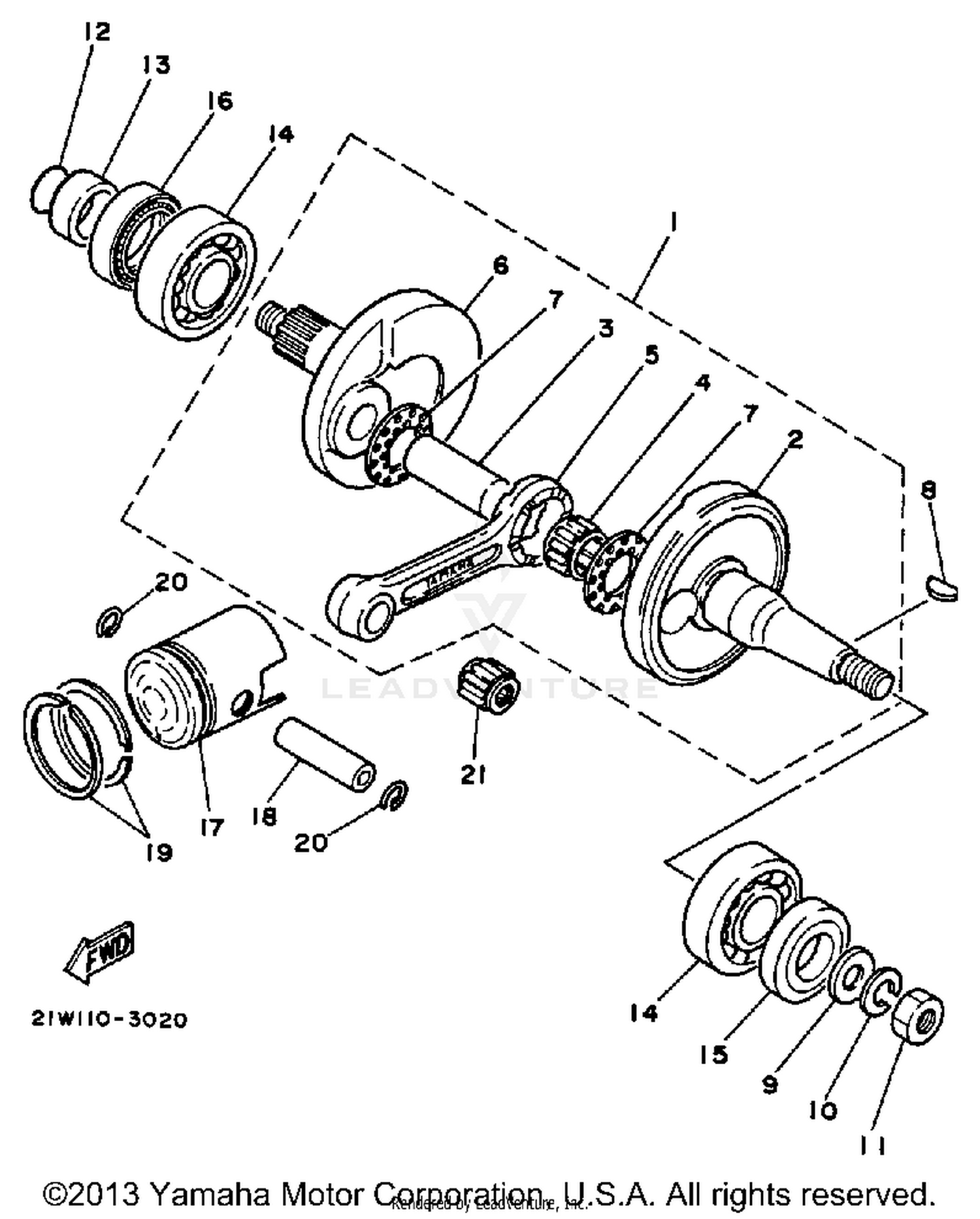

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1W7-11400-02-00
|
$288.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
1W7-11412-00-00
Superseded by 4BC-11412-00-00
|
$73.17 | ||
|
Unavailable |
|||
|
#3
PIN, CRANK 1
2Y1-11681-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93310-420F2-00
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
1W7-11651-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANK 2
1W7-11422-01-00
|
$52.82 | ||
|
Unavailable |
|||
|
#7
WASHER
90209-20159-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY, WOODRUFF
90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
92990-12600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95311-12600-00
Superseded by 95337-12600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-180A6-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COLLAR
90387-20603-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING (B6205C4)
93306-20529-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93103-25098-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (93103-32099-00 )
93103-32171-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON (STD)
3E5-11631-00-97
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.25MM O/S)
3E5-11635-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
3E5-11636-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, PISTON
527-11633-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PISTON RING SET (0.25MM O/S)
14N-11610-10-00
Superseded by 14N-11604-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
5T0-11610-20-00
Superseded by 14N-11605-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
5T0-11610-00-00
Superseded by 14N-11603-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93450-13022-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BEARING
93310-11268-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
