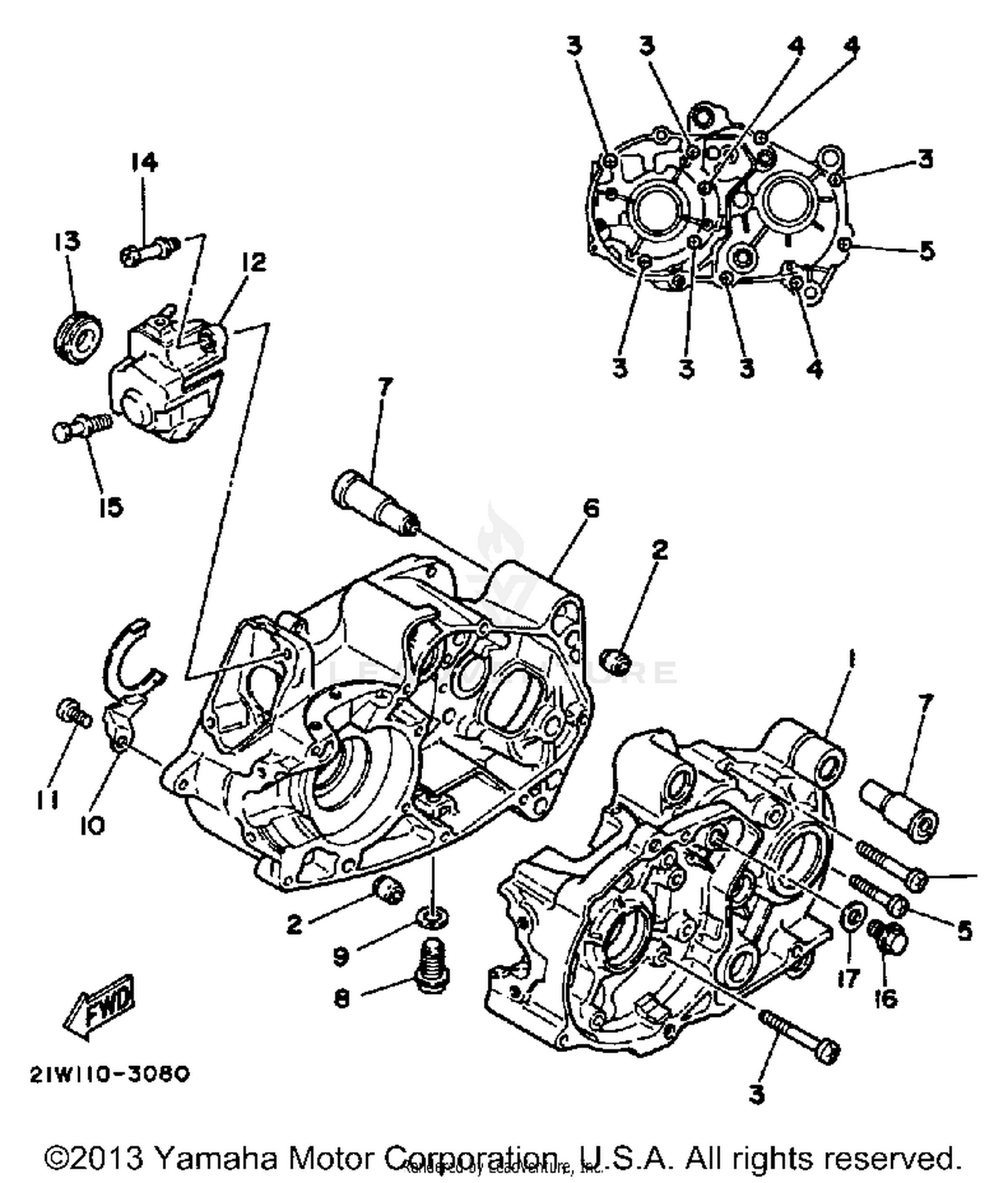

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1 (1W7-15111-03-00)
1W7-15111-03-00
Superseded by 1W7-15111-09-00
|
$312.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06550-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$6.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CRANKCASE 2
1W7-15121-03-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER 1
296-15316-00-00
Superseded by 5T9-15316-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-12005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-12207-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOLDER
300-15128-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, OIL PUMP
517-15416-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-21436-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW
90149-06157-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
90101-06394-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10147-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-10031-00
Superseded by 90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
