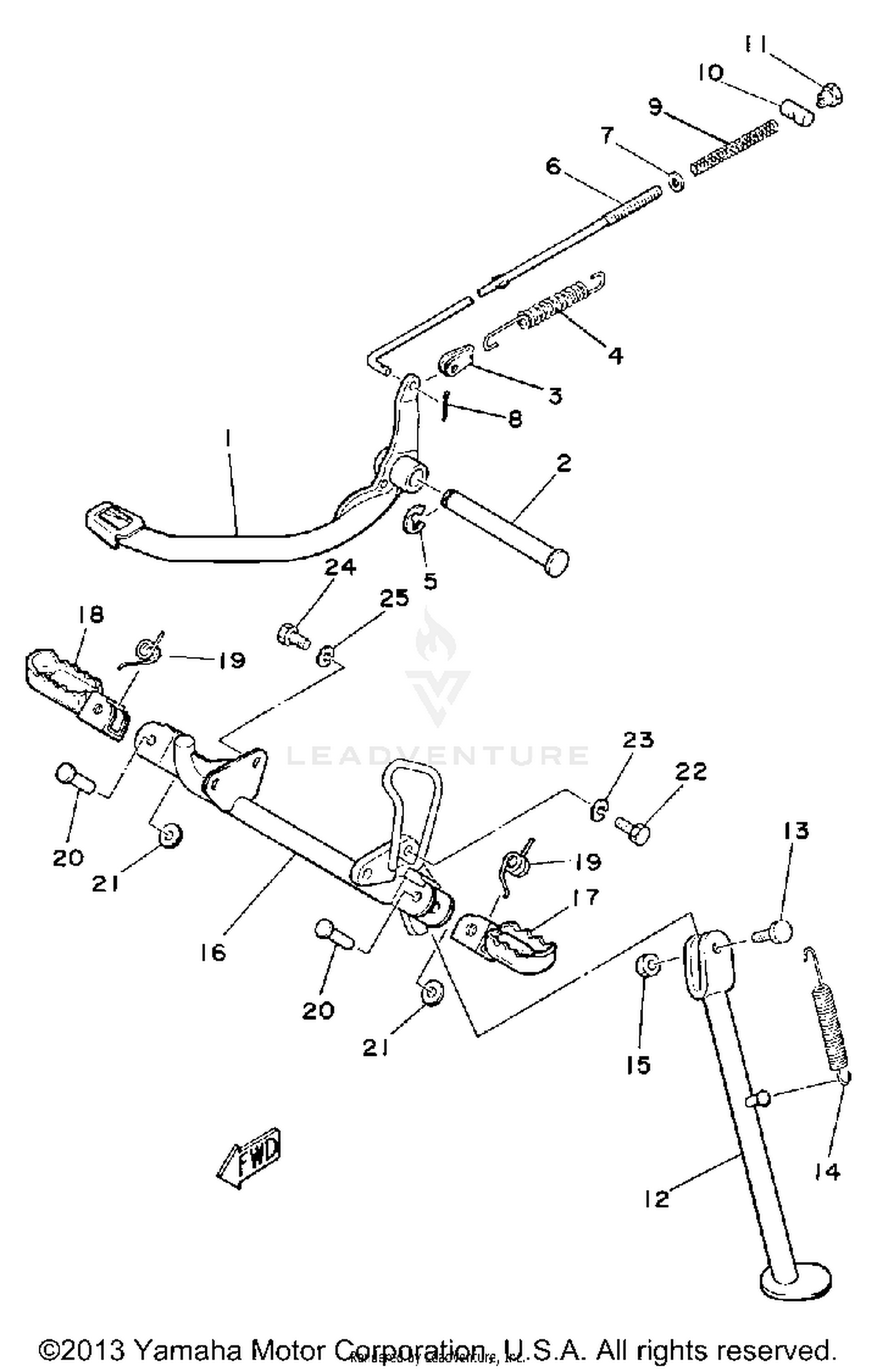

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
538-27211-00-R4
Superseded by 538-27211-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, BRAKE PEDAL
2A3-27212-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
HOOK
1T9-27254-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
SPRING, TENSION
90506-20157-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
CIRCLIP
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
ROD, BRAKE
1T9-27231-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND, SIDE
367-27311-02-R4
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-08031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TENSION
90506-29052-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
FOOTREST
1T9-27451-02-R4
|
$55.99 | ||
|
Unavailable |
|||
|
#17
FOOTREST 1
22W-27411-01-90
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
90243-08006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Unavailable |
|||
