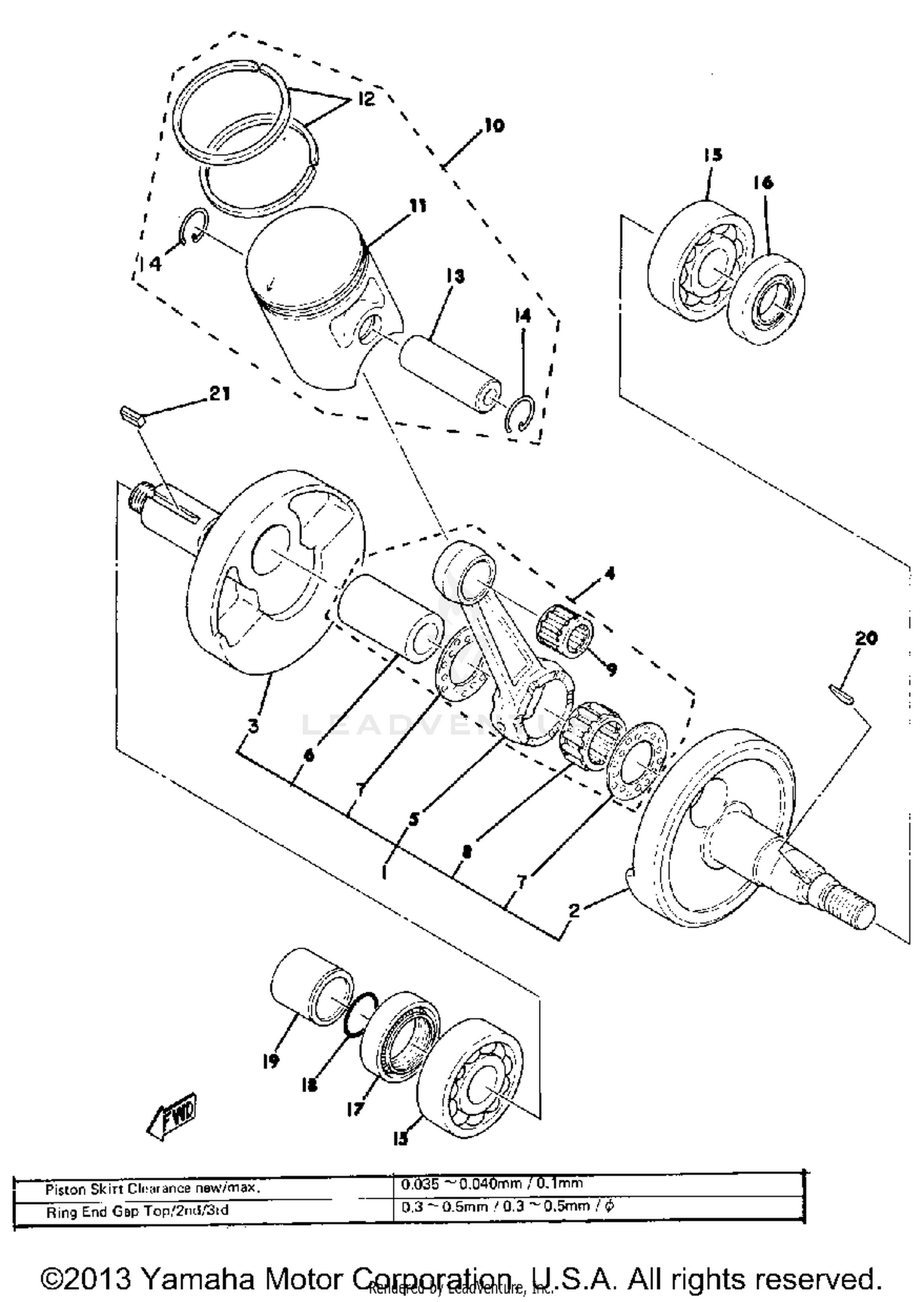

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
558-11400-00-00
|
$273.53 | ||
|
Unavailable |
|||
|
#2
CRANK 1
558-11412-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
558-11422-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#4
CONNECTING ROD ASSEMBLY (558-
1M7-11650-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
1M7-11651-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
5E2-11681-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-22248-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93310-422E7-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93310-21403-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON KIT STD
558-11630-00-00
|
$212.99 | ||
|
Unavailable |
|||
|
#11
PISTON STD
558-11631-01-96
|
$140.99 | ||
|
Unavailable |
|||
|
#12
PISTON RINGSET STD
558-11610-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#13
PIN, PISTON
131-11633-00-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
93450-15023-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-30421-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-20447-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
O-RING
93210-180A6-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COLLAR
90387-20175-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
KEY, WOODRUFF
90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
KEY, STRAIGHT
90282-05005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON KIT 1ST
558-11630-10-00
|
$182.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND
558-11630-20-00
|
$183.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD
558-11630-30-00
|
$168.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH
558-11630-40-00
|
$182.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (52.25MM 1ST
558-11635-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (52.50MM 2ND
558-11636-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (52.75MM 3RD
558-11637-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (53.00MM 4TH
558-11638-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST (1ST O.S.)
558-11610-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND (2ND O.S.)
558-11610-20-00
|
$43.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD (3RD O.S.)
558-11610-30-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH (4TH O.S.)
558-11610-40-00
|
$39.99 | ||
|
Unavailable |
|||
