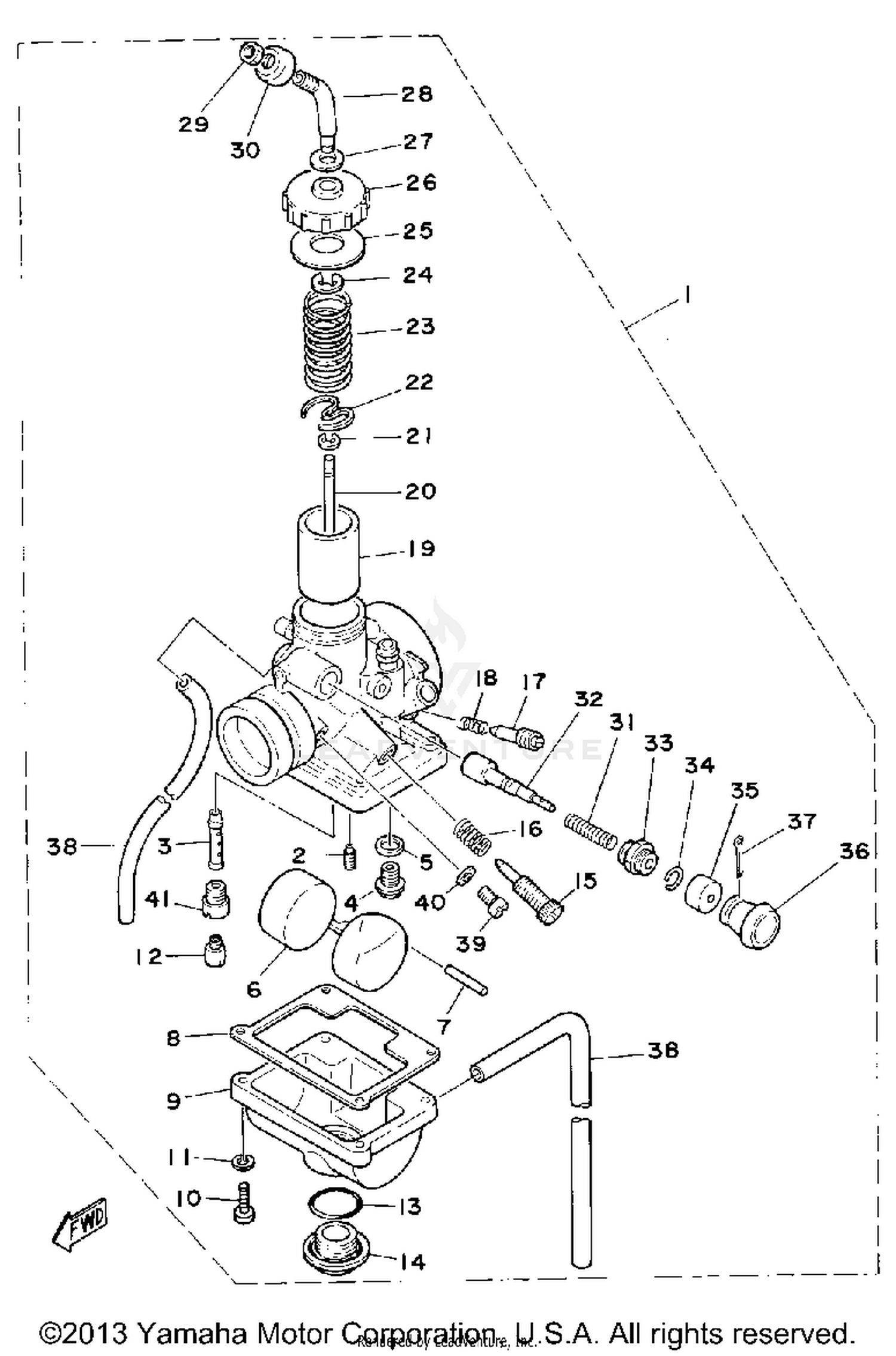

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASY 1
3M1-14101-00-00
Superseded by 3M1-14101-01-00
|
$242.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT (#17.5)
260-14142-17-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NOZZLE, MAIN
2F5-14141-36-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE VALVE ASSEMBLY
353-14190-15-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
127-14195-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
304-14185-00-00
Superseded by 4NR-14185-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
127-14186-00-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BODY, FLOAT CHMBR 1
539-14181-06-00
|
$93.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
JET, MAIN (#130)
137-14143-26-A0
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #125
137-14143-25-A0
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#135)
137-14143-27-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
558-14147-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, SCREW
500-14115-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
AIR SCREW SET
22K-14104-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, AIR ADJUSTING
174-14134-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE,THROTTLE 1
304-14112-20-00
Superseded by 53V-14112-20-00
|
$103.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE
18L-1490J-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT, SPRING
137-14136-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, THRTL VALVE
3X3-14131-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
363-14137-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
193-14126-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TOP, MIXING CHAMBER
1T9-14158-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#27
GASKET
509-14198-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CABLE ADJUST SCREW SET
10X-14106-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CABLE ADJUSTING
127-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, PLUNGER
156-14135-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
COVER, PLUNGER CAP
132-14173-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOLDER
304-14261-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, AIRVENT
23F-14197-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLUG, SCREW
2F5-14115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#40
WASHER
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#41
SETTER, NEEDLE JET
2F5-14145-00-00
|
$17.60 | ||
|
Unavailable |
|||
