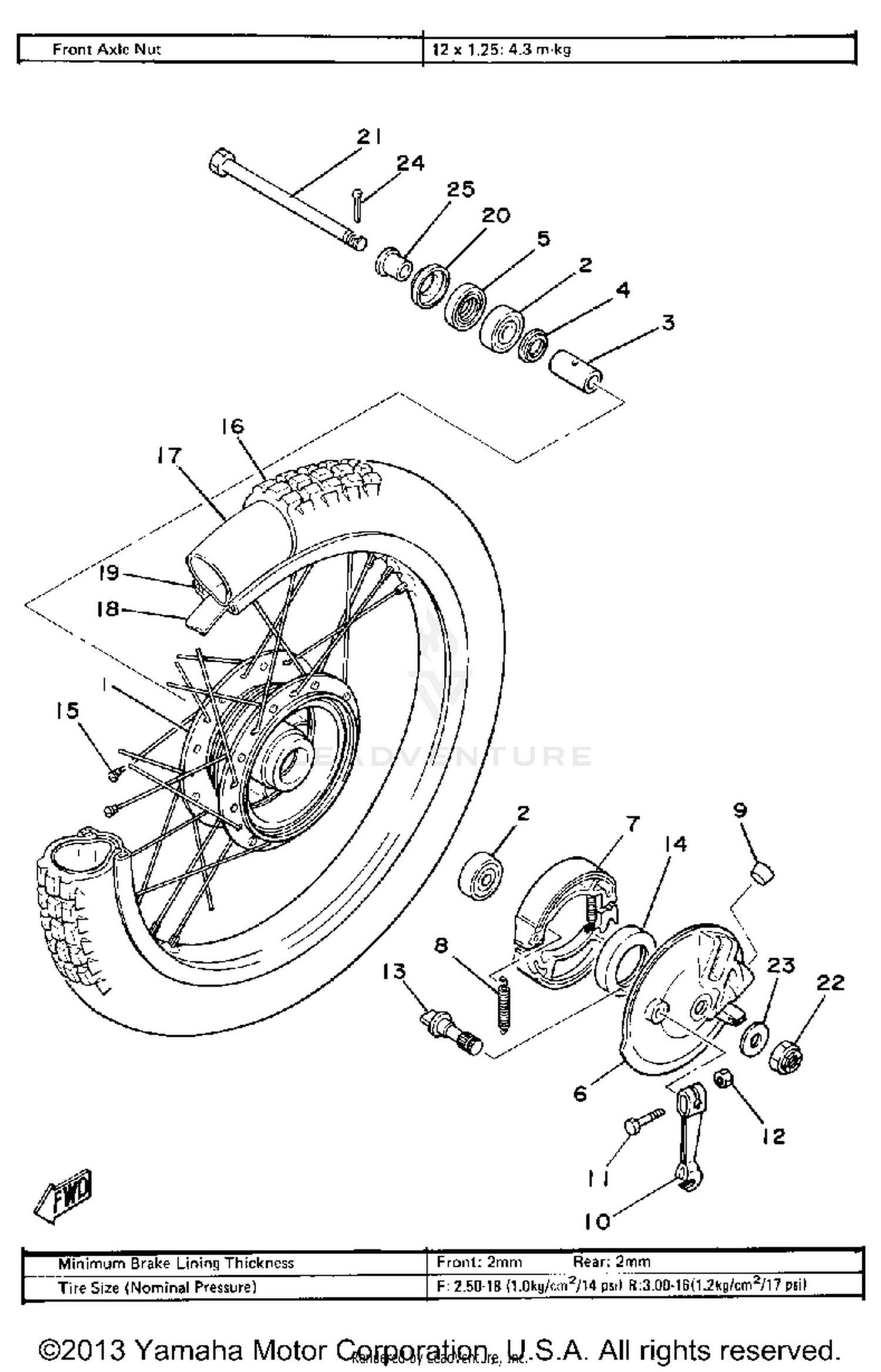

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-98
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLANGE, SPACER
109-25315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-18008-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
3M1-25121-00-98
|
$71.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
10X-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-16150-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-18014-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1
5H0-25155-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-06278-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93105-47007-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPOKE SET, FRONT
276-25104-40-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
250-18 CS C-755-1
94125-18570-00
Superseded by 94125-18570-XX
|
$26.99 | ||
|
Unavailable |
|||
|
#17
TUBE (2.50-18)
94225-18194-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, RIM
94325-18059-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, HUB DUST
481-25118-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH HOLE
90102-12015-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CASTLE
95301-12900-00
Superseded by 90171-12058-00
|
$2.90 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COLLAR
90387-12616-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
