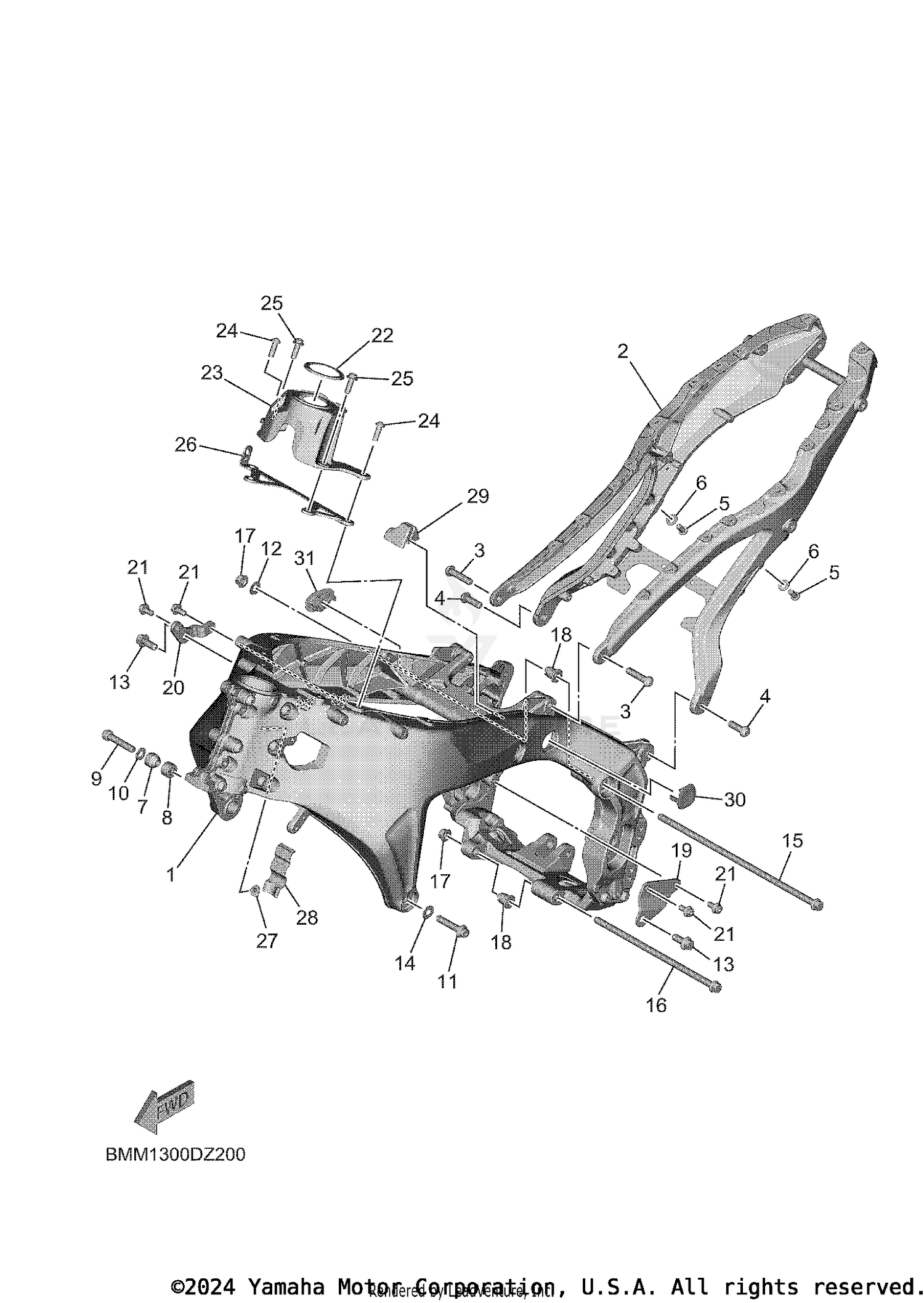

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SUB COMP.
BME-2111B-09-00
|
$1,914.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
BME-21190-09-00
|
$1,117.99 | ||
|
Unavailable |
|||
|
#3
SCREW
90149-10083-00
Superseded by 90149-10084-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
SCREW
90149-10082-00
Superseded by 90149-10044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92017-08016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
92907-08200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, ENGINE MOUNT
2C0-21414-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOSS, ENGINE MOUNT
5VY-21424-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-10050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10013-00
Superseded by 90201-10033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-10043-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER PLATE
90201-10084-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE DEEP RE
95D37-10025-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10075-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT FLANGE
90105-10487-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT FLANGE
90105-10488-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, ENGINE 1
B5U-21315-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, ENGINE 2
B5U-21316-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-085E2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING
BMM-8251J-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#23
STAY 1
BME-2137F-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90109-08246-00
Superseded by 90109-08247-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
BOLT
90110-08126-00
Superseded by 91312-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY 2
BME-2137G-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
PLUG, BLIND
5VX-21289-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
34D-82176-00-00
Superseded by 1HP-H2176-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#29
COVER
B7N-2117F-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER 9
BEA-2117X-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#31
COVER 10
BEA-2117Y-00-00
|
$13.49 | ||
|
Unavailable |
|||
