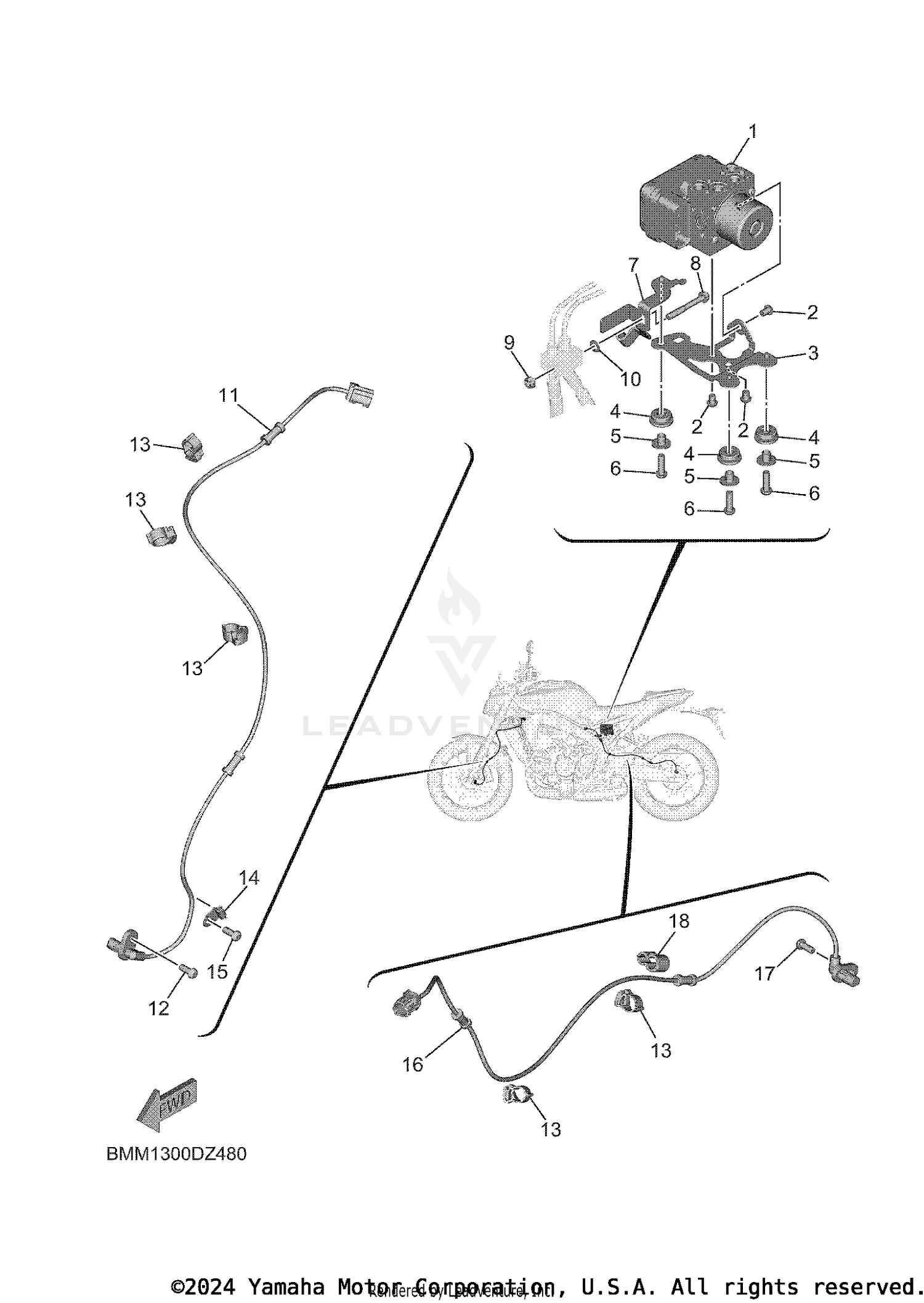

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#8
BOLT, FLANGE
95027-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06034-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SENSOR ASSY, FRONT
BMM-85970-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#12
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP
90464-14010-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE
2CR-23317-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
Unavailable |
|||
|
#16
WHEEL SENSOR ASSY, REAR
BME-85980-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#17
BOLT, BUTTON HEAD
92014-06014-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-10233-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
HYDRAULIC UNIT ASSY
BMM-85930-09-00
|
|||
|
Unavailable |
|||
|
#2
BOLT, HEXAGON SOCK
90111-06204-00
|
$1.55 | ||
|
Unavailable |
|||
|
#3
BRACKET, UNIT
BME-85991-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06160-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92012-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
BME-85542-00-00
|
$19.99 | ||
|
Unavailable |
|||
