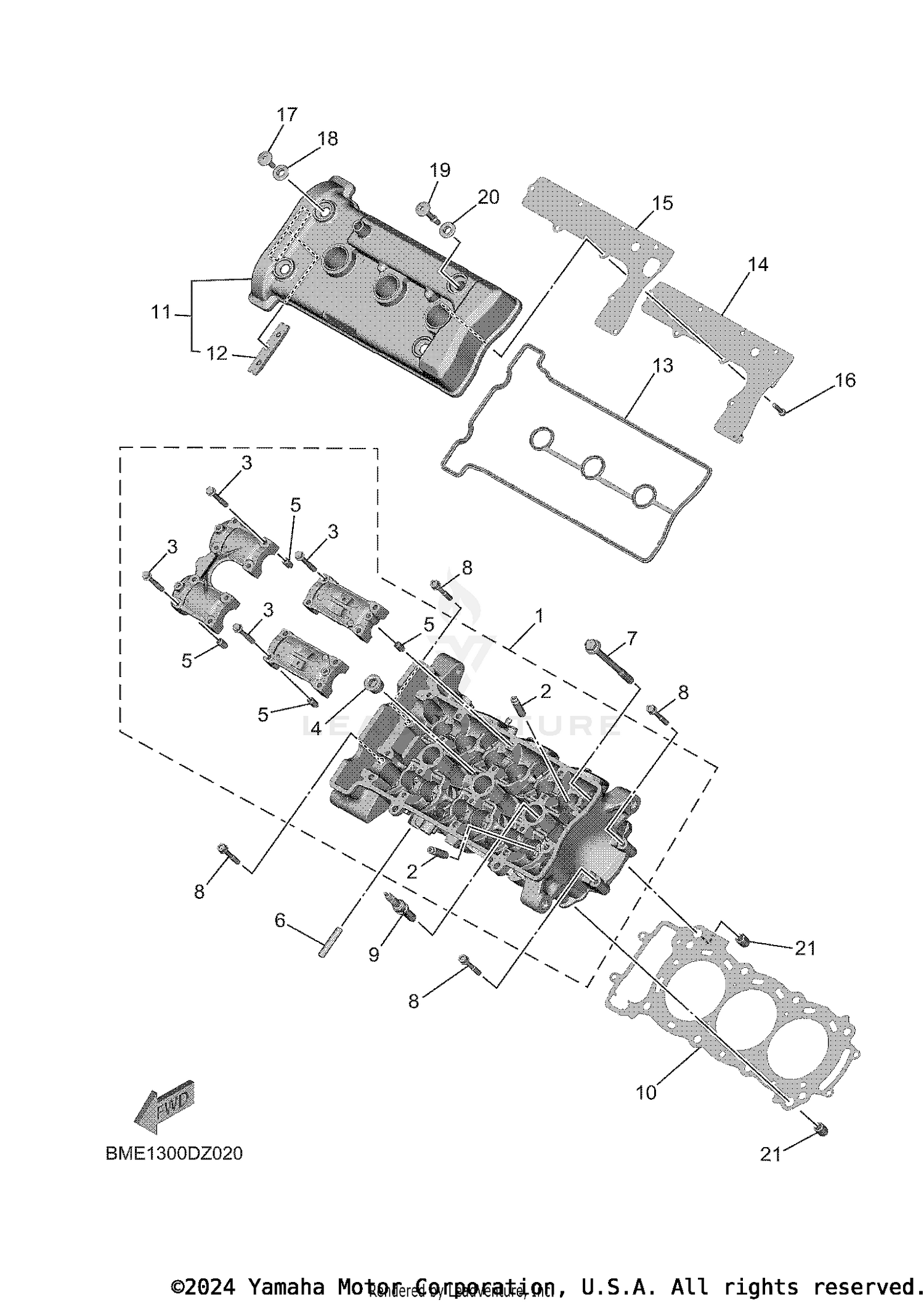

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
BME-11101-09-00
|
$1,369.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
2C0-11133-11-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-18002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT WITH WASHER
90119-09019-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-061F7-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, SPARK
94701-00446-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET CYLINDER HEAD 1
B7N-11181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER CYLINDER HEAD 1
B7N-11191-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, STOPPER 2
5BE-12241-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET, HEAD COVER
B7N-11193-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BREATHER
B7N-11165-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, BREATHER C
B7N-11169-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-05037-00
Superseded by 90149-05038-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT
90109-06271-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#21
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
