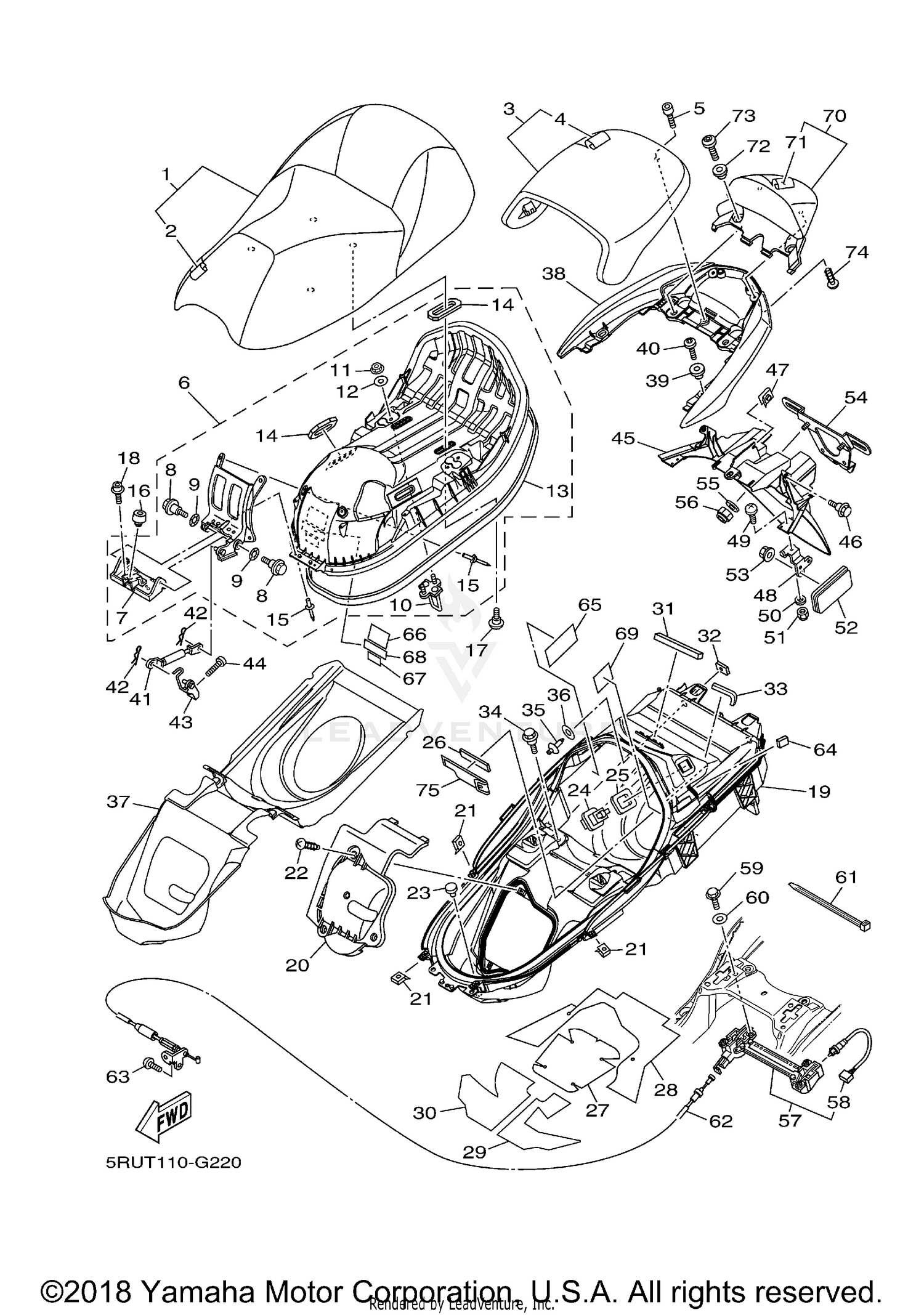

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5RU-24710-20-00
Superseded by 5RU-24710-21-00
|
$426.99 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
5RU-2470F-00-00
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TANDEM SEAT ASSY
5RU-24750-10-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT COVER COMP., 2
5RU-2470H-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06244-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOTTOM PLATE COMP.
5RU-2470E-30-00
|
$363.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HINGE, SEAT
5RU-24726-30-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06214-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, WAVE
90206-10036-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, SEAT
5RU-24728-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
90179-06635-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06036-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
5RU-2475M-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
5RU-24858-10-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET, BLIND
90267-40172-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER
5RU-24768-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-06207-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-08087-00
Superseded by 90110-08097-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOX ASSY
5RU-24704-29-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LID 1
5RU-2473T-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLUG
90338-11125-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
LIGHT, ACCESORY
4HC-84770-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, BOX 2
5RU-2839M-00-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOOK
4KG-2814E-10-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, SEAT
5RU-24737-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, SEAT
5RU-24747-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER
5RU-24854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, 2
5RU-24849-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, 3
5GM-28435-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, SEAT
5RU-24724-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER, SEAT
5RU-24724-20-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-06208-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIVET
90269-05006-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER, SEAT
5RU-24723-00-00
|
$96.89 | ||
|
Unavailable |
|||
|
#38
HANDLE, SEAT
5RU-24773-00-PD
|
$426.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HANDLE, SEAT
5RU-24773-00-P7
|
$391.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-08022-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEX. SOCKET BUTTON
90111-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STOPPER
5RU-2478G-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90468-18121-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET, SEAT LEVER 1
5RU-2475H-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, BUTTON HEAD
92012-08020-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
GUARD, MUD
5RU-21629-00-00
Superseded by 5RU-21629-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#46
BOLT
90109-06208-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
NUT, SPRING
90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
BRACKET, REFLECTOR
5RU-21641-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW
90149-04278-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
WASHER, PLATE
90201-04018-00
Superseded by 90201-044H9-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT, U
95602-04100-00
Superseded by 95617-04100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BRACKET, LICENSE
5RU-84751-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90201-06032-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
SEAT LOCK ASSY
5RU-24780-00-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SWITCH ASSY
5RU-81860-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
BOLT, FLANGE
95822-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
WASHER, PLATE
90201-06077-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
CABLE, SEAT LOCK
5RU-2478E-10-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, BUTTON HEAD
92012-05010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
DAMPER 1
3TB-28217-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
PLATE, EPA (CALIFORNIA)
5RU-2176P-30-00
|
$3.19 | ||
|
Unavailable |
|||
|
#66
LABEL, TIRE
5RU-21668-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#67
LABEL, CAUTION
3LD-24877-A0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
LABEL, CAUTION
3JJ-28446-A1-00
Superseded by 3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#69
PLATE, ROUTING 2
5RU-21686-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
SEAT BACK ASSY
5RU-24790-20-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
COVER, SEAT BACK
5RU-24791-20-00
Superseded by 5RU-24791-21-00
|
$66.99 | ||
|
Unavailable |
|||
|
#72
COLLAR
90387-08022-00
|
$11.49 | ||
|
Unavailable |
|||
|
#73
BOLT, HEX. SOCKET BUTTON
90111-08061-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#74
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#75
TOOL KIT
5RU-28100-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
