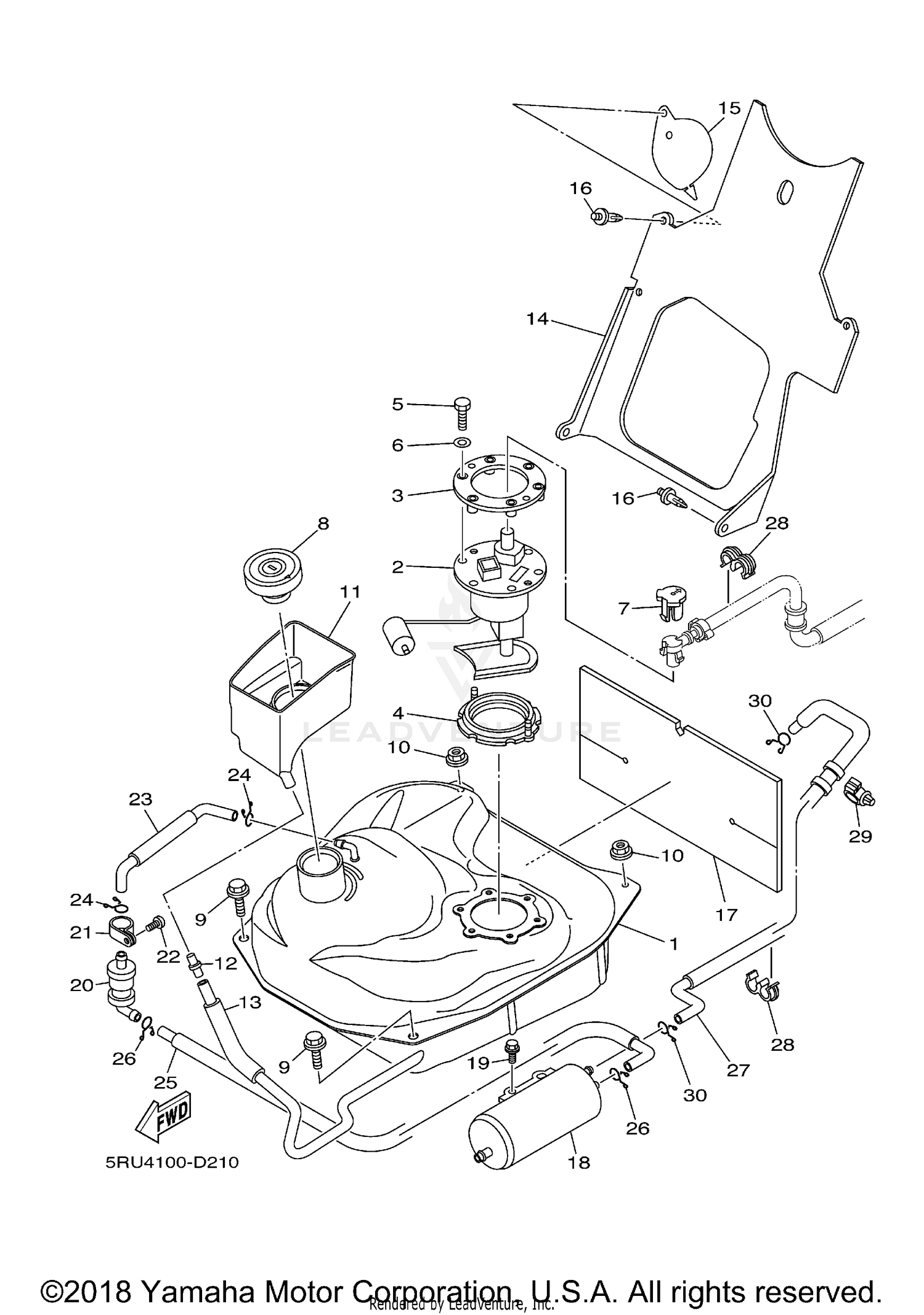

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5RU-24110-10-00
|
$560.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL PUMP COMP.
5RU-13907-02-00
Superseded by 5RU-13907-12-00
|
$587.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
5CA-24491-00-00
Superseded by 4B5-24491-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL
5CA-2414G-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP 1
5VU-24135-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP ASSY
54K-24602-00-00
Superseded by 54K-24602-10-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95822-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, FILLER
5RU-2414A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, CONNECTOR
4JP-21753-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
5RU-24312-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, PLATE 1
5RU-2414H-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,2
5RU-2475X-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-07008-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, PLATE 2
5RU-2414J-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CANISTER ASSY
5RU-24170-00-00
|
$457.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#20
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW,BINDING
98902-05012-00
Superseded by 98904-05012-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 3
5RU-24313-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIPE 5
5RU-24315-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIPE 4
5RU-24314-10-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-13194-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
