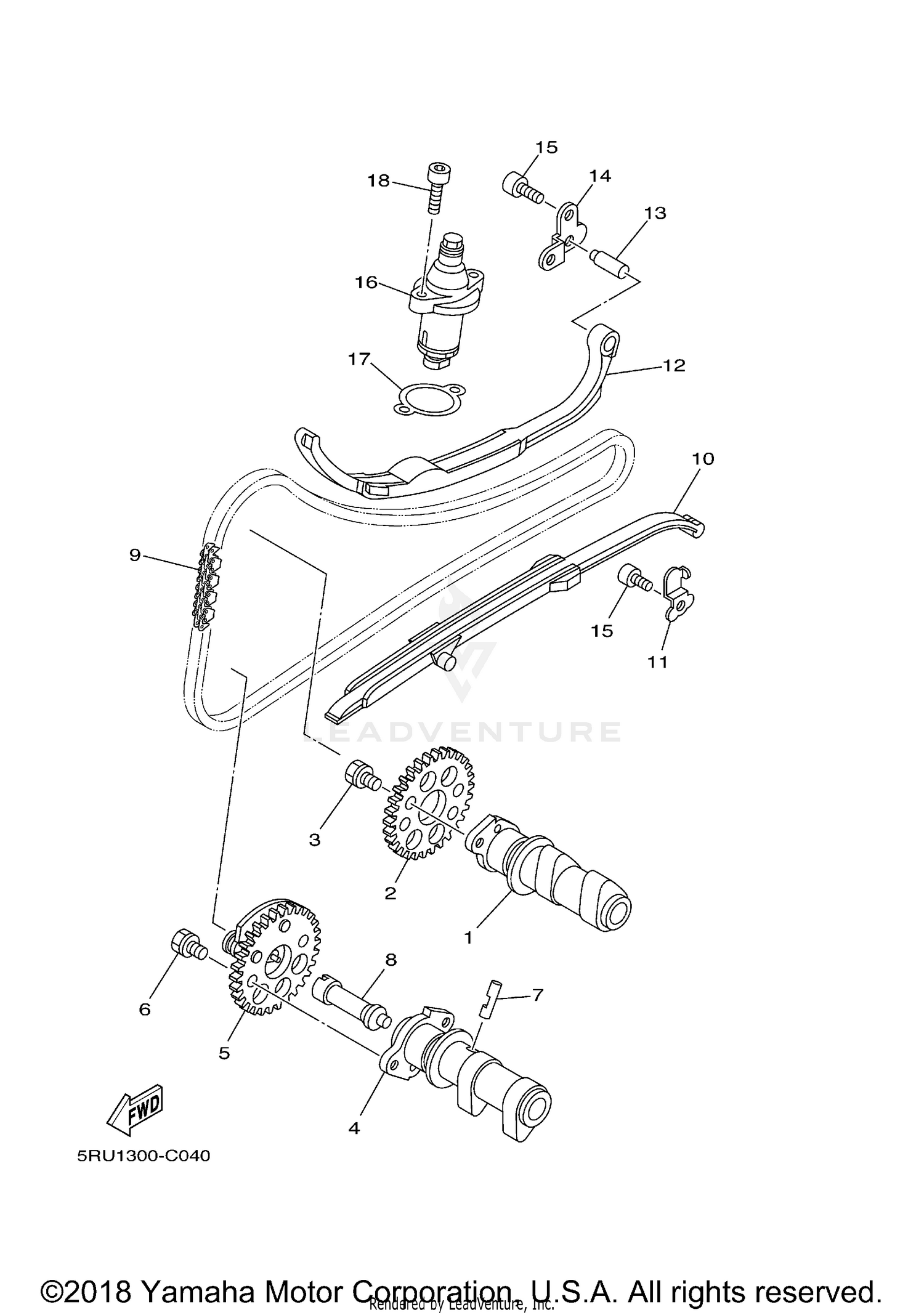

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
5RU-12171-00-00
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
5RU-12176-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-07007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAMSHAFT 2
5RU-12181-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DECOMPRESSION ASSY
5RU-12280-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-07007-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
CAM, DECOMPRESSION
5TA-12288-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, DECOMPRESSION SPRING
5VK-12290-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN
94582-18136-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, STOPPER 1
5RU-12231-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, GUIDE STOPPER 1
5RU-12233-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, STOPPER 2
5RU-12241-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT 2
5RU-12257-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, GUIDE STOPPER 2
5RU-12243-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90110-06187-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TENSIONER ASSY, CAM CHAIN
5GJ-12210-10-00
Superseded by 1B7-12210-01-00
|
$166.99 | ||
|
Unavailable |
|||
|
#17
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
