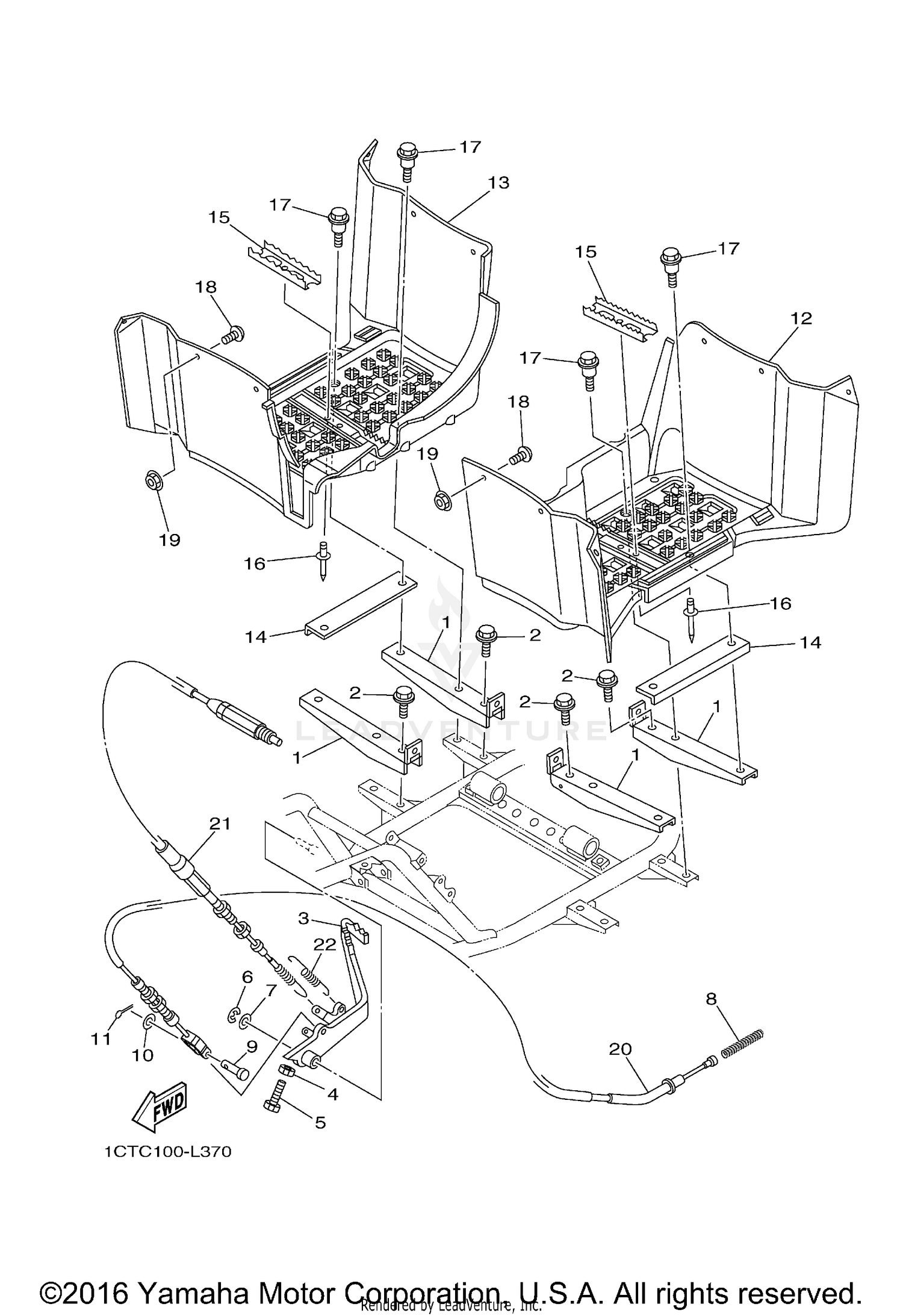

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FOOTREST 1
5ND-F7471-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, BRAKE
1CT-F7211-00-00
Superseded by 1CT-F7211-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#4
NUT
95312-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95812-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CIRCLIP
93430-10015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-10782-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
90240-06076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER 1
5ND-F7453-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER 2
5ND-F7463-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE 1
5ND-F7445-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM 1
5UH-F741A-10-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET, BLIND
90267-489U9-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
90109-06262-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-05034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE, BRAKE
1CT-F6361-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, CONTROL 2
5GH-2637F-10-00
Superseded by 5GH-2637F-11-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TENSION
90506-20010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
