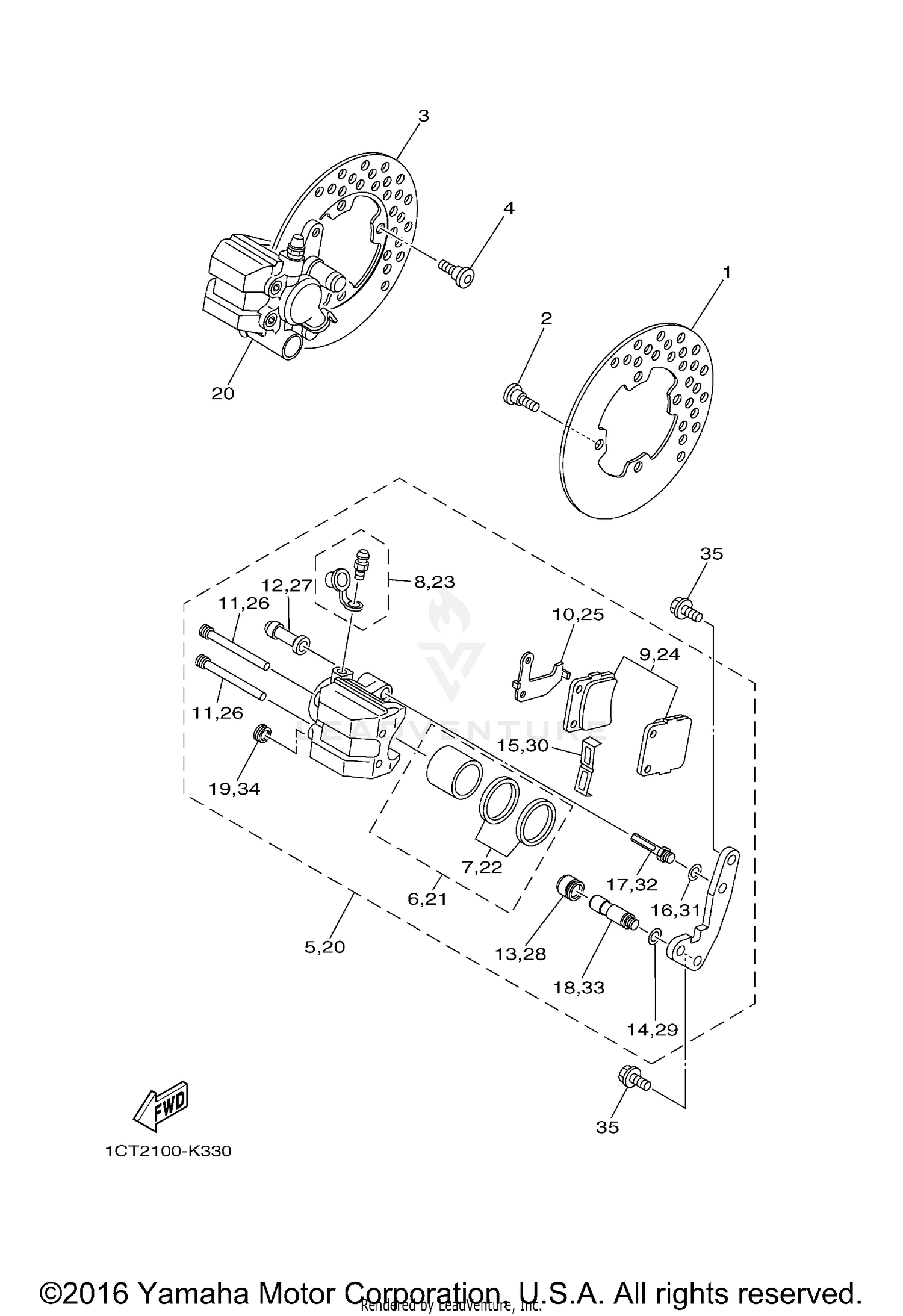

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
5ND-F582T-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-08082-00
Superseded by 90109-08087-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISC, BRAKE (LEFT)
5ND-F582T-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90109-08082-00
Superseded by 90109-08087-00
|
$3.15 | ||
|
Unavailable |
|||
|
#5
CALIPER ASSY (LEFT)
3GD-2580T-01-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3GD-W0047-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT
3GD-W0045-01-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SHIM, CALIPER
3GD-25827-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PAD
3GD-25933-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOOT, CALIPER
1UY-25917-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAD
1UY-25934-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUPPORT, PAD
1UY-25919-51-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
1UY-25938-51-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
1UY-25926-51-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SLIDE
3GD-25914-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG
3GD-25916-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CALIPER ASSY (RIGHT)
3GD-2580U-01-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#22
CALIPER SEAL KIT
3GD-W0047-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#23
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#24
BRAKE PAD KIT
3GD-W0045-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#25
SHIM, CALIPER
3GD-25828-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, PAD
3GD-25933-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#27
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
Unavailable |
|||
|
#28
BOOT, CALIPER
1UY-25917-51-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
SPRING, PAD
1UY-25934-51-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
SUPPORT, PAD
1UY-25919-51-00
|
$24.99 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
1UY-25938-51-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
BOLT
1UY-25926-51-00
|
$4.85 | ||
|
Unavailable |
|||
|
#33
PIN, SLIDE
3GD-25914-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#34
PLUG
3GD-25916-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
90105-08184-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
