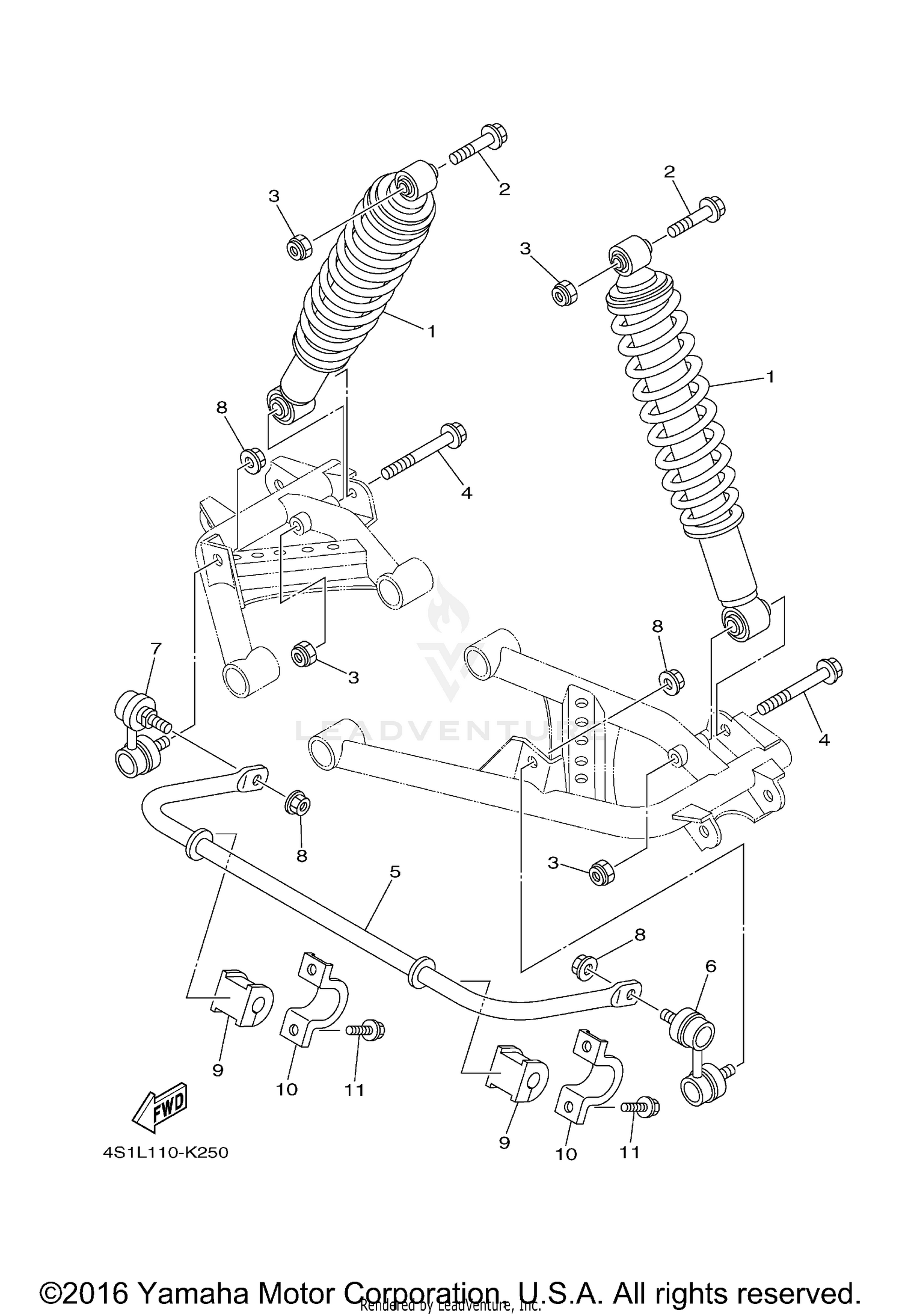

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
1CT-F2210-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-10841-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-10202-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, STABILIZER
1CT-G7491-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, STABILIZER 1
16B-2385L-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, STABILIZER 2
16B-2385M-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, STABILIZER FRONT
1D9-F386G-00-00
Superseded by 1D9-F386G-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, STABILIZER FRONT
1D9-F386H-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
