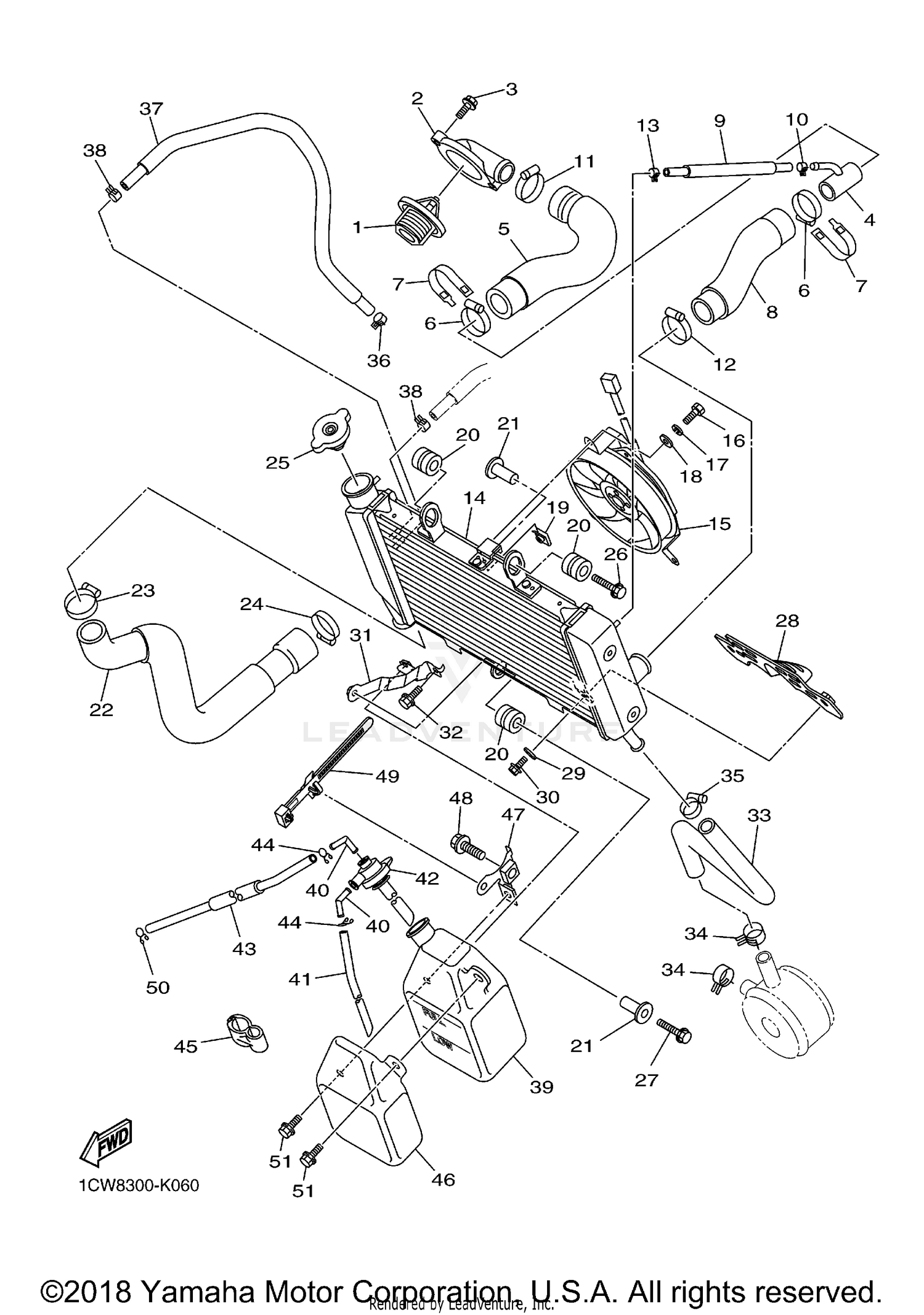

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
5SL-12410-00-00
Superseded by 5SL-12410-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, THERMOSTAT
5VX-12413-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06164-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
JOINT, HOSE 2
20S-12582-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE 3
20S-12578-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90450-32003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER 2
20S-1246E-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE 7
20S-12551-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-12012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE
90450-32006-00
Superseded by 90460-20190-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-32003-00
|
$18.49 | ||
|
Unavailable |
|||
|
#13
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
RADIATOR COMP
20S-12461-01-00
|
$608.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BLOWER ASSY
20S-12405-20-00
Superseded by 20S-12405-21-00
|
$348.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97307-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLATE
1AA-12535-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR
90387-0614M-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE 4
20S-12579-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90450-32003-00
|
$18.49 | ||
|
Unavailable |
|||
|
#24
CLAMP, HOSE
90450-32006-00
Superseded by 90460-20190-00
|
$18.49 | ||
|
Unavailable |
|||
|
#25
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE
95802-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PLATE
20S-12535-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-06025-00
Superseded by 90201-064J1-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95824-06012-00
Superseded by 95814-06012-00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET 1
20S-1244E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95822-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
HOSE 6
20S-12589-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-200A0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
HOSE
90445-12009-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
TANK, RECOVERY
4P5-21871-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
ELBOW
26H-21828-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE
90445-081F2-00
Superseded by 90445-08684-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CAP
20S-21875-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE
90445-08025-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-10233-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
COVER
4P5-2172W-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BRACKET, RECOVERY TANK
4P5-21873-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
95822-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-07012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#51
BOLT, FLANGE
90105-060A6-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
