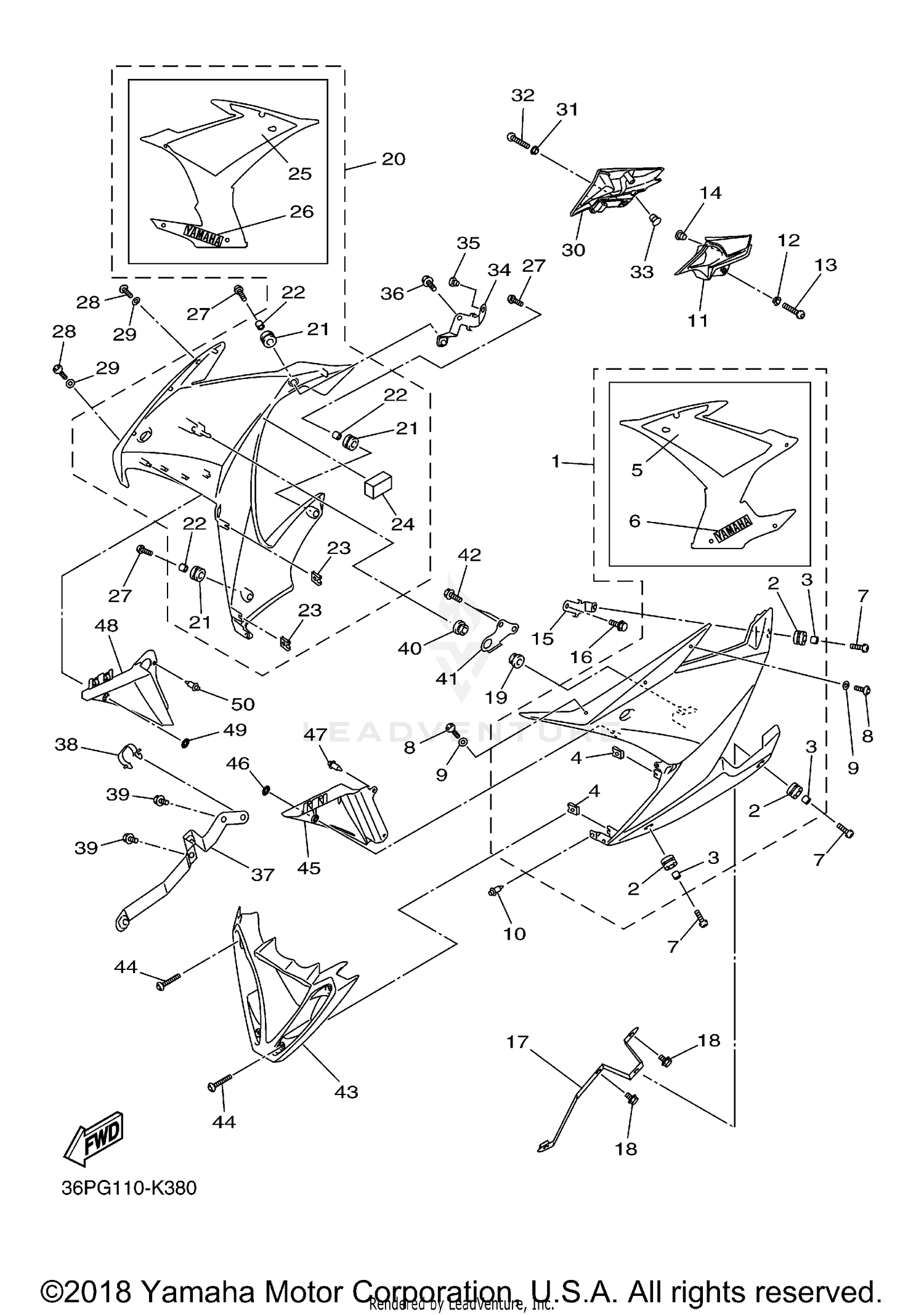

Cowling 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL ASSY 1
36P-W283U-00-P1
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06260-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GRAPHIC SET 1
36P-28391-30-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, YAMAHA
36P-2153E-10-00
Superseded by 99247-00180-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
MOLE, SIDE COVER 3
36P-2171N-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06130-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06302-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
PLUG
90338-07043-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 7
36P-2833A-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95802-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BRACKET 1
36P-2836A-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-060E9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PANEL ASSY 2
36P-W283V-00-P1
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-14003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-06260-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#24
PLATE 1
2C0-2162G-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
GRAPHIC SET 2
36P-28392-30-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
EMBLEM, YAMAHA
36P-2153E-10-00
Superseded by 99247-00180-00
|
$16.49 | ||
|
Unavailable |
|||
|
#27
SCREW
90149-06302-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
MOLE, SIDE COVER 4
36P-2171R-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-06130-00
|
$10.49 | ||
|
Unavailable |
|||
|
#32
SCREW
90149-06302-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
PLUG
90338-07043-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
BRACKET 8
36P-2833E-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLUG
90338-07157-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95802-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#37
BRACKET 2
36P-2836E-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-24230-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90109-060E9-00
|
$11.49 | ||
|
Unavailable |
|||
|
#40
GROMMET
90480-01558-00
|
$4.65 | ||
|
Unavailable |
|||
|
#41
STAY, 4
20S-21843-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#43
COVER, UNDER
36P-22863-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-05034-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PANEL, INNER 4
36P-2836N-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#47
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#48
PANEL, INNER 5
36P-2836R-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Unavailable |
|||
|
#50
RIVET
90269-06008-00
|
$9.49 | ||
|
Unavailable |
|||
