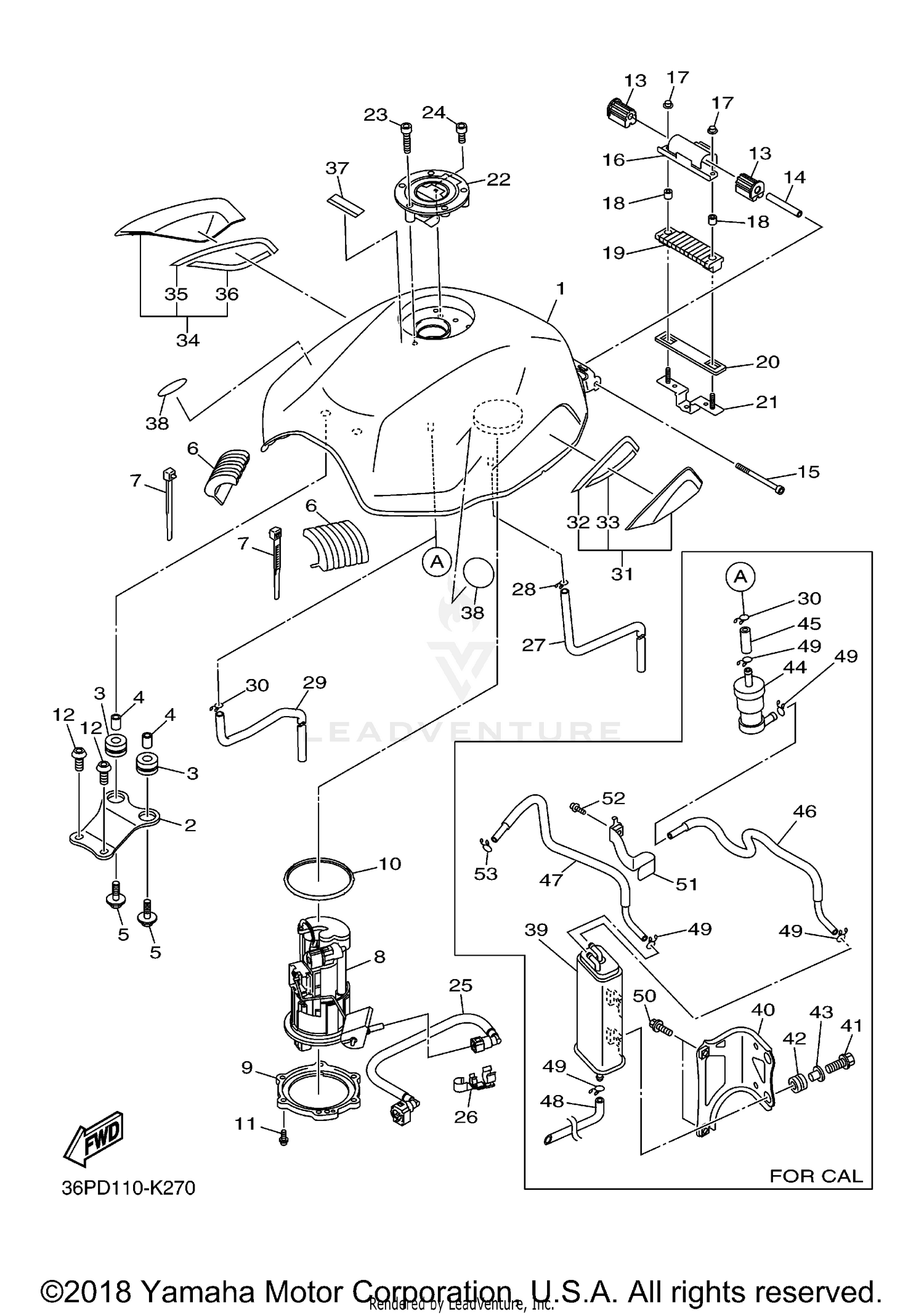

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK ASSY
20S-Y2410-00-07
Superseded by 20S-W2410-01-07
|
$1,125.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FUEL TANK 1
20S-24191-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-16010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06068-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-06264-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
20S-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90465-15011-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL PUMP COMP.
20S-13907-00-00
Superseded by 20S-13907-03-00
|
$555.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FUEL PUMP
13S-24491-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
19B-24486-00-00
Superseded by 19B-24486-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-06127-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
5VX-24181-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-061W6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91312-06090-00
Superseded by 91314-06090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRACKET, TANK FITTING
20S-2413Y-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COLLAR
90387-06299-00
Superseded by 90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DAMPER, LOCATING 1
20S-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, PLATE 1
20S-2414H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
20S-21296-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSY
39P-24602-00-00
|
$278.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91317-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#25
PIPE, FUEL 1
5VX-13971-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-16005-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE (L650)
90445-106J2-00
Superseded by 90445-105K7-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
HOSE (L650)
90445-106J2-00
Superseded by 90445-105K7-00
|
$17.49 | ||
|
Unavailable |
|||
|
#30
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
TANK SIDE COVER ASSY 1
20S-24106-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
TAPE 1
20S-2173T-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
TAPE 1
20S-2173T-20-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
TANK SIDE COVER ASSY 2
20S-24108-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
TAPE 2
20S-2173U-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
TAPE 2
20S-2173U-20-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
LABEL, CAUTION
5GK-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
EMBLEM
5JW-2413B-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CANISTER ASSY
5C7-24170-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET, CANISTOR
36P-2419F-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE
95802-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
GROMMET
90480-13163-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-062L2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE (L30)
90445-11065-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 4
36P-24314-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#47
PIPE
36P-14466-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE 5
36P-24315-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#49
CLIP
90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#50
BOLT, FLANGE
95802-08016-00
Superseded by 95814-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
GUIDE, PIPE
36P-24667-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#52
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
CLIP
90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
