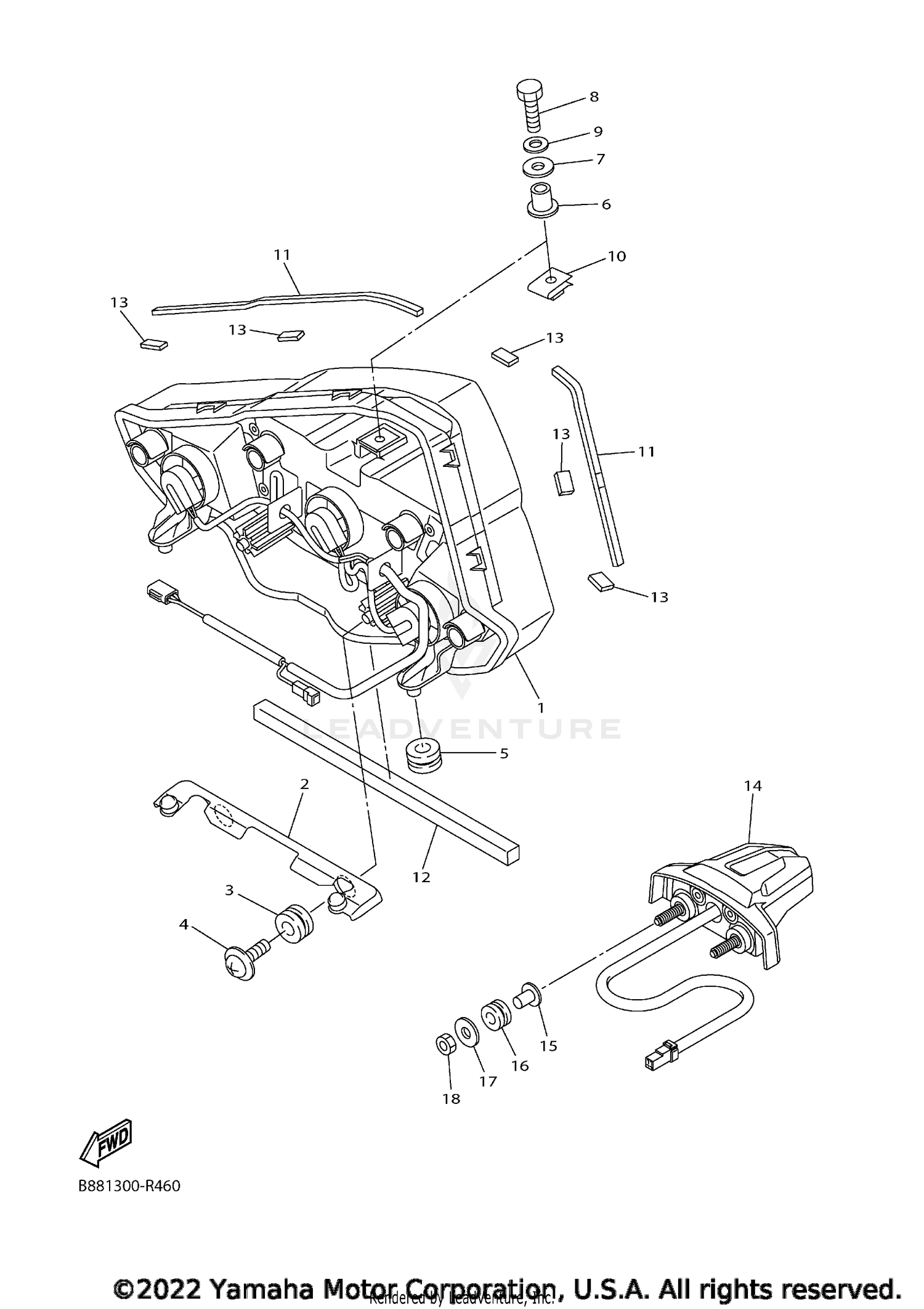

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
B88-84710-00-00
|
$788.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, TAILLIGHT
3P6-2117E-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-18276-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW, TAPPING
90164-05001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
DAMPER
4XV-83513-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06035-00
Superseded by 90201-06013-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT
97012-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, SPRING
90183-060A7-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, PLATE
90520-05013-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, SEAT
2D1-24737-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER 8
2C0-2847N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LICENSE LIGHT UNIT ASSY
B88-84745-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-05003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-11008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-05043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
