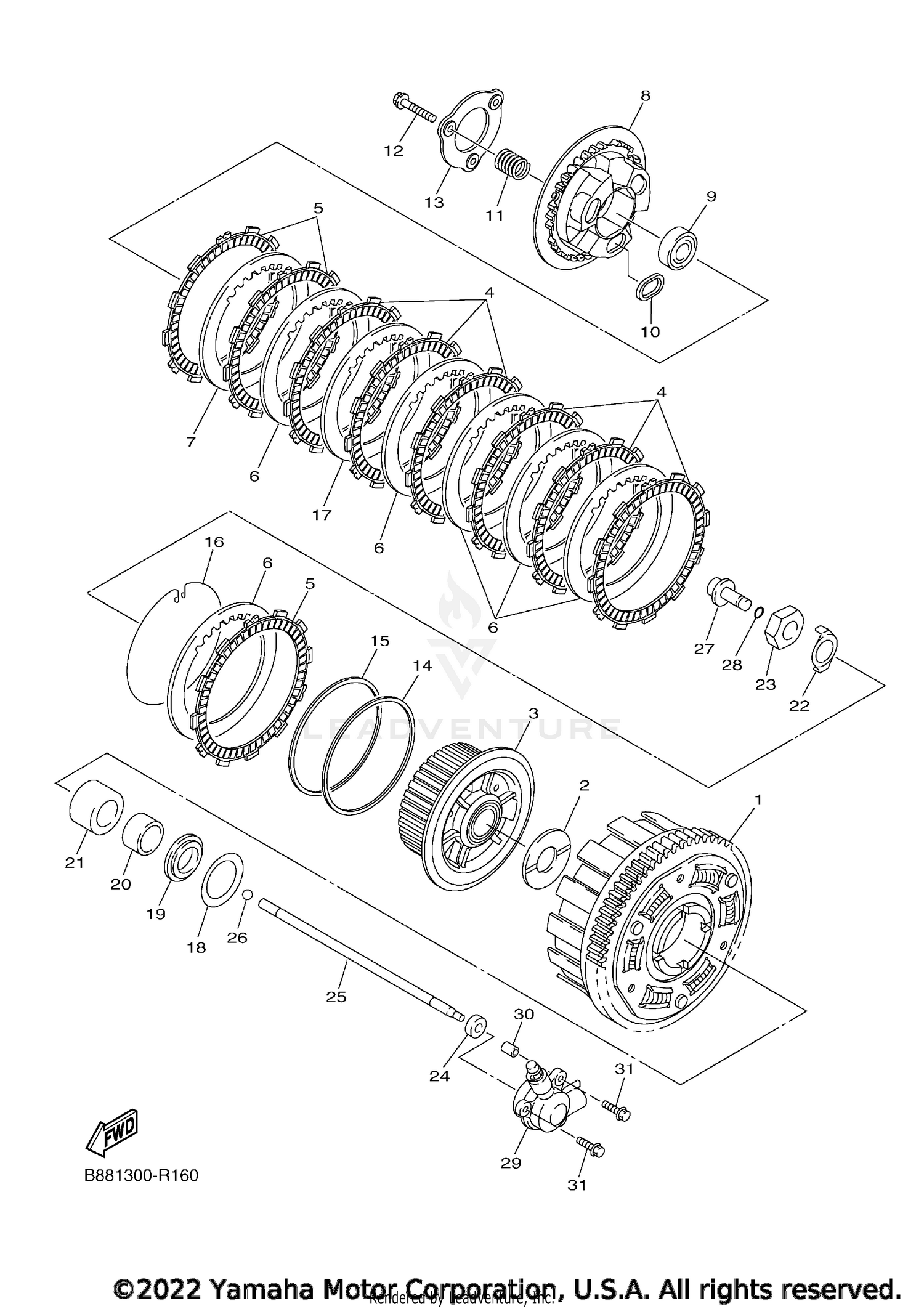

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
5JW-16150-00-00
|
$955.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
5JW-16154-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
B88-16371-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
1D7-16321-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION 2
27D-16331-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
1D7-16325-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
B88-16351-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLATE, SEAT
1D7-16384-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
B88-16173-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPRING
2CR-16337-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, PRESSURE 2
1TD-16352-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, SEAT
36Y-16384-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPRING, CLUTCH BOSS
36Y-16383-00-00
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RING, CLUTCH BOSS
2H7-16385-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, CLUTCH 1
47X-16324-00-00
Superseded by 47X-16324-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#17
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
PLATE, CLUTCH 1
2H7-16324-00-00
Superseded by 2H7-16324-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#18
SPRING, SHOCK ABSORBER
3P6-16587-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER 3
3P6-16183-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-28002-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER 1
B88-16181-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK
90215-25218-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT
90170-20323-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-08061-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
ROD, PUSH 2
3P6-16357-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
ROD, PUSH 1
4KG-16356-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PUSH LEVER COMP.
5JW-16381-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
