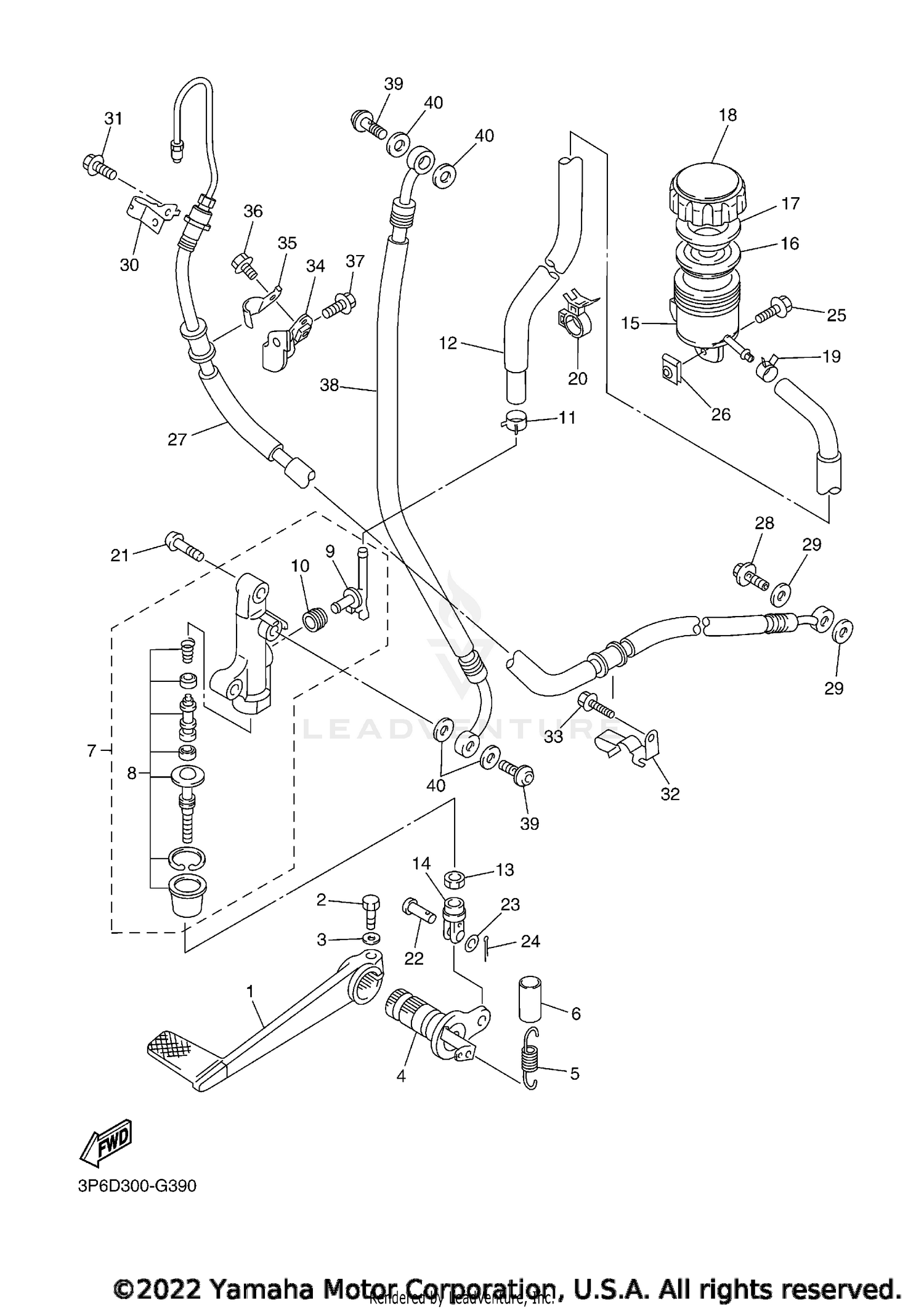

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5JW-27211-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-06468-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLAIN (646)
92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SHAFT, BRAKE PEDAL
1MC-27212-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-20030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE
90446-15386-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
3P6-2583V-00-00
Superseded by 3P6-2583V-01-00
|
$221.99 | ||
|
Unavailable |
|||
|
#8
CYLINDER KIT, MASTER
3P6-W0042-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
5VS-2582A-00-00
Superseded by 5VS-2582A-01-00
|
$3.65 | ||
|
Unavailable |
|||
|
#10
O-RING
4BP-2585F-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-090A0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, RESERVOIR
3P6-25895-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-08010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT
5SL-27222-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, RESERVOIR
3P6-25894-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DIAPHRAGM, RESERVOIR
5VY-25854-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, DIAPHRAGM
5VY-25855-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RESERVOIR
5VY-25852-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-090A0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
CLAMP
90464-15192-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92012-08030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, CLEVIS
91701-06018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-05007-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING
90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HOSE, BRAKE 5
3P6-2581K-20-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, UNION
90401-10020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, BRAKE HOSE 6
3P6-2588G-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOLDER, BRAKE HOSE 2
3P6-25876-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
HOLDER, BRAKE HOSE 5
2PD-2588F-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, BRAKE HOSE 6
5VS-2588G-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE
95802-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HOSE, BRAKE 4
3P6-2581J-20-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, UNION
90401-10020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#40
GASKET
90430-10005-00
|
$9.49 | ||
|
Unavailable |
|||
