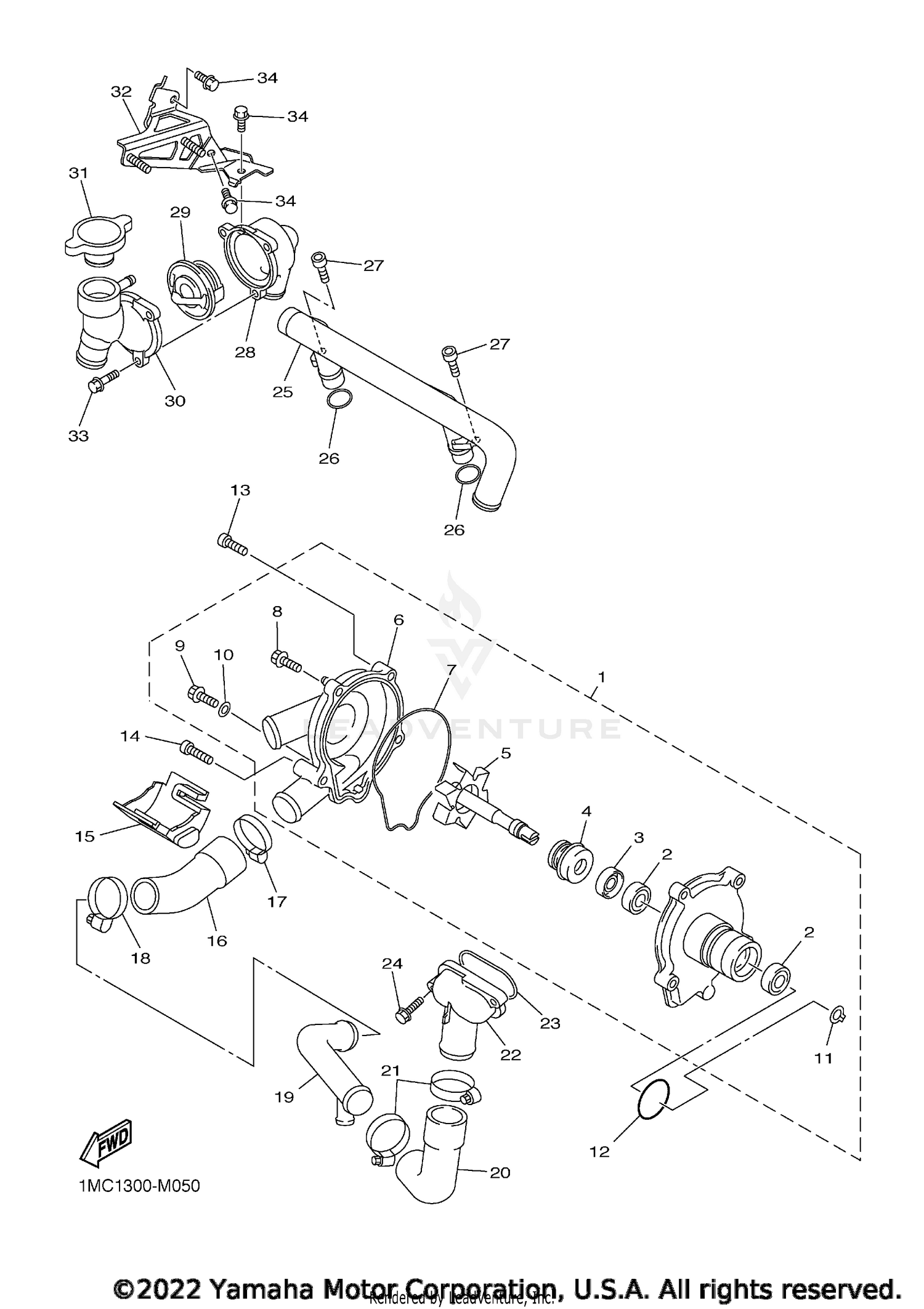

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
1MC-12420-01-00
|
$320.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL SEAL
93102-12372-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
5VK-12438-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
5JW-12450-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, HOUSING
1MC-12422-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
5JW-12439-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06065-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING
93210-33133-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06336-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06337-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER
1MC-12437-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE 1
5JW-12576-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-38003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-38040-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, HOSE 1
3P6-12581-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE 2
5JW-12577-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90450-38040-00
|
$19.49 | ||
|
Unavailable |
|||
|
#22
JOINT 1
5JW-12469-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-47675-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-06082-00
Superseded by 95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE 1
1MC-12481-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-18417-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOUSING, THERMOSTAT
3P6-12417-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
THERMOSTAT ASSY
1MC-12410-00-00
Superseded by 1MC-12410-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#30
SUPPORT, FILLER NECK
3P6-12591-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, RADIATOR
5JW-12462-00-00
Superseded by 1B3-12462-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 1
1MC-1244E-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
