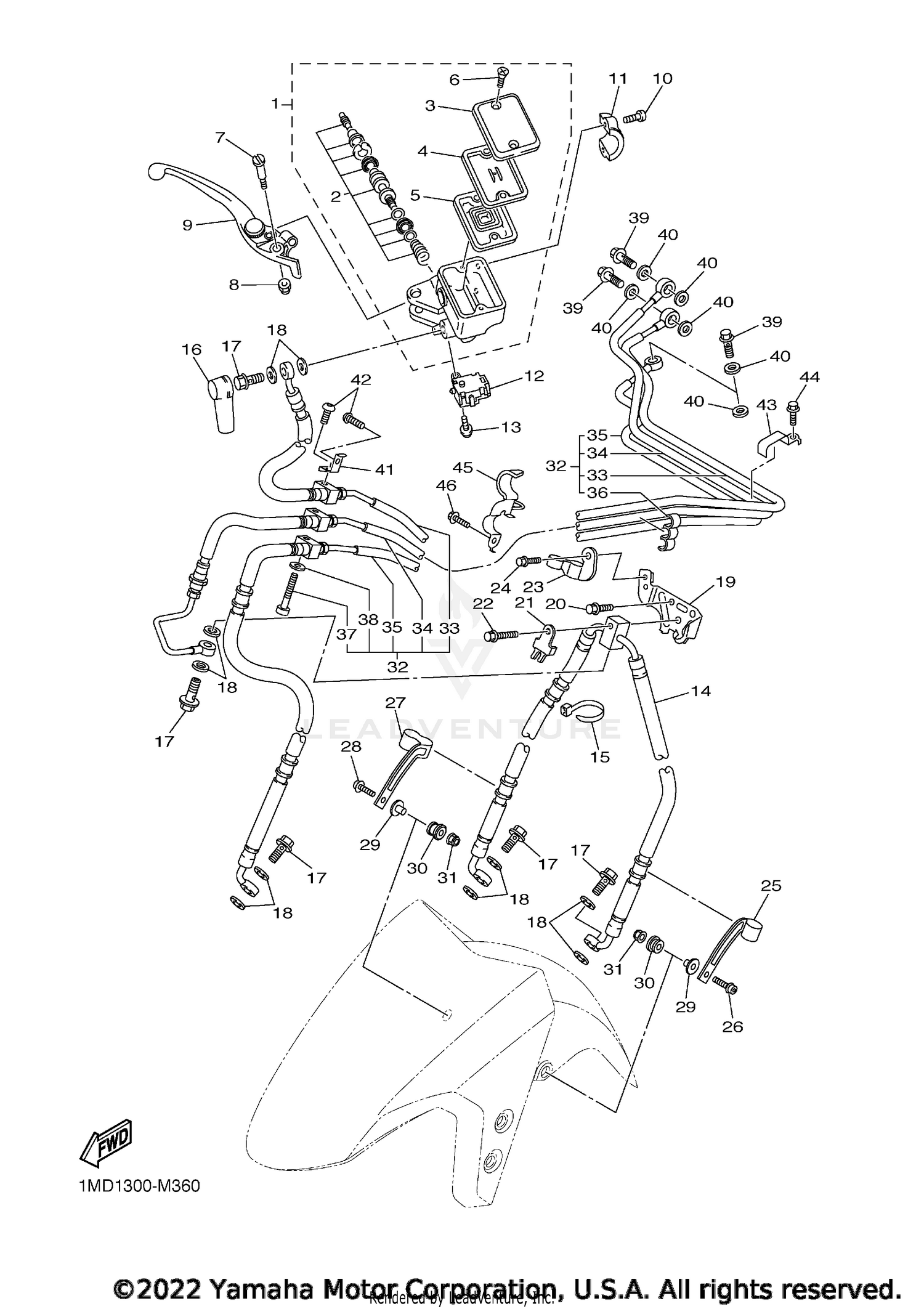

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY 2
1MC-2580A-00-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
1MC-25807-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
5VS-25852-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
5VS-25855-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
20S-25854-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
5VS-2589H-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
5VS-2589F-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, S/L
95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LEVER 2
5VS-83922-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
5VS-26332-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CYLINDER
2D2-25867-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH ASSY
1MC-83980-00-00
Superseded by 1MC-83980-01-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD WITH WASHER
97602-04214-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
1MD-25872-00-00
Superseded by 90179-22032-00
|
$17.49 | ||
|
Unavailable |
|||
|
#15
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, MASTER CYLINDER
4L0-25862-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE
3P6-25886-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SLEEVE, CALIPER
5VS-25843-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE
3P6-2587A-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
HOLDER, BRAKE HOSE 1
1MD-25875-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90109-06031-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, BRAKE HOSE 2
1MD-25876-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-06031-00
|
$2.85 | ||
|
Unavailable |
|||
|
#29
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
GROMMET
90480-12072-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BRAKE HOSE ASSY
1MD-2584A-00-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
. .HOSE, BRAKE
3P6-2584B-10-00
Superseded by 3P6-2584B-11-00
|
$187.99 | ||
|
Unavailable |
|||
|
#34
. .HOSE, BRAKE
3P6-2584C-10-00
Superseded by 3P6-2584C-11-00
|
$252.99 | ||
|
Unavailable |
|||
|
#35
HOSE, BRAKE
1MD-2584D-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-07003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
90110-06149-00
Superseded by 91317-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT, UNION
90401-10020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#40
GASKET
90430-10005-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
HOLDER, BRAKE HOSE 1
3P6-25875-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
HOLDER 2
3P6-2639F-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Unavailable |
|||
|
#45
HOLDER
3P6-26393-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Unavailable |
|||
