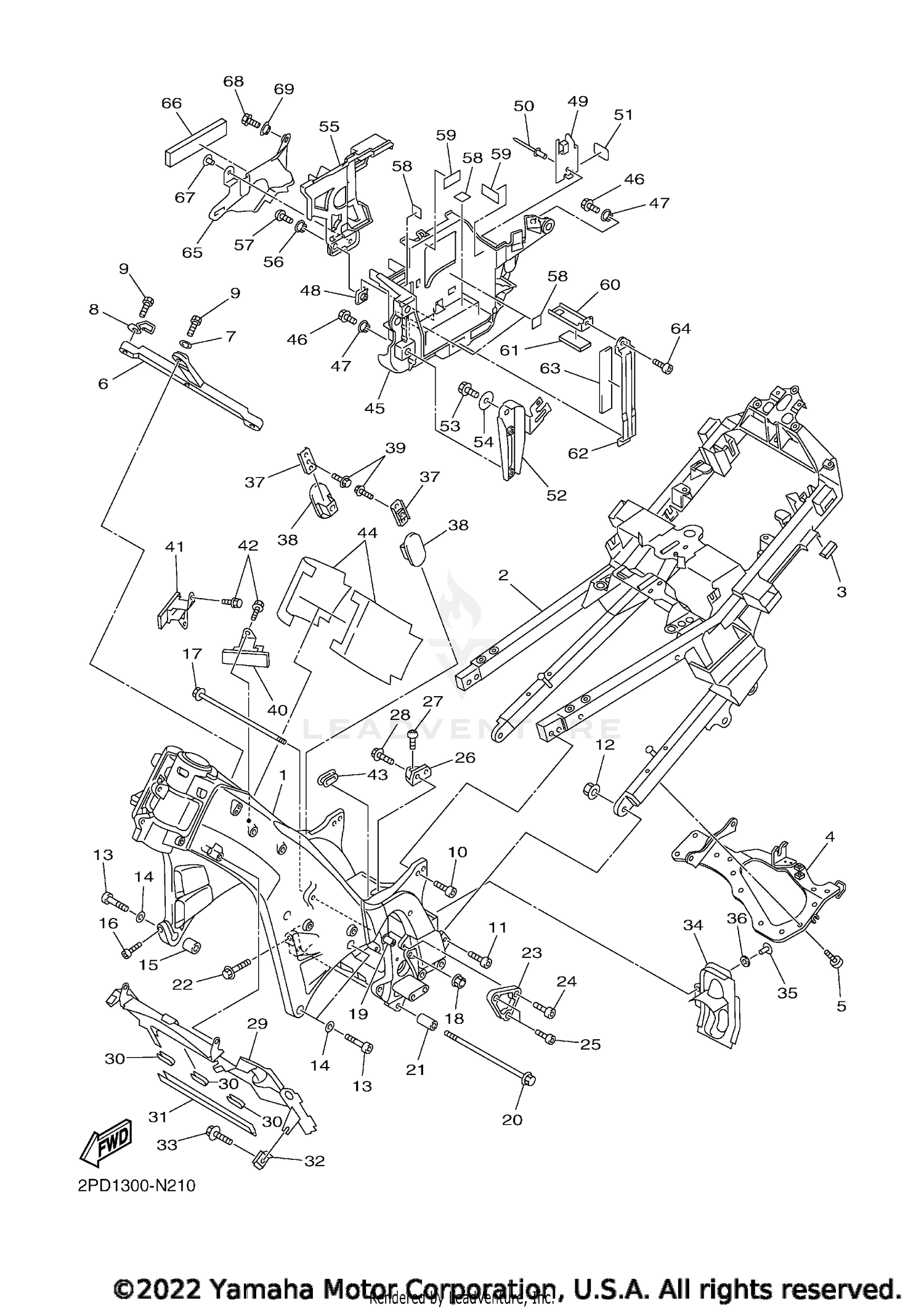

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
3P6-21110-00-00
|
$2,659.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR FRAME COMP.
2PD-21190-00-00
|
$1,006.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR
3P6-21652-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
MEMBER 1
1MD-2115A-00-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
90149-06022-00
Superseded by 90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CROSS-TUBE
3P6-21119-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-100L3-00
Superseded by 90201-106F2-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, WIRE
1MC-21339-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95812-10030-00
Superseded by 95817-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90110-08076-00
Superseded by 91317-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91312-10030-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91312-12055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-1312P-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91312-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WASHER BASED
90105-10416-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-10025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10730-00
Superseded by 90105-10781-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
90560-10364-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-08035-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, ENGINE 1
3P6-21315-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91312-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
91312-08016-00
Superseded by 91317-08016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
STAY, ENGINE 2
5JW-21316-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. SOCKET BUTTON
90111-10047-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-08307-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE, AIR
3P6-2137Y-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL
3P6-21269-00-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, AIR
3P6-21469-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, WITH WASHER
90119-06172-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
COVER, SHAFT 1
3P6-2147J-00-00
Superseded by 3P6-2147J-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIVET
90269-07008-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90202-06058-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET 3
5JW-2118U-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET, INNER 1
5JW-2113N-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BRACKET, INNER 2
5JW-2113R-00-00
Superseded by 5JW-2113R-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET, INNER 2
5JW-2113R-10-00
Superseded by 5JW-2113R-11-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-06078-00
Superseded by 95022-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#43
CAP
5JW-2143A-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER
5JW-21852-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
STAY 1
1MC-28321-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-06107-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
STAY, GUIDE 1
1MC-2831E-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
RIVET, BLIND
90267-40076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAL 1
5YU-22358-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#52
PLATE 1
1MC-28396-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#54
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BRACKET 5
1MC-2836H-00-00
Superseded by 1MC-2836H-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR
90387-05035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, BUTTON HEAD
92012-05012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#58
DAMPER
13S-21649-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
DAMPER 2
3C5-21639-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#60
STAY 2
5JW-28357-00-00
Superseded by 5JW-28357-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
DAMPER 3
5JW-28425-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
STAY 3
5JW-28358-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
DAMPER 4
5JW-28435-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
GUIDE, AIR 3
1MC-2137K-00-00
Superseded by 1MC-2137K-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
DAMPER 4
3WF-15337-01-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#67
RIVET
90269-05074-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#68
BOLT, FLANGE
95802-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#69
COLLAR
90387-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
