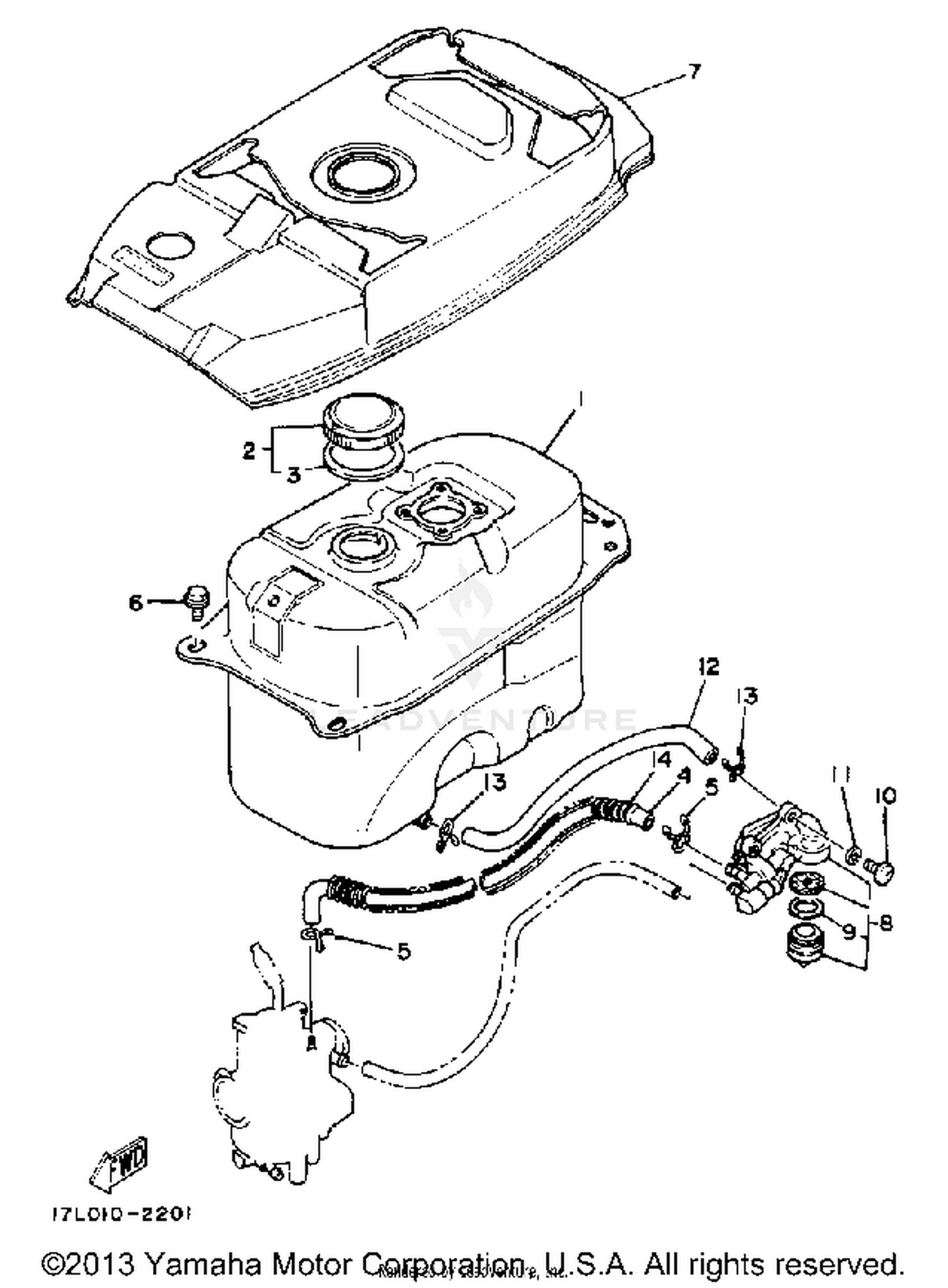

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
17L-24110-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSEMBLY
22F-24610-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PACKING, CAP
296-24612-00-00
Superseded by 3T5-24612-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FUEL 1
17M-24311-00-00
|
$1.77 | ||
|
Unavailable |
|||
|
#5
CLIP
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, RUBBER
5G3-24198-01-00
|
$9.40 | ||
|
Unavailable |
|||
|
#8
FUEL COCK ASSEMBLY 1 (17L-24500
17L-24500-02-00
|
$102.99 | ||
|
Unavailable |
|||
|
#9
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L100)
90445-11452-00
Superseded by 90445-11293-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-08410-00
Superseded by 90501-085L6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
