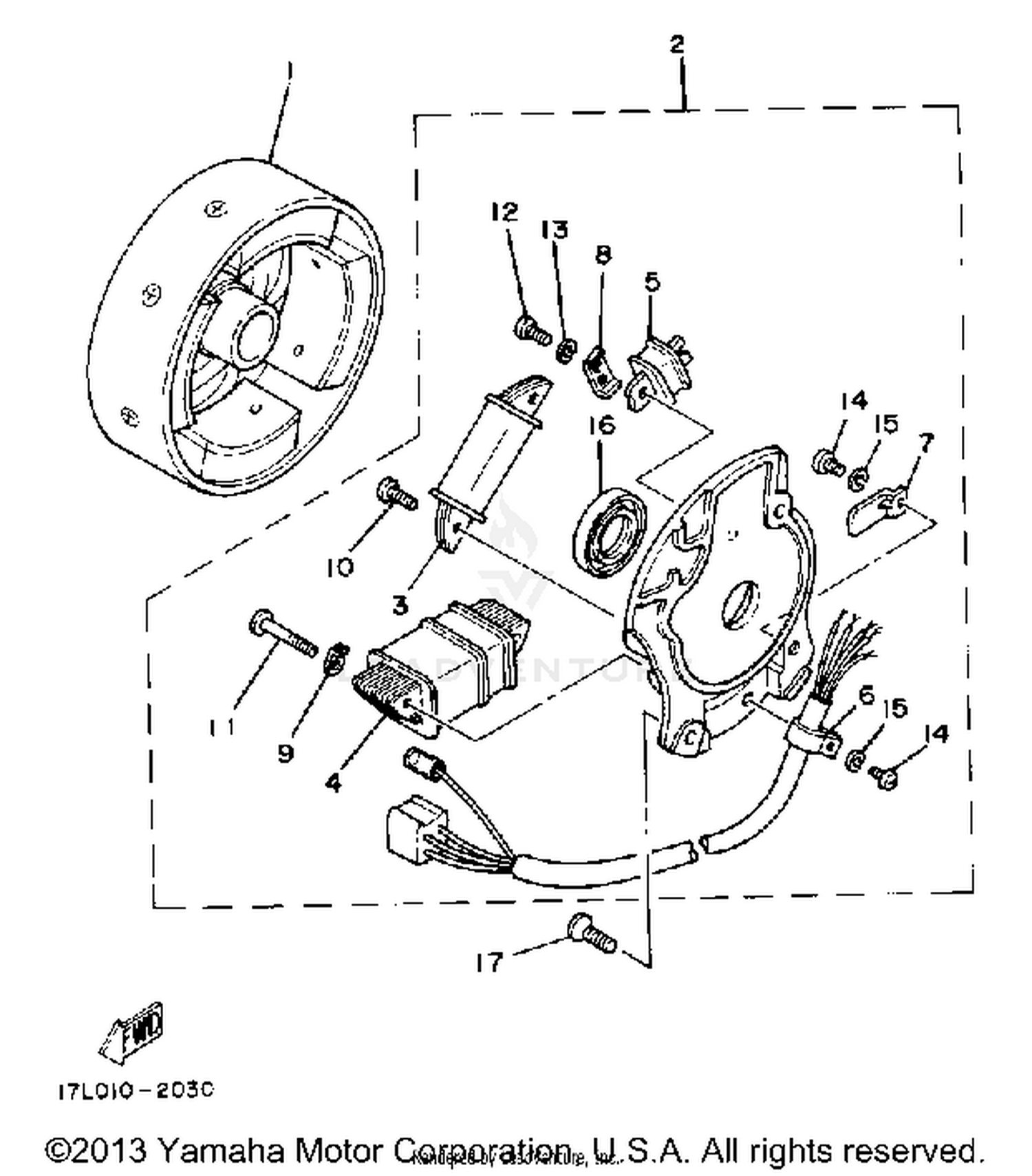

C - D - I - Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSEMBLY
17M-85550-M0-00
|
$137.99 | ||
|
Unavailable |
|||
|
#2
BASE ASSEMBLY
13T-85560-M0-00
|
$134.99 | ||
|
Unavailable |
|||
|
#3
COIL, CHARGE
15J-85520-M0-00
|
$44.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
13T-81313-M0-00
|
$46.53 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
5G3-85580-M0-00
|
$167.99 | ||
|
Unavailable |
|||
|
#6
CLAMP
90461-05036-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
5G6-81328-M0-00
|
$0.99 | ||
|
Unavailable |
|||
|
#8
TERMINAL, EARTH 1
2T4-85568-M1-00
|
$5.99 | ||
|
Unavailable |
|||
|
#9
TERMINAL, EARTH 2
2T4-85569-M1-00
|
$3.76 | ||
|
Unavailable |
|||
|
#10
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#16
OIL SEAL, SO-TYPE
93104-19082-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
