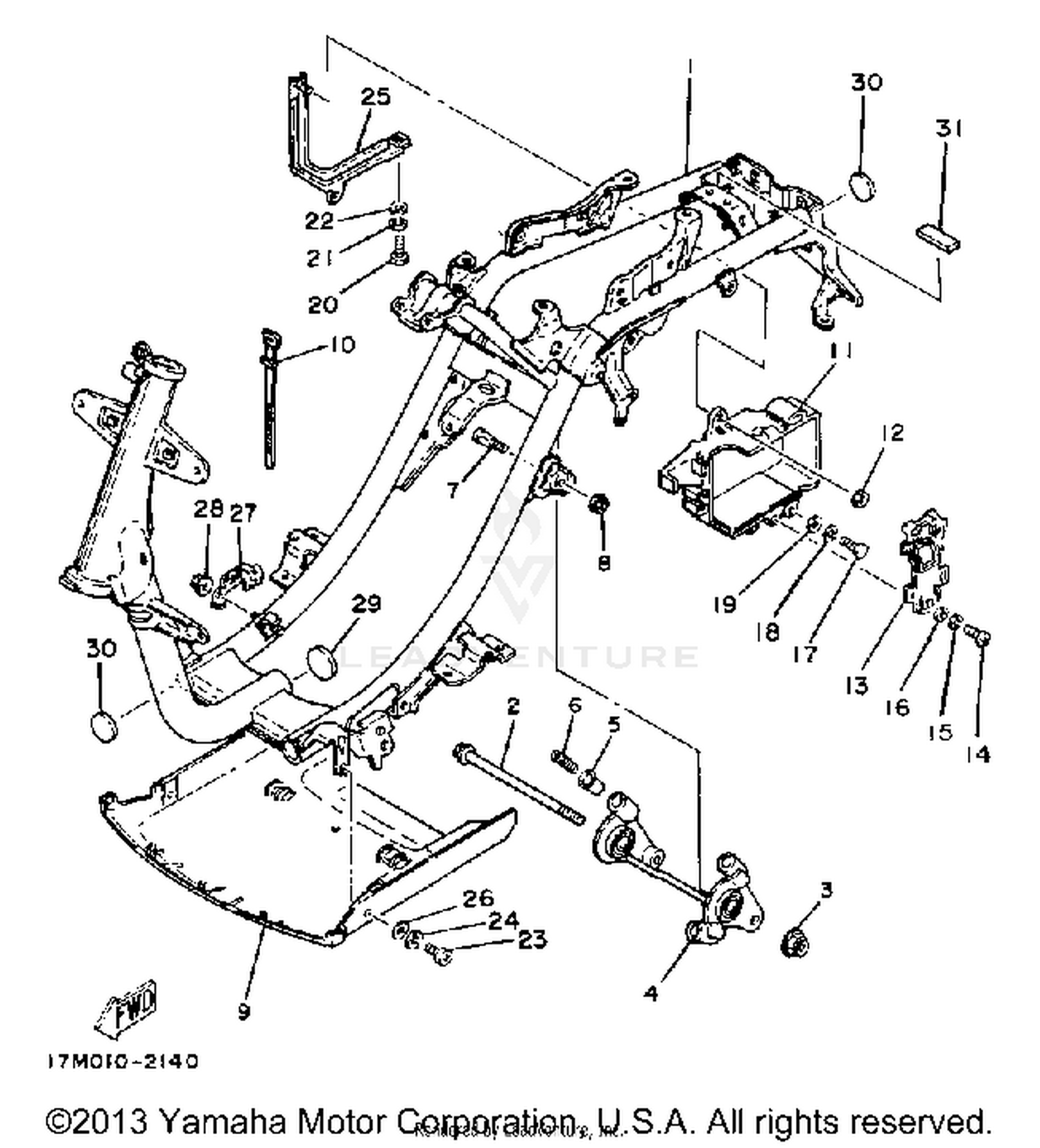

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
14A-21110-00-00
|
$223.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-12228-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
95601-12200-00
Superseded by 95607-12200-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
ENGINE BRKT
17L-21410-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#5
DAMPER
2T4-2139X-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-29517-00
Superseded by 90501-290K2-00
|
$2.30 | ||
|
Unavailable |
|||
|
#7
BOLT, ENG MNTNG 1
5G3-21481-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, ENGINE
5G3-21471-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#10
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX, TOOL
5G6-21171-02-00
|
$5.00 | ||
|
Unavailable |
|||
|
#12
NUT, U FLANGE
95601-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE 1
5G3-21543-00-00
Superseded by 35R-21543-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-05029-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-06050-00
Superseded by 90201-06M08-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BRACKET, BATT BOX 3
5G3-21395-02-00
|
$7.40 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-062A8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, CLUTCH CBLE
5G3-21162-00-00
|
$1.96 | ||
|
Unavailable |
|||
|
#28
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
COVER
5G3-2117F-00-00
|
$1.18 | ||
|
Unavailable |
|||
|
#30
DAMPER
17J-2139X-00-00
|
$4.85 | ||
|
Unavailable |
|||
|
#31
DAMPER
5G3-21747-00-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
