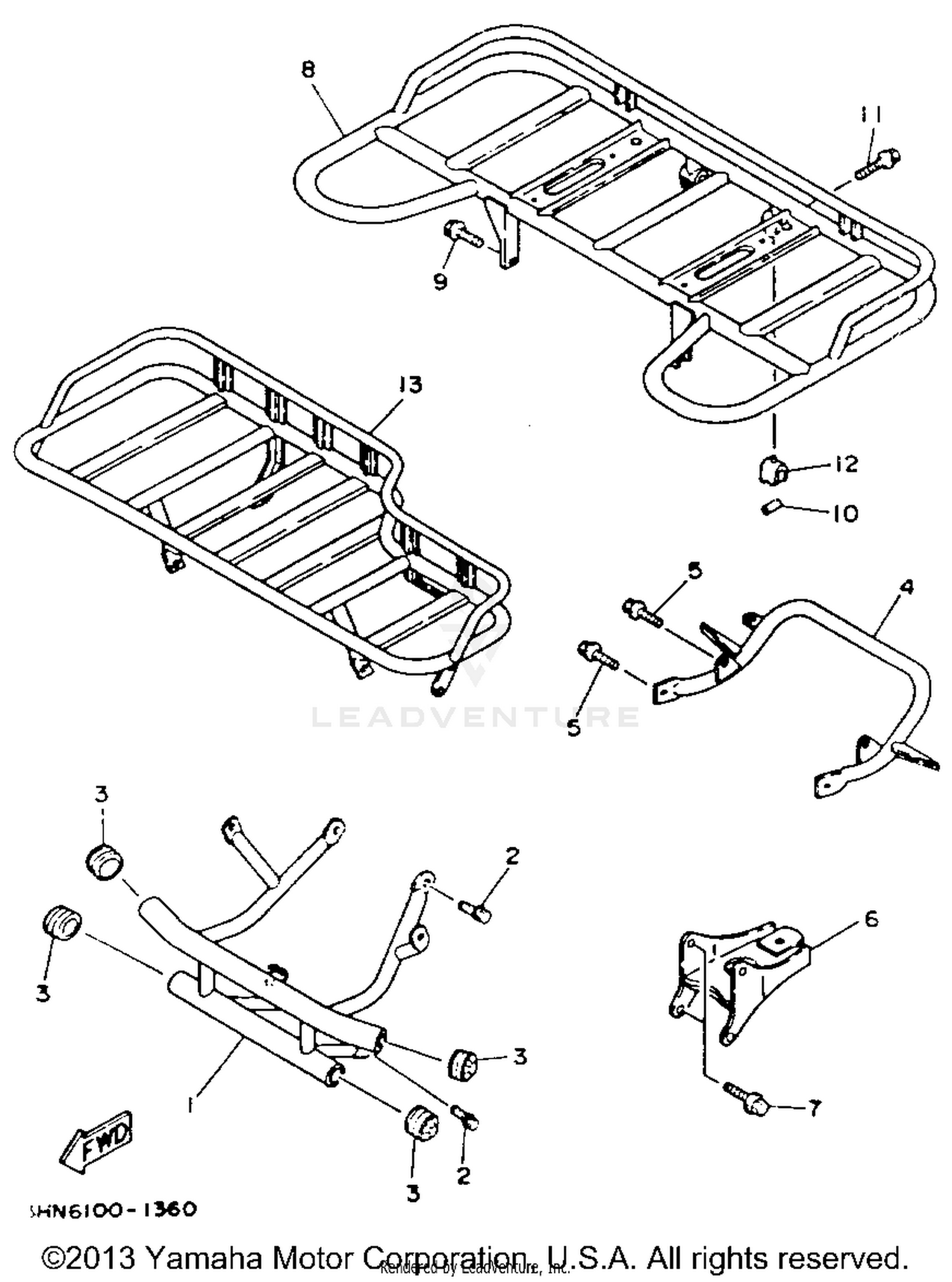

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
3HN-2845N-10-00
Superseded by 3HN-2845N-20-00
|
$196.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER 1
2HR-28415-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR, CARRY REAR
3GH-2845R-10-00
|
$131.99 | ||
|
Unavailable |
|||
|
#5
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
HOOK
2HR-28488-01-00
Superseded by 4SH-28488-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CARRIER, REAR
2HT-24842-00-00
|
$237.99 | ||
|
Unavailable |
|||
|
#9
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
SPACER
90560-06243-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95816-06035-00
Superseded by 95817-06035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
24W-2483H-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARRIER, FRONT (3HN-24841-10-00
3HN-24841-00-00
|
$215.99 | ||
|
Unavailable |
|||
