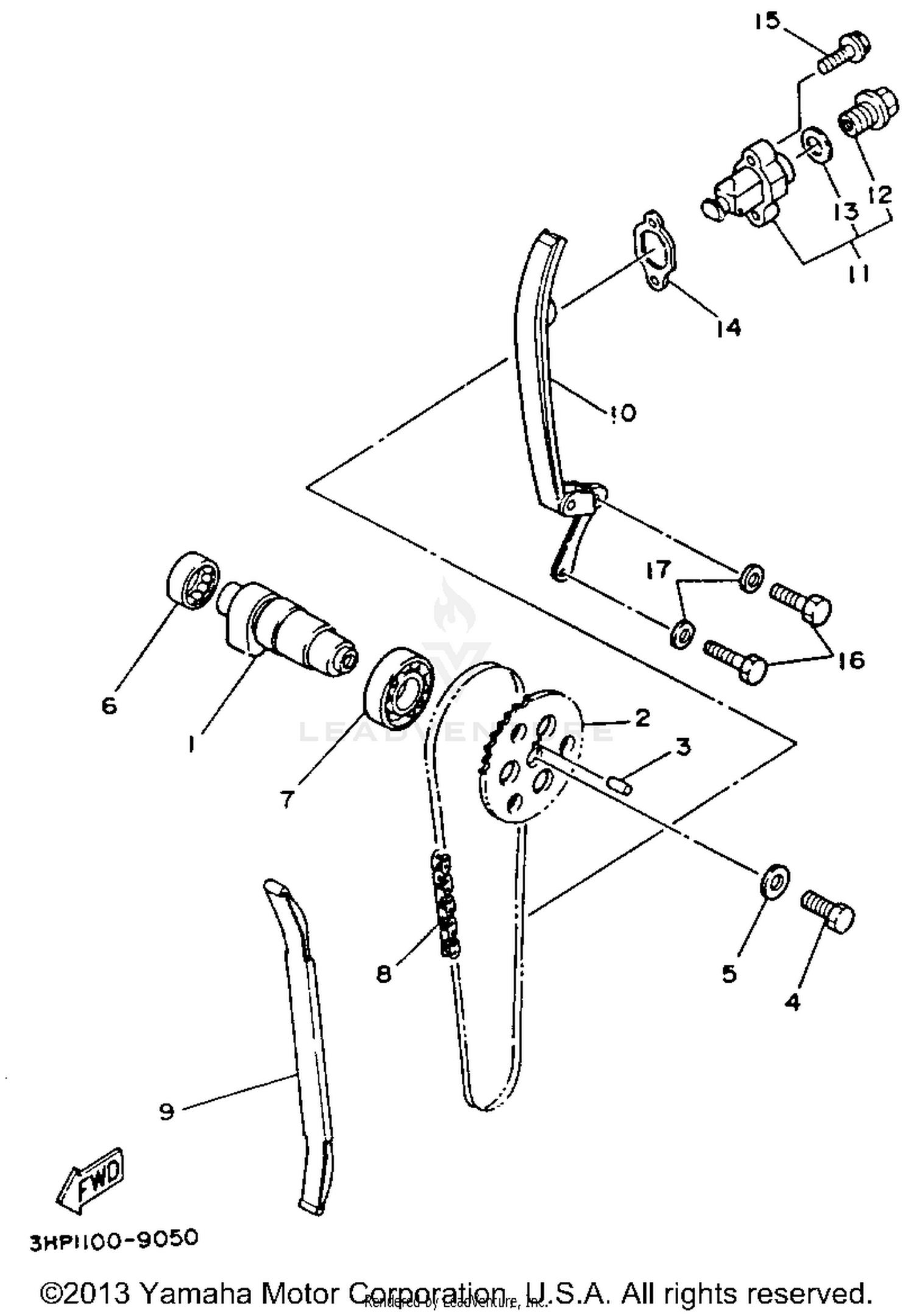

Camshaft - Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1YW-12170-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM CHAIN
3HN-12176-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10774-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-32516-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-00515-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN (BF05M 90L)
94500-02090-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 1
3Y1-12231-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, STOPPER 2
1UY-12241-00-00
Superseded by 1UY-12241-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#11
TENSIONER ASSY, CAM CHAIN
31G-12210-01-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
31G-12222-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
31G-12214-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, TENSIONER CASE
3GD-12213-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
