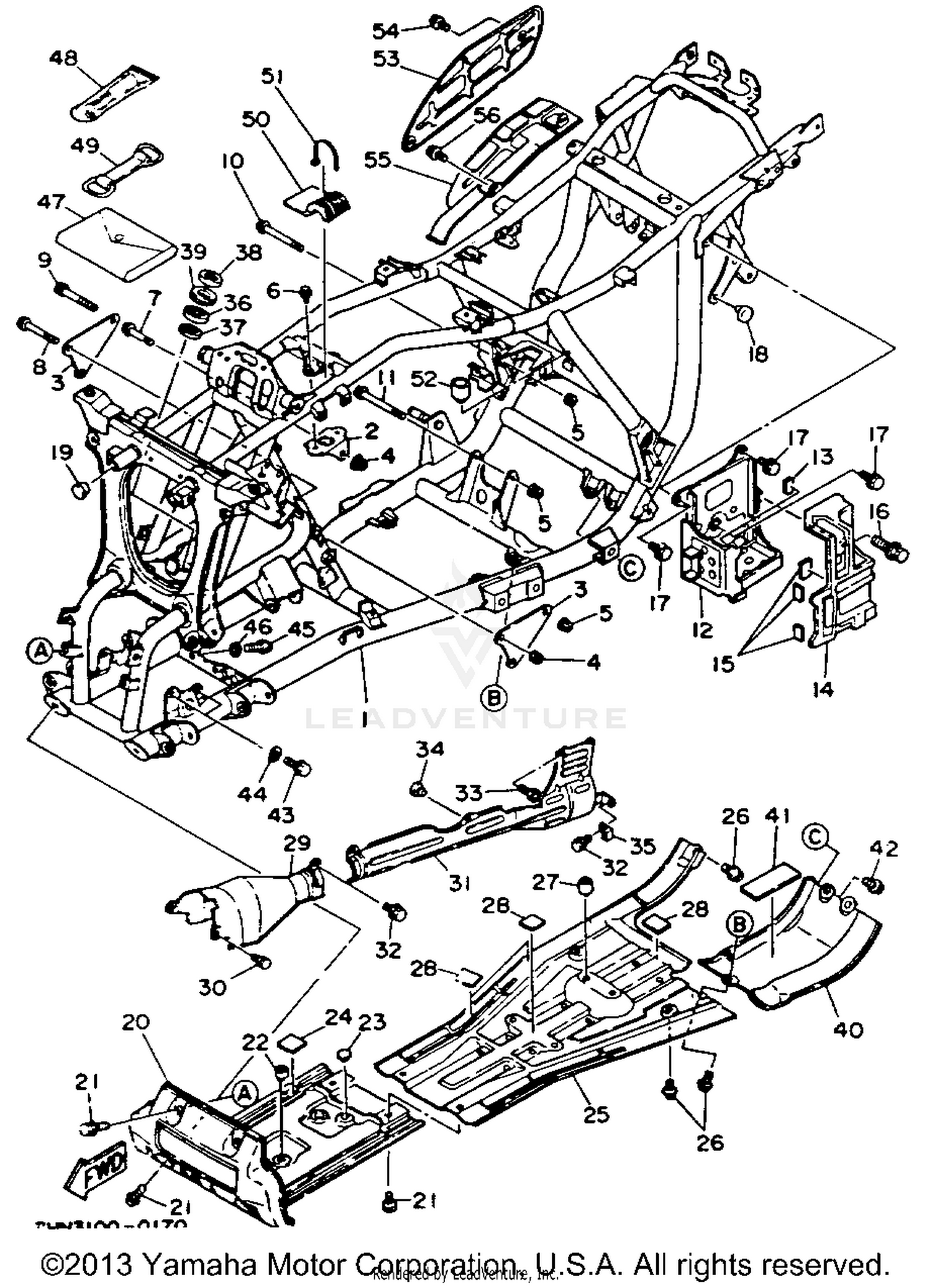

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
99999-02275-00
|
$1,083.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
2HR-21315-01-00
Superseded by 2HR-21315-02-00
|
$17.49 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 3
3HN-21316-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#4
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-08070-00
Superseded by 95817-08070-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10323-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WASHER BASED
90105-10480-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10409-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX
1YW-21170-00-00
Superseded by 1YW-21170-01-00
|
$88.99 | ||
|
Unavailable |
|||
|
#13
COVER 2
3FC-2139R-00-00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX
24W-21245-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 2
3FC-2139R-00-00
|
$2.22 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER
30X-24768-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, SPECL SHAPE
90338-18122-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUARD, ENGINE 1
2HR-2147A-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
STOPPER, MAIN STAND
116-27114-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
1XX-28371-00-00
Superseded by 27V-24181-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#25
PROTECTOR, ENGINE
3HN-21471-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
STOPPER, MAIN STAND
3HN-27114-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#28
DAMPER, LOCATING 1
1XX-28371-00-00
Superseded by 27V-24181-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#29
COVER, SHAFT 1
3HN-2147J-01-00
Superseded by 3HN-2147J-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#31
COVER, SHAFT 2
3HN-2147K-01-00
|
$117.99 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
91311-06050-00
Superseded by 91314-06050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER, LOCATING 1
22W-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90465-06176-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
BEARING
93306-20331-00
Superseded by 93306-20348-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
OIL SEAL
93102-25099-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
OIL SEAL
93102-25081-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HOLDER, BEARING
2GU-23872-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
STAY, TRANSFER
2HR-2147H-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#41
DAMPER 2
38V-21486-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#43
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
92990-10600-00
|
$3.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
BOLT
97021-08045-00
Superseded by 97017-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
TOOL KIT
2VA-28100-00-00
Superseded by 3GH-28100-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#48
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BAND, TOOL
21V-21376-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
DAMPER, LOCATING 1
2HR-24181-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#51
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
STOPPER, MAIN STAND
1J7-27114-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#53
COVER, REAR FENDER 2
2HR-2163E-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#54
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
COVER, REAR FENDER 3
2HR-2163F-00-00
Superseded by 2HR-2163F-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$5.49 | ||
|
Unavailable |
|||
