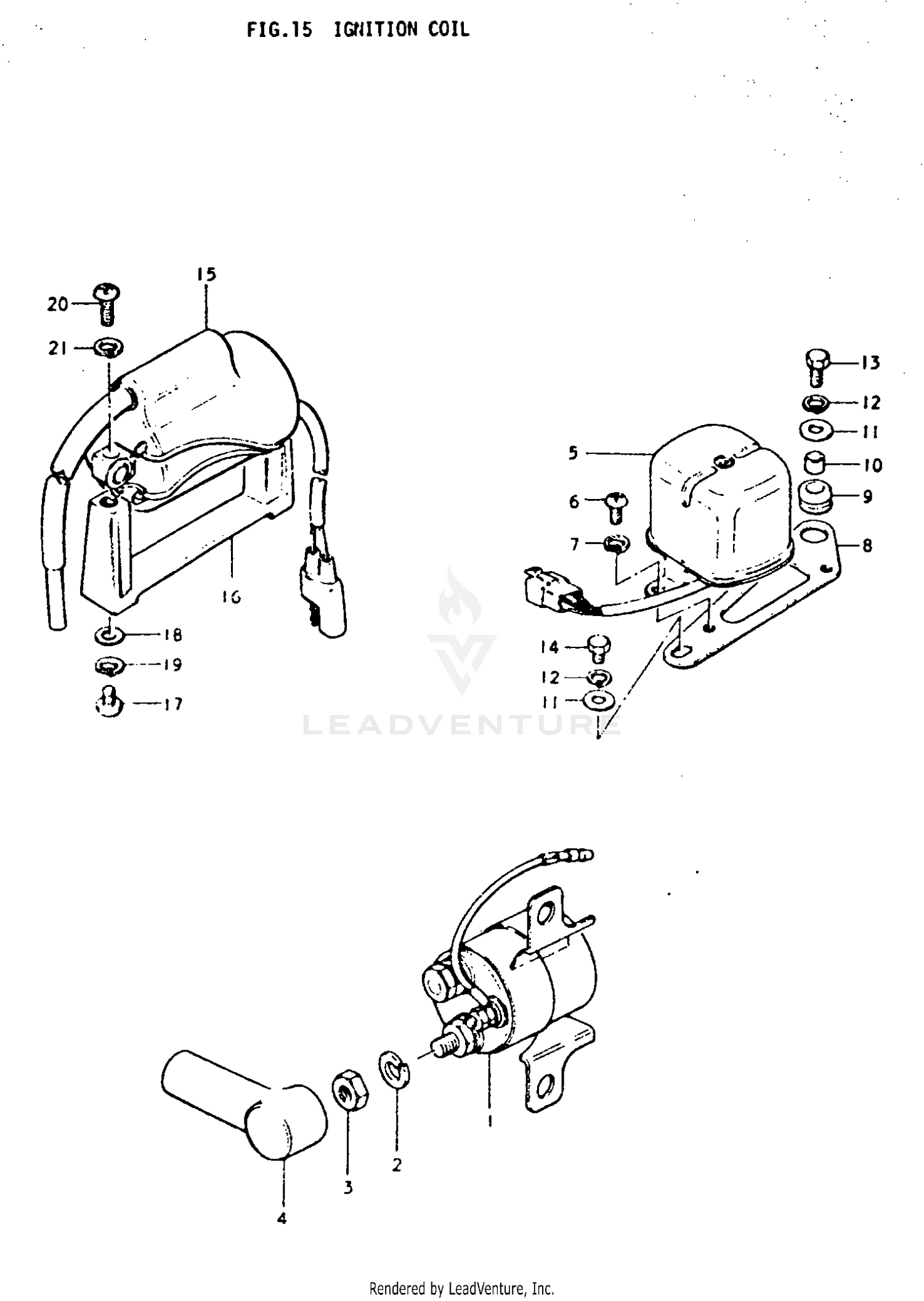

Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STAR
31800-37020
Superseded by 31800-37021
|
$94.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
.NUT
08311-31068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.CAP, STARTER MOTOR
31861-35100
Superseded by 31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RELAY TERMINAL
31861-36101
|
$2.63 | ||
|
Unavailable |
|||
|
#5
REGULATOR ASSY
32500-36110
|
$177.02 | ||
|
Unavailable |
|||
|
#6
SCREW
02112-06168
Superseded by 02112-06167
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#8
BRACKET
32690-29100
|
|||
|
Unavailable |
|||
|
#9
CUSHION (8.5X20X8)
09320-08007
Superseded by 09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X9X7)
09180-07005
Superseded by 09180-06259
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06027
Superseded by 09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#13
BOLT
01112-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
01131-06128
Superseded by 01500-06127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
COIL ASSY, IGNI
33410-29010
Superseded by 33410-22113
|
$115.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
33416-08001
|
$4.96 | ||
|
Unavailable |
|||
|
#17
SCREW
02111-05127
Superseded by 02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-21058
Superseded by 08322-01057
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02111-05207
Superseded by 02112-05207
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Unavailable |
|||
