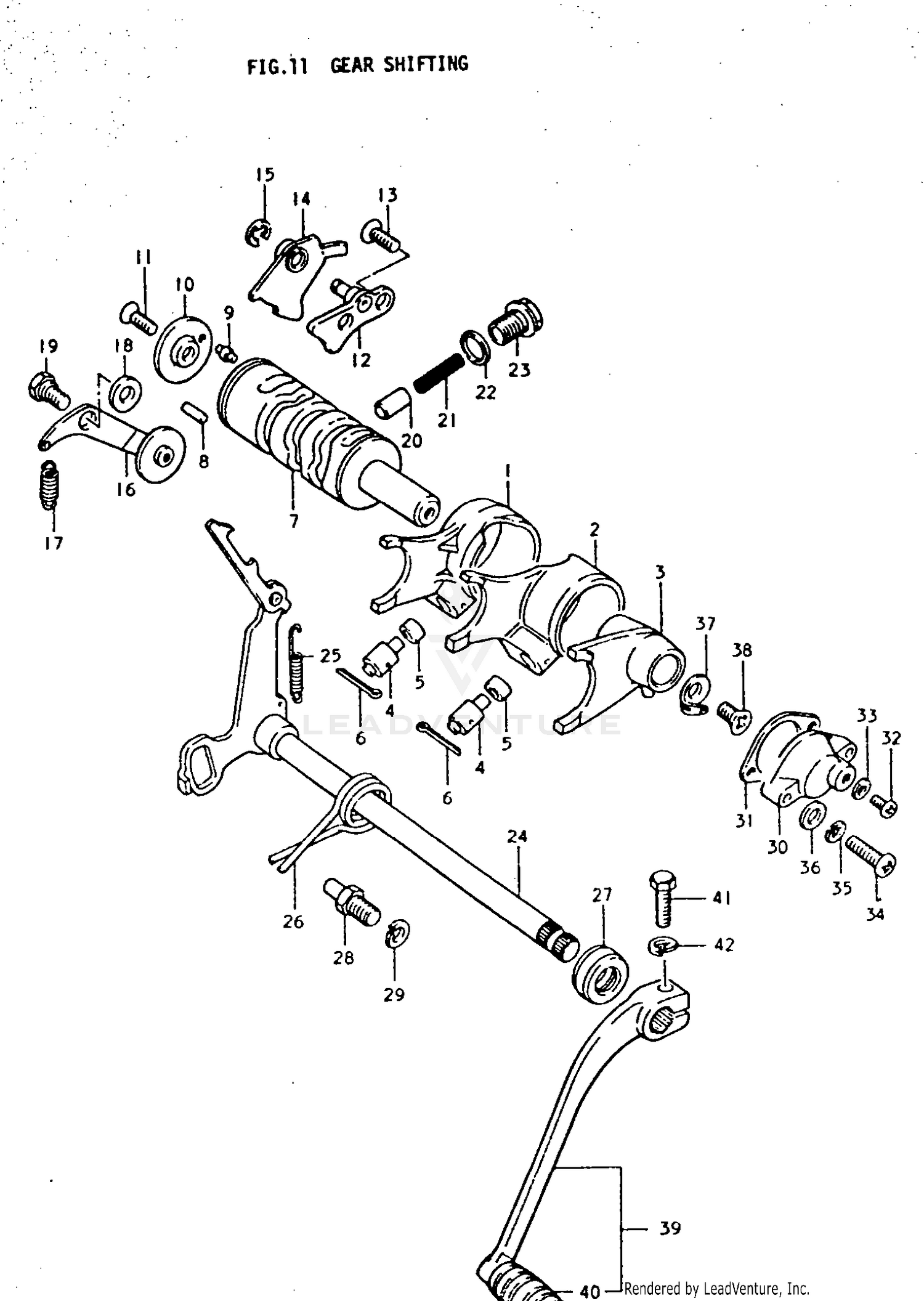

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFTING A
25211-29100
|
$22.77 | ||
|
Unavailable |
|||
|
#2
FORK, GEAR SHIFTING B
25221-29100
|
$23.49 | ||
|
Unavailable |
|||
|
#3
FORK, REDUCTION GEAR
25811-29100
|
|||
|
Unavailable |
|||
|
#4
PIN
09209-10003
|
|||
|
Unavailable |
|||
|
#4
PIN
09209-10002
|
$3.61 | ||
|
Unavailable |
|||
|
#5
SPACER (6X9.8X6)
09180-06004
Superseded by 09180-06086
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
CITTER PIN
04111-25208
Superseded by 04111-2520A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, GEAR SHIFTING
25311-29100
|
|||
|
Unavailable |
|||
|
#7
CAM, GEAR SHIFTING
25311-29101
|
|||
|
Unavailable |
|||
|
#8
.ROLLER (4X13.8)
09261-04002
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09209-04012
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, DRIVE PIN
25322-28030
|
$3.25 | ||
|
Unavailable |
|||
|
#11
SCREW
02122-06208
Superseded by 02122-0620A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, GEAR SHIFTING CAM
25340-12101
|
$9.88 | ||
|
Unavailable |
|||
|
#13
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
PAWL, CAM STOPPER
25370-12100
Superseded by 25370-12101
|
$7.94 | ||
|
Unavailable |
|||
|
#14
PAWL, CAM STOPPER
25370-12101
|
$7.94 | ||
|
Unavailable |
|||
|
#15
E RING
08332-11058
Superseded by 08332-1105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, GEAR SHIFTING CAM A
25350-28001
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-07014
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09160-06022
|
$1.52 | ||
|
Unavailable |
|||
|
#19
BOLT
09111-06003
|
$1.43 | ||
|
Unavailable |
|||
|
#20
STOPPER, SELECT CAM
25351-18000
Superseded by 25351-39300
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING
09440-05018
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOLDER, STOPPER
25352-11000
Superseded by 25352-11010
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHAFT, GEAR SHIFTING
25510-29100
|
$56.50 | ||
|
Unavailable |
|||
|
#25
SPRING
09443-06008
|
$2.03 | ||
|
Unavailable |
|||
|
#26
SPRING
09444-26008
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
STOPPER, GEAR SHIFTING ARM
25671-19000
|
$2.12 | ||
|
Unavailable |
|||
|
#29
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
BODY, GEAR SHIFTING SWITCH
37721-26000
|
$8.99 | ||
|
Unavailable |
|||
|
#31
GASKET
37712-26000
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
02111-03048
Superseded by 02112-03047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
08322-21038
Superseded by 08322-01037
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
02111-04208
Superseded by 02112-0420A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
08322-21048
Superseded by 08322-01047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#37
CONTACT, SWITCH
37711-05101
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
02122-06128
Superseded by 02122-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
LEVER ASSY, GEAR SHIFTING
25600-29100
Superseded by 25600-29101
|
$30.45 | ||
|
Unavailable |
|||
|
#39
LEVER ASSY, GEAR SHIFTING
25600-29101
|
$30.45 | ||
|
Unavailable |
|||
|
#40
.RUBBER,GEAR SHIFT PEDAL
25652-16500
Superseded by 25652-16510
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
01112-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
