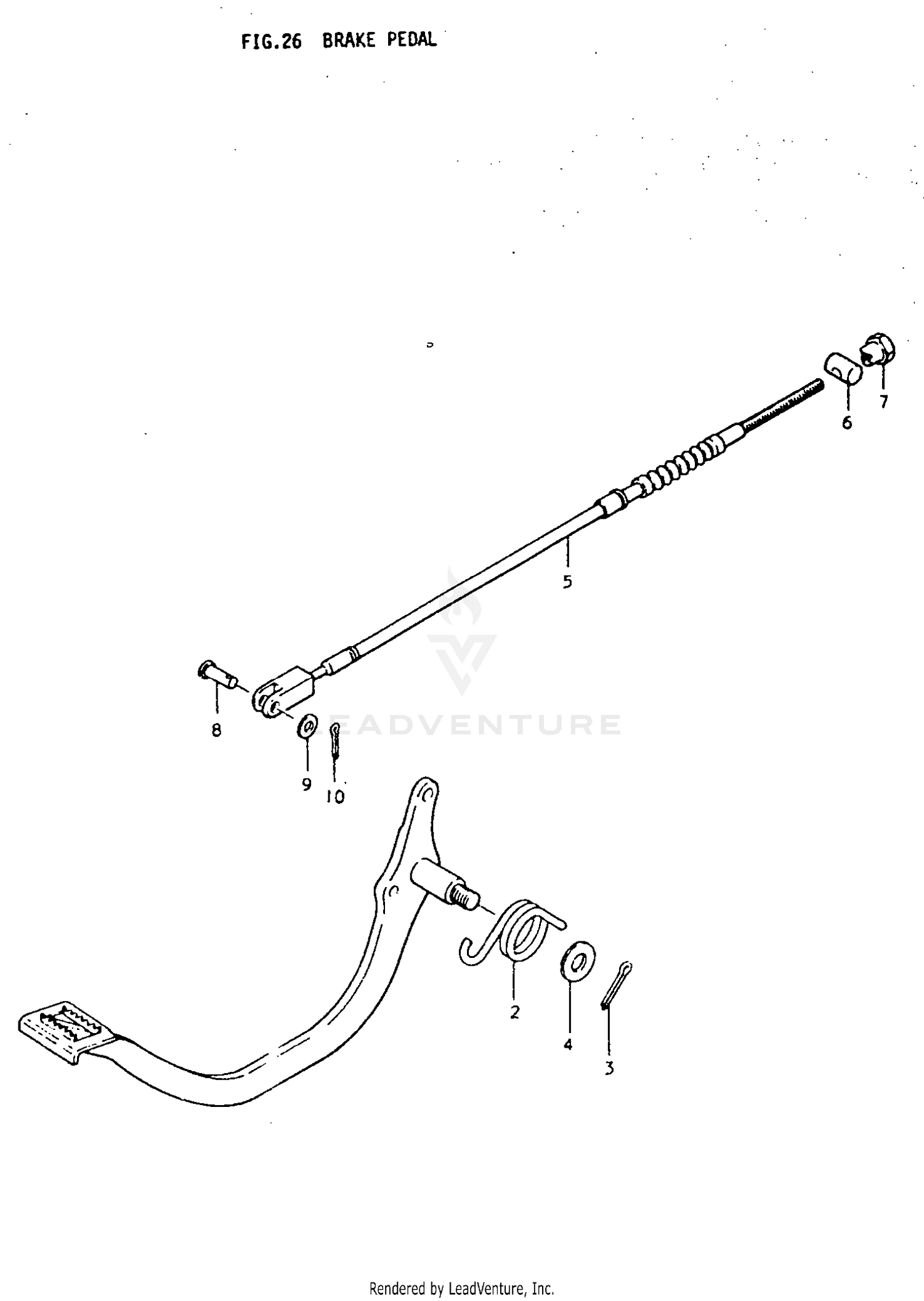

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
43110-29100
|
$25.78 | ||
|
Unavailable |
|||
|
#2
SPRING
09448-32004
Superseded by 09448-32004-XC0
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
04111-30308
Superseded by 04111-3030A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09160-15002
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE ASSY, REAR BRAKE
58510-29000
|
$42.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
09209-11002
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
.NUT
09150-06001
Superseded by 09150-06010
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIN
09200-05001
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
