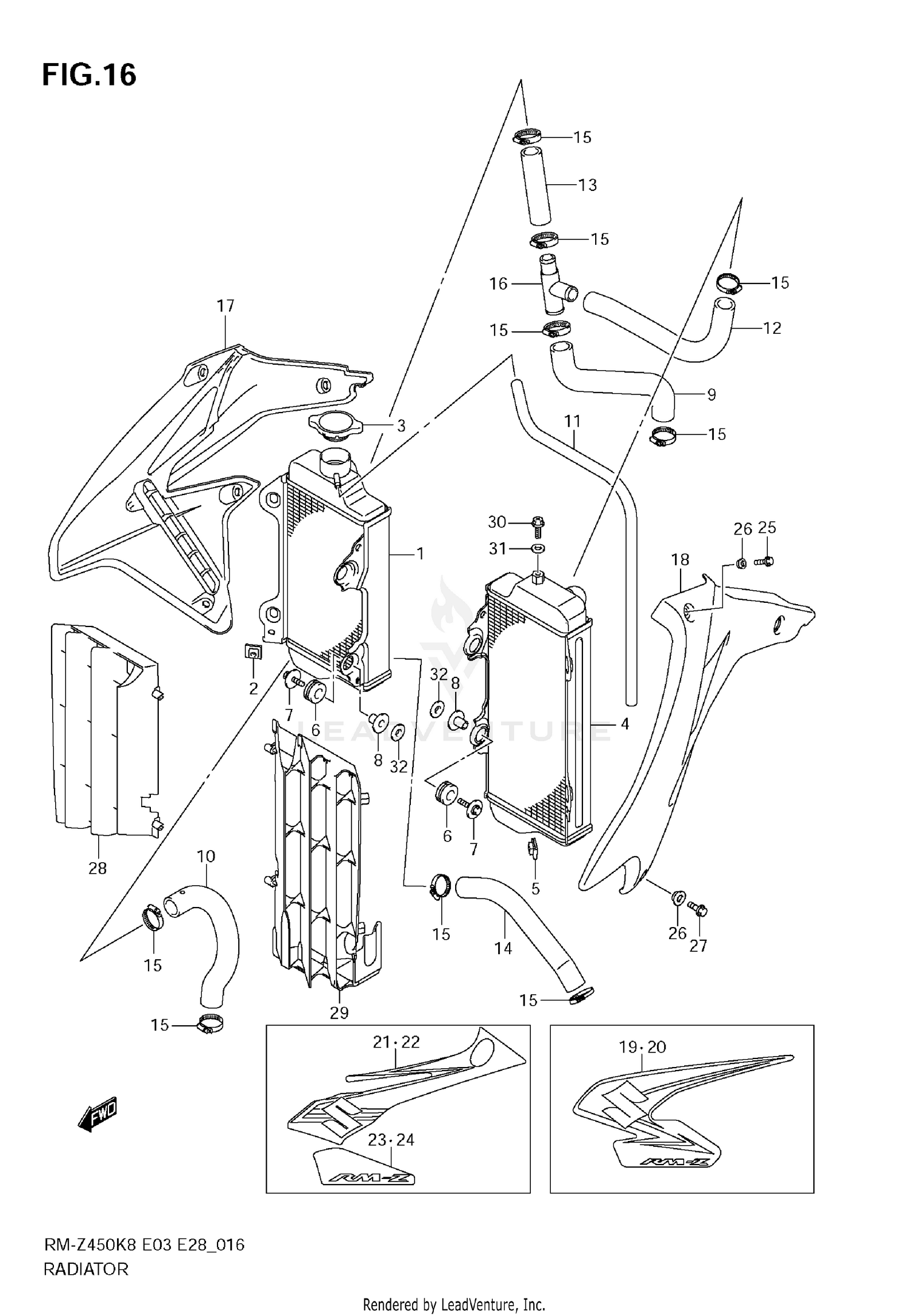

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR, RH
17710-28H00
Superseded by 17710-28H21
|
$429.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,FAN ASSY
17712-40F00
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,RADIATOR (1.1)
17730-12C20
Superseded by 17730-08J00
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR, LH
17720-28H00
Superseded by 17720-28H20
|
$494.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,FAN ASSY
17712-40F00
|
$5.96 | ||
|
Unavailable |
|||
|
#6
CUSHION,RADIATOR,LOWER
17787-19A00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X25)
09116-06186
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
09180-06243
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, INLET
17851-28H00
|
$20.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, OUTLET
17852-28H00
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (5X8X2000)
09351-50803-00A
Superseded by 09351-50803-00B
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, JOINT UPPER NO.1
17853-28H00
|
$28.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, JOINT UPPER NO.2
17854-28H00
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, JOINT LOWER
17855-28H00
|
$19.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, RADIATOR HOSE
17857-35G10
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, RADIATOR, RH (YELLOW/BLUE)
17761-28H00-EYY
|
$67.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, RADIATOR RH (YELLOW/BLACK)
17761-28H00-GY8
Superseded by 17761-28H02-GY8
|
$112.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, RADIATOR, LH (YELLOW/BLUE)
17762-28H00-EYY
|
$63.91 | ||
|
Unavailable |
|||
|
#18
COVER, RADIATOR LH (YELLOW/BLACK)
17762-28H00-GY8
Superseded by 17762-28H02-GY8
|
$112.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
TAPE, RADIATOR COVER, RH
68660-28H00-EMA
|
$205.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
TAPE, RADIATOR COVER, LH
68670-28H00-EMA
|
$157.67 | ||
|
Unavailable |
|||
|
#21
TAPE, RADIATOR COVER, RH
68660-28H10-FYF
|
$143.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE, RADIATOR COVER, LH
68670-28H10-FYF
|
$143.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
EMBLEM, RADIATOR COVER, RH
68665-28H00-DCP
|
$39.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
EMBLEM, RADIATOR COVER, LH
68675-28H00-DCP
|
$30.00 | ||
|
Unavailable |
|||
|
#25
BOLT (6X12)
09103-06233
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
47191-10H01
Superseded by 47191-28H00
|
$12.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (6X16)
09103-06234
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOUVER, RADIATOR RH
17831-28H00
Superseded by 17801-28H10
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
LOUVER, RADIATOR LH
17832-28H00
Superseded by 17802-28H10
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
UNION,AIR VENT
17568-50F00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER
09160-06162
|
$2.80 | ||
|
Unavailable |
|||
