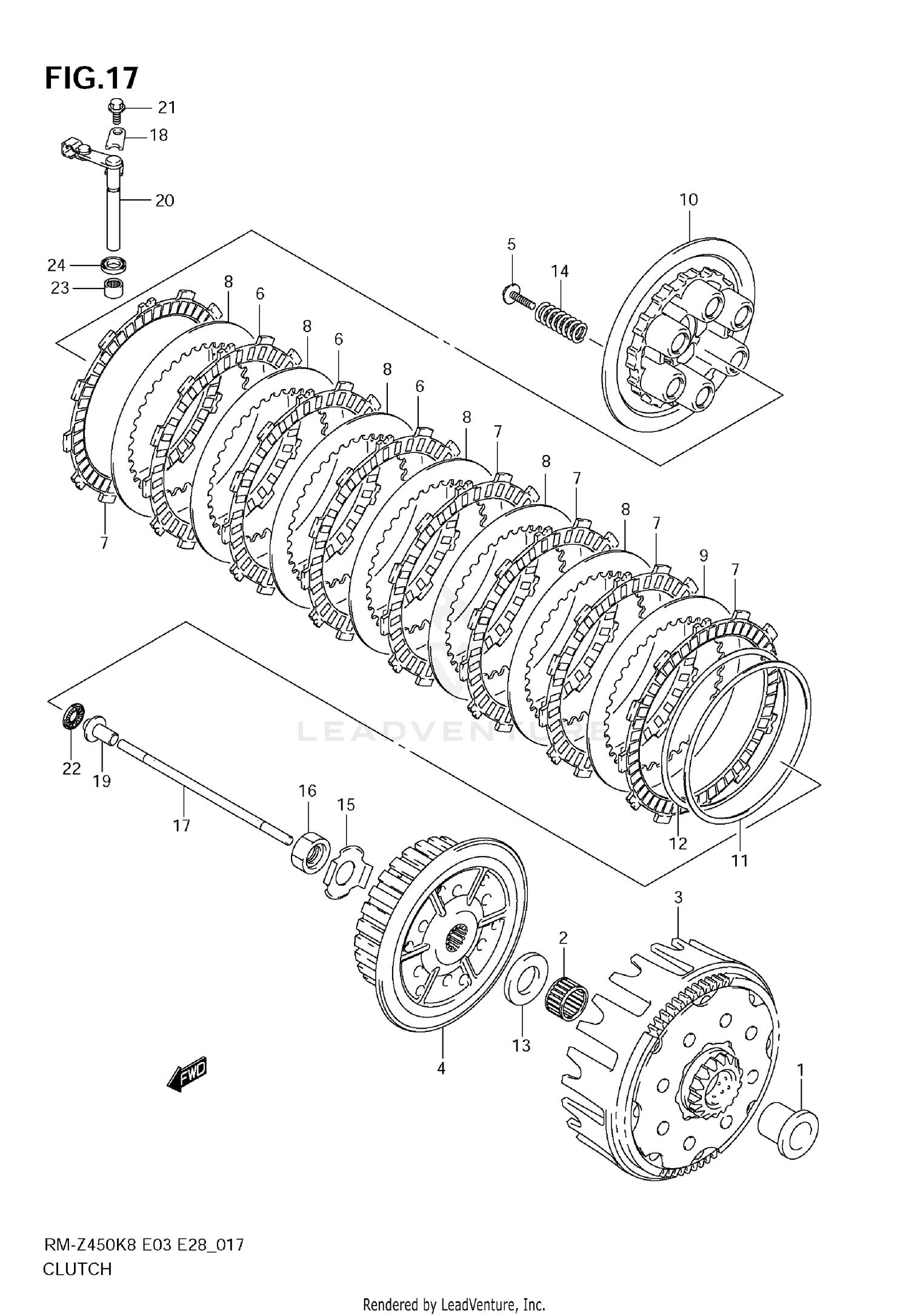

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER,PRI DRIVEN GEAR
21251-28H00
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, PRIMARY DRIVEN GEAR
09263-28042
|
$31.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR ASSY, PRIMARY DRIVEN (NT:16/63)
21200-28H00
Superseded by 21200-28H01
|
$375.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, CLUTCH SLEEVE
21411-35G11
|
$112.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,CLUTCH SPRING (6X25)
21412-35G00
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CLUTCH DRIVE NO.1 (T:2.
21441-35G00
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE,CLUTCH DRIVE NO.2 (T:2.
21441-37F30
|
$17.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE,CLUTCH DRIVEN (T:1.6)
21451-35G00
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,CLUTCH DRIVEN (T:1.6)
21452-35G00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
DISC,CLUTCH PRESSURE
21462-28H00
|
$66.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT,WAVE WASHER
21471-28H00
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,CLUTCH PLATE WAVE
21472-35G00
|
$22.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLUTCH SLEEVE HUB THR
09160-22082
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH
09440-18038
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,CLUTCH SLEEVE HUB LOCK
21416-35G10
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLUTCH SLEEVE HUB
09140-18017
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD,CLUTCH PUSH
23110-28H00
|
$26.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER,CL RELEASE CAMSHAFT
23117-28H00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIECE,CLUTCH PUSH
23121-37F00
|
$25.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT, CLUTCH RELEASE
23200-28H00
|
$117.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CL RLSE CAMSHAFT RTNR
09103-06280
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, CL RELEASE
09263-10002
|
$12.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, CL RELEASE CAMSHAFT
09263-10014
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (10X17X5)
09285-10004
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
