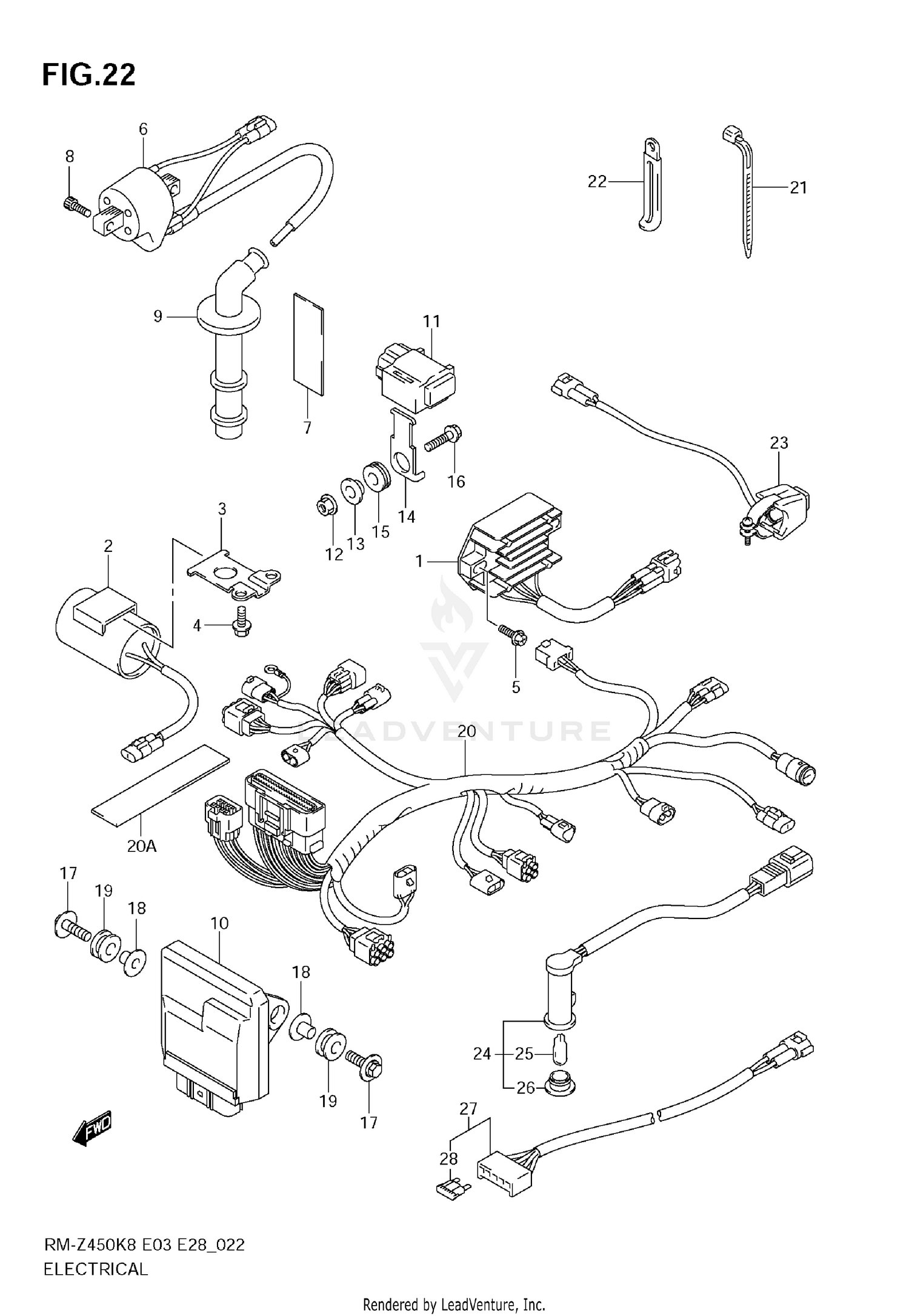

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY
32800-95B50
Superseded by 32800-87K10
|
$159.25 | ||
|
Unavailable |
|||
|
#1
RECTIFIER ASSY
32800-87K10
|
$159.25 | ||
|
Unavailable |
|||
|
#2
CONDENSER ASSY
33640-28H00
|
$206.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, CONDENSER
33641-28H00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, CONDENSER BRKT
09103-06188
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, RECTIFIER
02162-0625A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL ASSY, IGNITION
33410-35G10
|
$142.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, IGNITION COIL
33652-29F00
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, IGNITION COIL
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP ASSY,SPARK PLUG
33510-28H00
|
$67.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
CONTROL UNIT, FI
32920-28H00
Superseded by 32920-28H01
|
$736.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
CONTROL UNIT, FI
32920-28H20
|
$605.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPACER (6.2X8.4X10.9)
09180-06331
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, FUEL CUT
33961-28H00
|
|||
|
Unavailable |
|||
|
#15
CUSHION
09320-08501
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FI CONTROL UNIT
09116-06182
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.2X8.4X10.9)
09180-06331
|
$5.18 | ||
|
Unavailable |
|||
|
#19
CUSHION,CABLE H
09320-08076
Superseded by 09320-08517
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
HARNESS, WIRING
36610-28H00
|
$424.60 | ||
|
Available to order. Add to View Price |
|||
|
#20A
PROTECTOR,20X90X1.0 (20X90X1.
33652-26E00
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#23
SWITCH ASSY,ENGINE STOP
37820-36E00
|
$34.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
LAMP ASSY, FI INDICATOR
36380-28H00
|
$87.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB (12V 3.4W,T10)
09471-12028
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
LENS (RED)
36321-28H00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
WIRE, BATTERY
36890-28H00
|
$51.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
