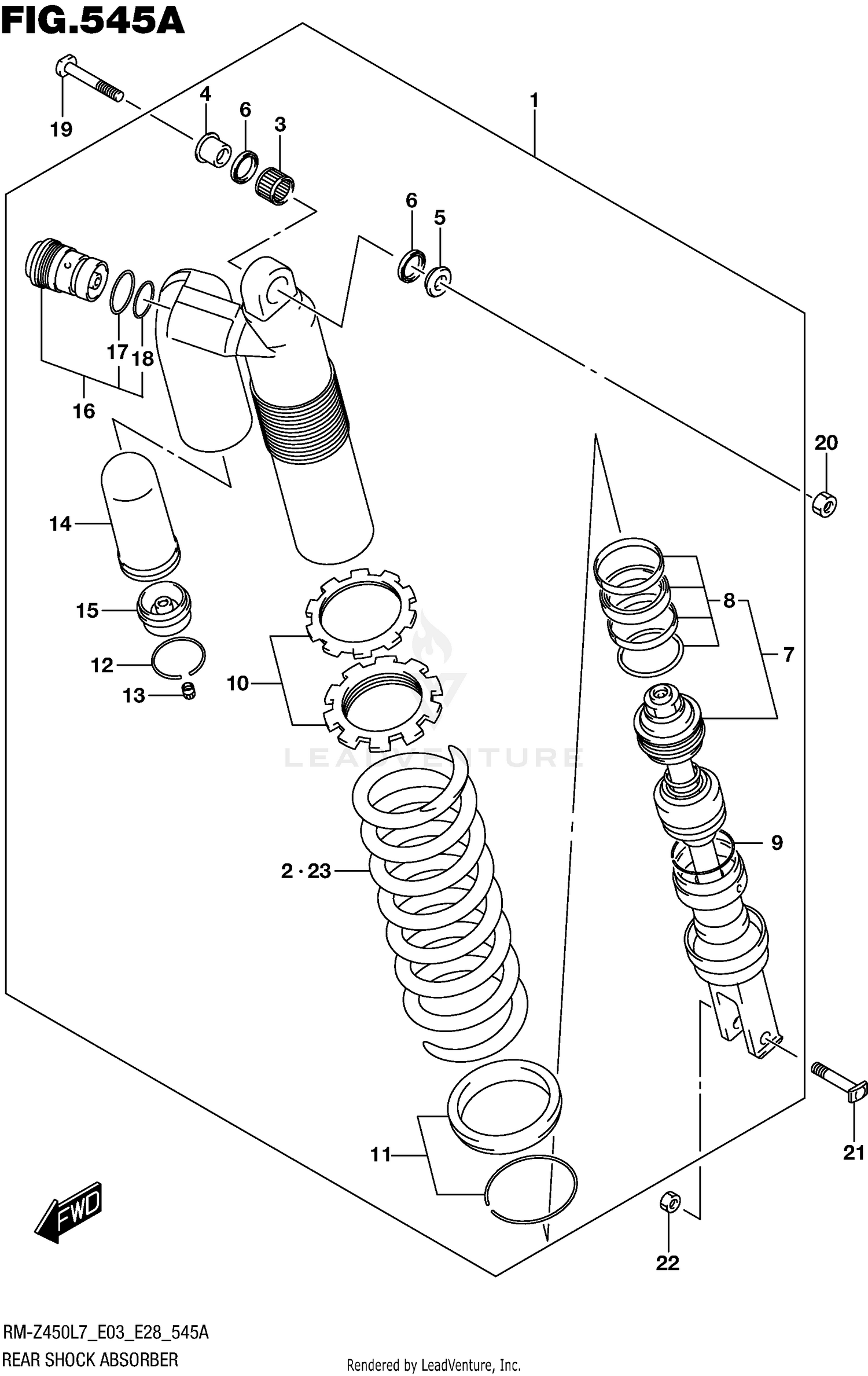

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, RR SHOCK
62100-28HD0-019
|
$1,438.85 | ||
|
Available to order. Add to View Price |
|||
|
#1
(BLACK)
62100-28HD0-019
|
$1,438.85 | ||
|
Unavailable |
|||
|
#2
.SPRING
62211-28H90
|
$253.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (16X22X12)
09263-16033
|
$24.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPACER,UPPER BRG RH
62684-36F00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SPACER,UPPER BRG LH
62685-36F00
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
.OIL SEAL (16X22X2.5)
09284-16005
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
.ROD, PISTON
62120-28HC0
|
$844.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
..O RING SET
62150-28H60
|
$126.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
.RING, STOPPER
62279-36E80
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
.ADJUSTER SET
62190-28H90
|
$82.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SPRING SEAT SET
62220-36F00
|
$92.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
.RING, STOPPER
62278-36E00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
..CAP,AIR VALVE
52194-46686
|
$5.39 | ||
|
Unavailable |
|||
|
#14
.BLADDER
62273-36E00
|
$72.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
.CAP, CHAMBER
62275-28H30
|
$60.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BOLT, PLUG
62130-28H60
|
$183.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
..O RING
62131-28E00
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
..O RING
51174-36EB0
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,RR SHOCK ABS UPPER
62311-28H00
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09159-10067
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,RR SHOCK ABS LOWER
62221-37F30
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09159-10067
|
$7.55 | ||
|
Unavailable |
|||
|
#23-1
SPRING (SOFT)
62211-49H60
|
$195.01 | ||
|
Available to order. Add to View Price |
|||
|
#23-2
SPRING (HARD)
62211-35G40
|
$430.65 | ||
|
Available to order. Add to View Price |
|||
