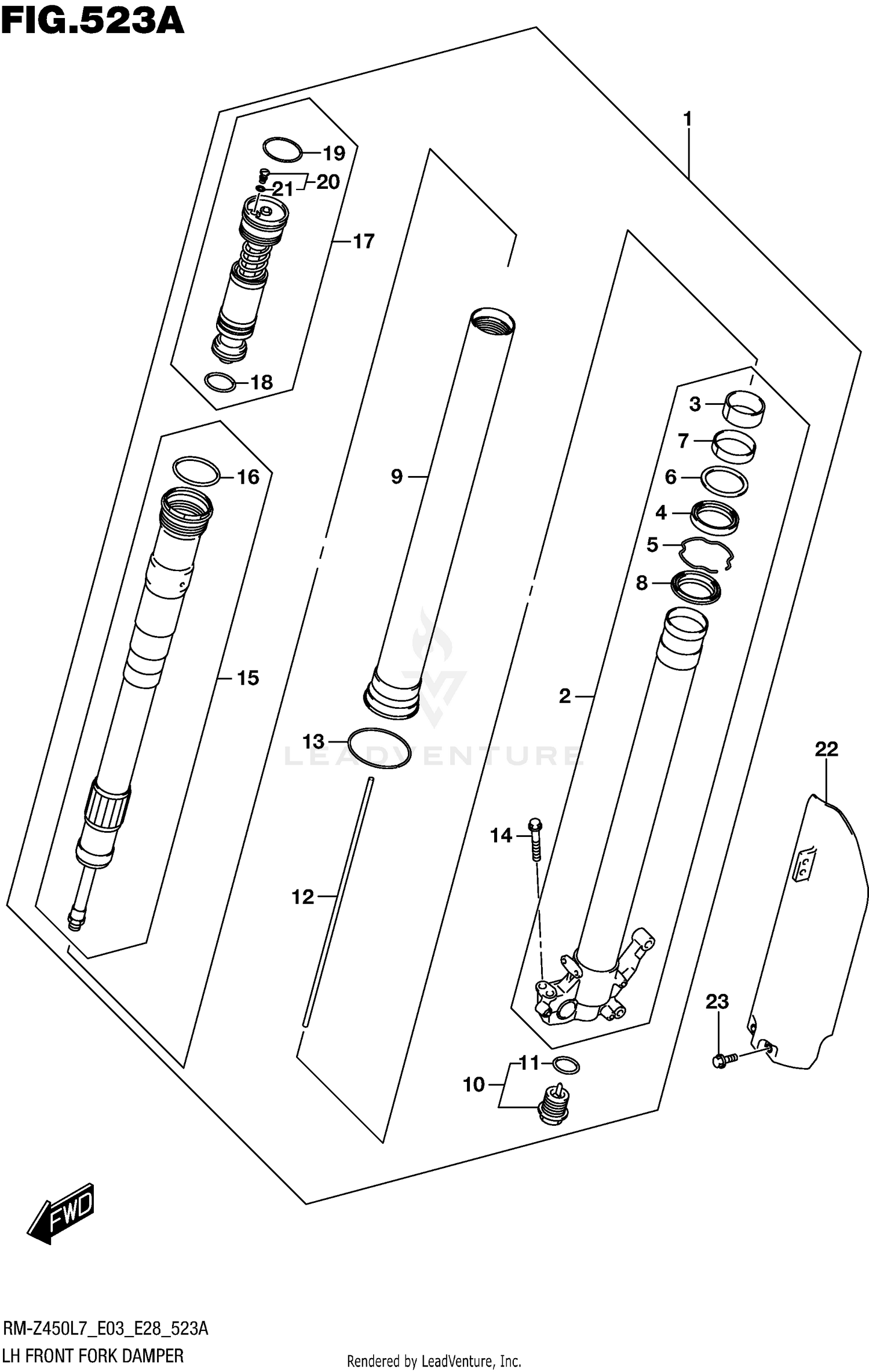

Lh Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK LH
51104-28H60
|
$1,508.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE, INNER LH
51120-28H40
|
$667.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BUSH,SLIDE
51127-28H40
|
$32.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
51153-36E00
|
$40.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.RING,STOPPER
51156-36E00
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SPACER,SEAL
51158-36E00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
..BUSH,GUIDE
51167-28H40
|
$31.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
..SEAL, DUST
51173-28H40
|
$42.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TUBE, OUTER
51140-28H40
|
$656.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT, CENTER
51170-28H40
|
$125.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
..O-RING
51122-28H40
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
.ROD, PUSH
51191-28H30
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
.RING,STOPPER
51211-28H40
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT
51328-37F80
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
.DAMPER
51190-28H40
|
$837.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
..O-RING
51118-28H30
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BOLT, FORK
51350-28H60
|
$472.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
..O-RING
51175-28H40
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
.O-RING
51187-47H00
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BOLT,PLUG
51357-36F20
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
..O RING,PLUG
51358-28E30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR,FRONT FORK LH
51510-28H70
|
$116.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (6X10)
09111-06098
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
