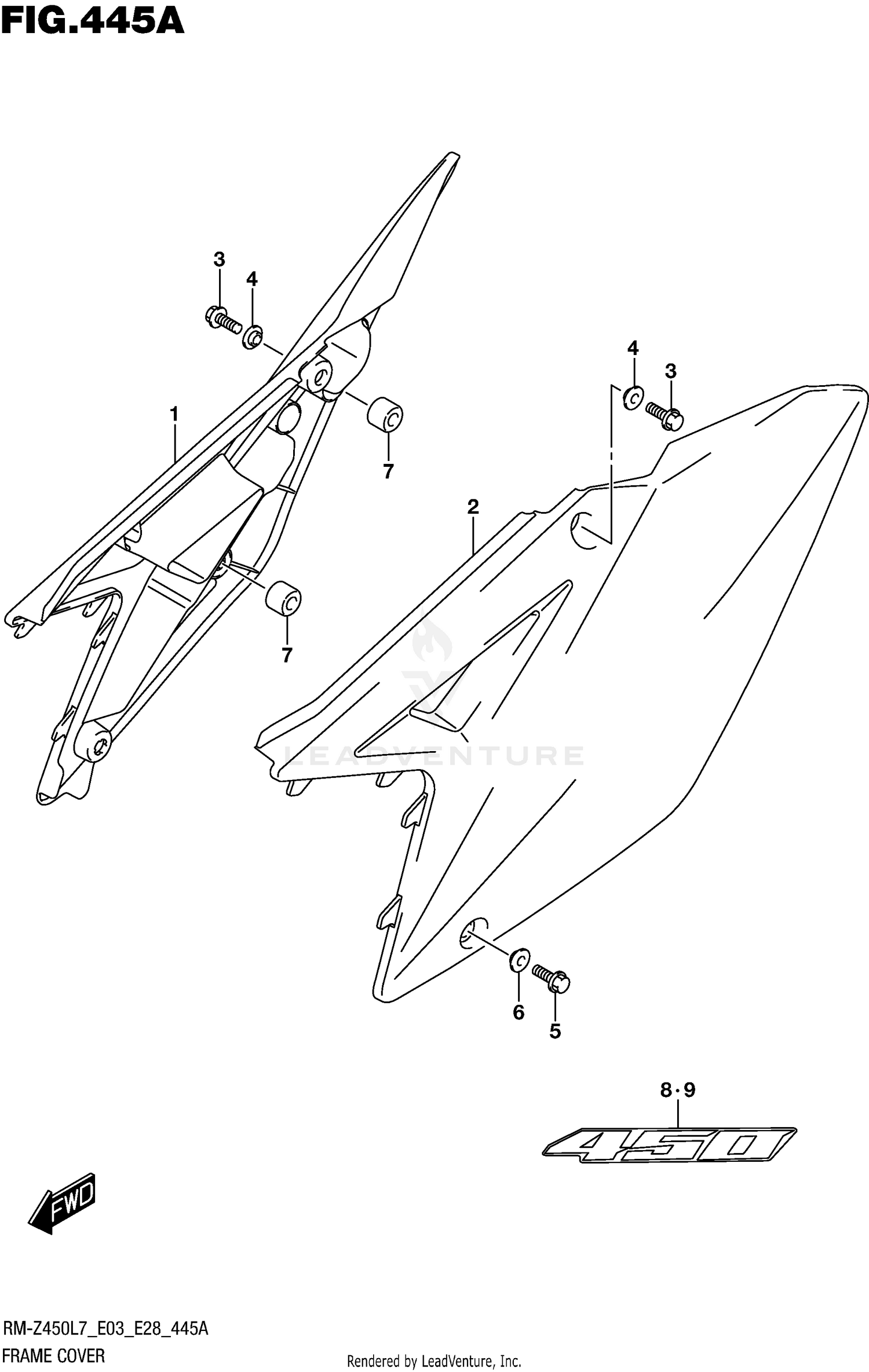

Frame Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLACK)
47111-28H02-019
|
$70.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FRAME LH (BLACK)
47211-28H00-019
|
$70.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
47191-28H00
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
47191-28H00
|
$12.74 | ||
|
Unavailable |
|||
|
#7
CUSHION
47161-08G00
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE, FRAME COVER, RH
68135-28H00-GY8
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
(YELLOW/BLACK)
68135-28H00-GY8
|
$18.79 | ||
|
Unavailable |
|||
|
#9
TAPE, FRAME COVER, LH
68145-28H00-GY8
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
(YELLOW/BLACK)
68145-28H00-GY8
|
$18.79 | ||
|
Unavailable |
|||
