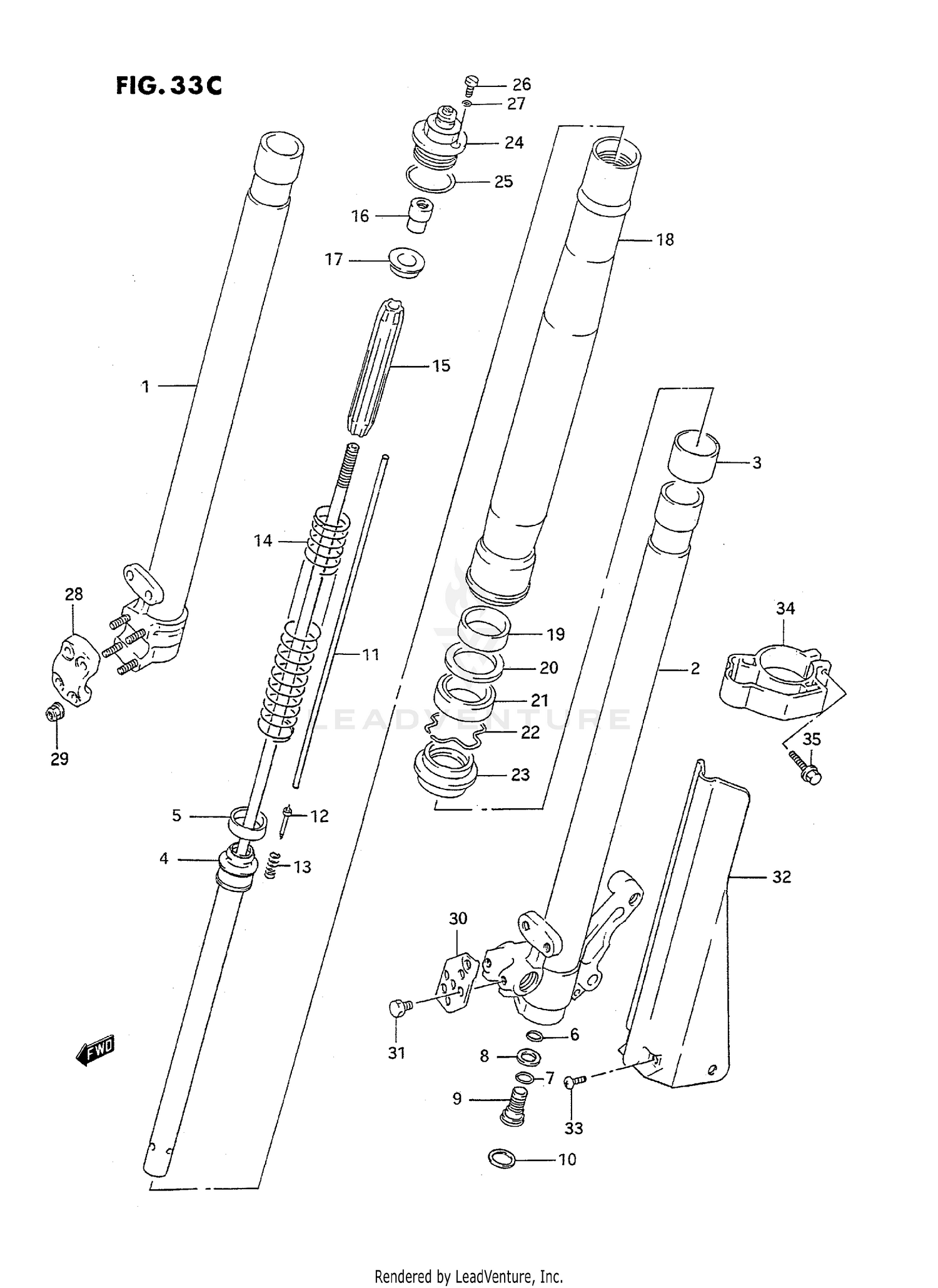

Front Damper (model N) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, R
51103-05D80
|
$2,423.35 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER ASSY, L
51104-05D80
|
$1,033.47 | ||
|
Unavailable |
|||
|
#1
TUBE, INNER RH
51110-43D00
|
$572.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, INNER LH
51120-43D00
|
$397.01 | ||
|
Unavailable |
|||
|
#3
BUSH, SLIDE
51121-27C40
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
51190-05D80
|
$404.39 | ||
|
Unavailable |
|||
|
#5
RING, PISTON
51176-43D00
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING, CENTER BOLT UPPER
51174-43D00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING, CENTER BOLT
51177-43D00
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CENTER BOLT
51148-43D00
|
$6.31 | ||
|
Unavailable |
|||
|
#9
BOLT, CENTER
51170-05D80
|
$151.55 | ||
|
Unavailable |
|||
|
#10
RING, STOPPER
51133-43D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH
51191-43D00
|
$82.57 | ||
|
Unavailable |
|||
|
#12
NEEDLE
51192-05D80
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
..SPRING,PUSH ROD
51193-43D00
Superseded by 51193-28E00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, MAIN
51171-05D80
Superseded by 51171-28C80
|
$67.83 | ||
|
Unavailable |
|||
|
#15
GUIDE, SPRING
51172-43D00
|
$35.61 | ||
|
Unavailable |
|||
|
#16
NUT, ROD
51129-43D00
|
$19.20 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
51175-43D00
|
$8.01 | ||
|
Unavailable |
|||
|
#18
TUBE, OUTER
51130-43D00
|
$518.00 | ||
|
Unavailable |
|||
|
#19
BUSH, GUIDE
51167-27C40
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, SEAL
51158-27C40
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, OIL
51153-43D00
Superseded by 51153-28E30
|
$36.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
..RING,OIL SEAL STOPPER
51156-27C40
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, DUST
51173-43D00
Superseded by 51173-28E40
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FORK
51351-43D00
|
$142.71 | ||
|
Unavailable |
|||
|
#25
O RING, FORK BOLT
51117-27C40
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
..BOLT, PLUG
51357-27C40
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#27
O RING, ROD
51358-27C40
Superseded by 51117-19C10
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, AXLE RH
51132-27C40
|
$46.25 | ||
|
Unavailable |
|||
|
#29
NUT
08319-31067
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
GUIDE, HOSE LH
59248-27C40
|
$17.25 | ||
|
Unavailable |
|||
|
#31
BOLT
59249-27C40
Superseded by 01500-05087
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
PROTECTOR, RH
51501-05D80
Superseded by 51501-29E00
|
$123.14 | ||
|
Available to order. Add to View Price |
|||
|
#32
PROTECTOR, LH
51511-43D00
Superseded by 51511-29E00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT,PROTECTOR (6X10)
58627-27C40
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#34
GUIDE, FORK PROTECTOR
51210-43D00
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
58628-43D00
Superseded by 01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#36
REFER TO FIG.33D(H-10) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
