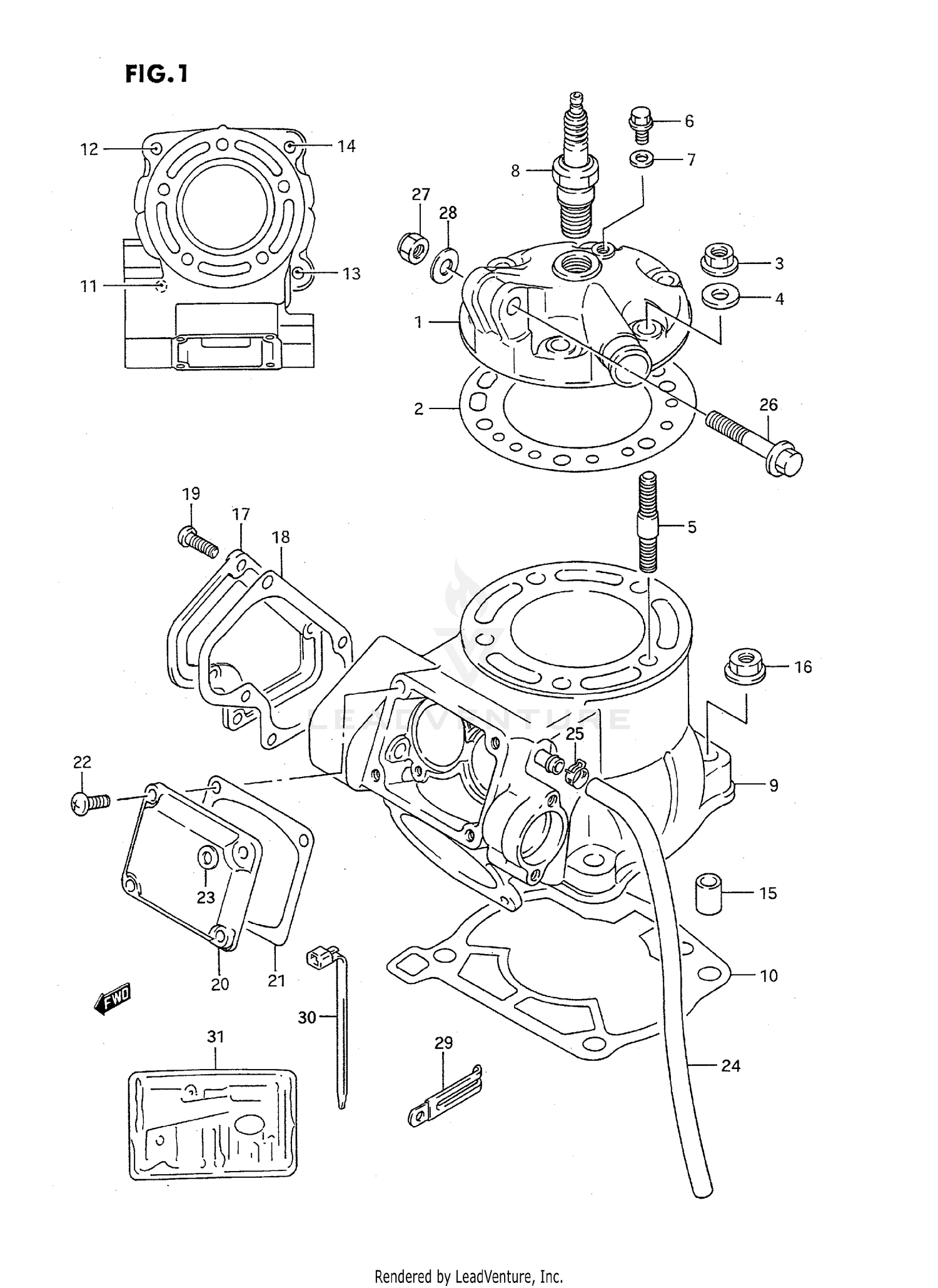

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER
11111-28C00
Superseded by 11111-28C10
|
$593.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEAD, CYLINDER
11111-28C10
|
$593.96 | ||
|
Unavailable |
|||
|
#2
GASKET,CYL HEAD
11141-05D00
Superseded by 11141-05D01
|
$58.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER HEAD (T:1.7)
11141-29E10
|
$54.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER HEAD (T:1.2)
11141-05D20
|
$65.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT (CHROME)
08316-16088
Superseded by 08316-10087
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (8.5X19X2.3)
09160-08095
Superseded by 09160-08039
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09160-08039
|
$2.37 | ||
|
Unavailable |
|||
|
#5
STUD BOLT (L:30)
09108-08224
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, AIR DUCT
09360-06007
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
09168-06004
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (NGK,B8EGV)
09482-00208
|
$7.99 | ||
|
Unavailable |
|||
|
#8
SPARK PLUG (NGK,R6918B-8)
09482-00115
Superseded by 09482-00509
|
$41.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
11200-28811
Superseded by 11200-28821
|
$655.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
11200-28820
Superseded by 11200-28821
|
$655.85 | ||
|
Unavailable |
|||
|
#9
CYLINDER
11200-29821
|
$855.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CYLINDER
11241-28C01
Superseded by 11241-28C11
|
$19.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CYLINDER
11241-28C11
|
$19.65 | ||
|
Unavailable |
|||
|
#11
STUD BOLT (L:30)
01421-10308
Superseded by 01421-1030A
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,STUD
01421-10358
Superseded by 01421-1035A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD BOLT (L:40)
01421-10408
Superseded by 01421-1040A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD BOLT
01421-10457
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN
09206-13006
Superseded by 09206-13017
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, WHEEL SET
08316-16108
Superseded by 08316-10107
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08316-10103
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER NO. 1
11231-05D00
Superseded by 11231-29E01
|
$29.28 | ||
|
Unavailable |
|||
|
#17
COVER, CYLINDER NO. 1
11231-29E00
Superseded by 11231-29E01
|
$29.28 | ||
|
Unavailable |
|||
|
#17
COVER, CYLINDER NO.1
11231-29E01
|
$29.28 | ||
|
Unavailable |
|||
|
#18
GASKET, CYLINDER COVER NO. 1
11233-28C01
Superseded by 11233-29E00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER COVER NO.1
11233-29E00
|
$7.42 | ||
|
Unavailable |
|||
|
#19
SCREW
02112-05168
Superseded by 02112-05167
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01177-06168
Superseded by 01580-06167
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CYLINDER NO.2
11240-05D00
|
$19.50 | ||
|
Unavailable |
|||
|
#20
COVER, CYLINDER NO.2
11248-05D10
Superseded by 11248-28C20
|
$25.25 | ||
|
Unavailable |
|||
|
#20
COVER, CYLINDER NO.2
11248-28C20
|
$25.25 | ||
|
Unavailable |
|||
|
#21
GASKET, CYLINDER COVER NO.2
11238-28C00
Superseded by 11238-05D01
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET, CYLINDER COVER NO.2
11238-05D00
Superseded by 11238-05D01
|
$4.09 | ||
|
Unavailable |
|||
|
#21
GASKET, CYLINDER COVER NO.2
11238-05D01
|
$4.09 | ||
|
Unavailable |
|||
|
#22
SCREW
02112-05168
Superseded by 02112-05167
|
$2.45 | ||
|
Unavailable |
|||
|
#22
SCREW
02112-05163
Superseded by 02112-0516A
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
09168-05010
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE(6.5X11.5X6
09354-65113-300
Superseded by 09355-65001-600
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (9X14X220)
09343-09501
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
09401-12405
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, MUF SPRT,RR
01517-08457
Superseded by 01550-08457
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X45)
09103-08043
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08319-21088
Superseded by 08319-2108A
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT (M8X1.25)
09159-08067
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP (L:60)
09404-05401
Superseded by 09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#29
CLAMP
09404-06402
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP, CLUTCH CABLE
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#30
CLAMP, BREATHER HOSE
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NO DESCRIPTION AVAILABLE
11401-05820
Superseded by 11401-05827
|
$162.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
NO DESCRIPTION AVAILABLE
11401-05840
Superseded by 11401-05845
|
$176.79 | ||
|
Unavailable |
|||
|
#31
GASKET SET
11401-29820
Superseded by 11401-29821
|
$179.16 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET SET
11401-29821
|
$179.16 | ||
|
Unavailable |
|||
