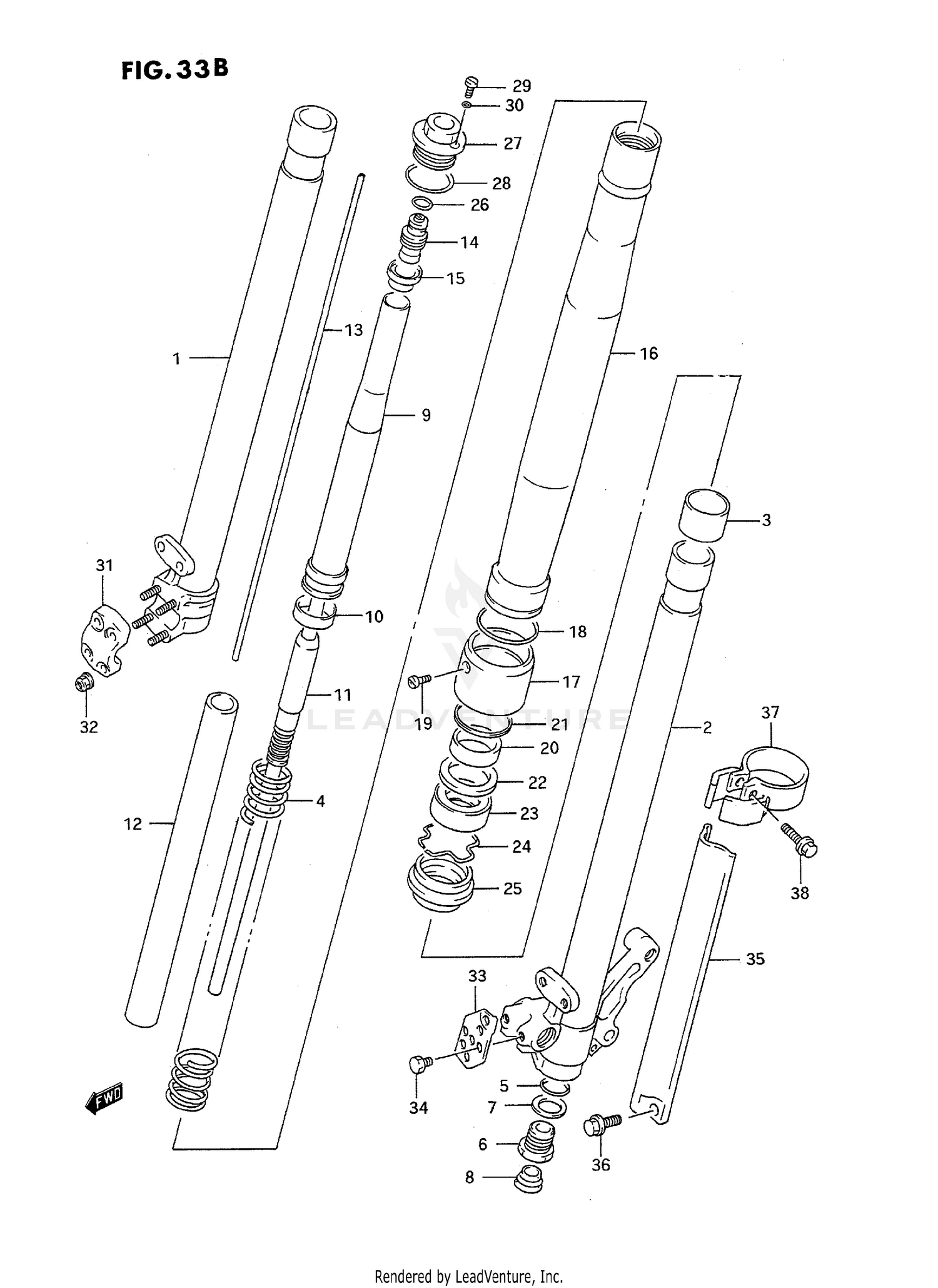

Front Damper (model M) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, RH
51103-05D60
|
$1,019.56 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, LH
51104-05D60
|
$1,019.56 | ||
|
Unavailable |
|||
|
#1
TUBE, INNER RH
51110-27C40
|
$330.27 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
51120-27C40
Superseded by 51120-27C41
|
$366.21 | ||
|
Unavailable |
|||
|
#3
BUSH, SLIDE
51121-27C40
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, MAIN
51171-05D60
Superseded by 51171-27C40
|
$67.83 | ||
|
Unavailable |
|||
|
#5
O RING
51174-27C40
Superseded by 51175-03B30
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CENTER
51170-05D60
|
$124.85 | ||
|
Unavailable |
|||
|
#7
GASKET
51148-27C40
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
51189-08D00
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, SPRING
51175-27C40
|
$162.64 | ||
|
Unavailable |
|||
|
#10
RING, PISTON
51176-27C40
|
$13.38 | ||
|
Unavailable |
|||
|
#11
ROD ASSY, PISTON
51190-05D60
|
$320.96 | ||
|
Unavailable |
|||
|
#12
CYLINDER
51146-27C40
|
$159.47 | ||
|
Unavailable |
|||
|
#13
ROD, PUSH
51191-27C40
|
$45.84 | ||
|
Unavailable |
|||
|
#14
ADJUSTER, SPRING
51180-27C40
|
$81.84 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING STOPPER
51355-27C41
|
$37.46 | ||
|
Unavailable |
|||
|
#16
TUBE, OUTER
51130-27C40
|
$518.00 | ||
|
Unavailable |
|||
|
#17
CASE, OIL SEAL
51135-27C40
|
$57.74 | ||
|
Unavailable |
|||
|
#18
O RING
51131-27C40
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
51134-27C40
|
$2.22 | ||
|
Unavailable |
|||
|
#20
BUSH, GUIDE
51167-27C40
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, STOPPER UPPER
51133-27C40
|
$3.54 | ||
|
Unavailable |
|||
|
#22
SPACER, SEAL
51158-27C40
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, OIL
51153-27C41
Superseded by 51153-28E30
|
$36.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
..RING,OIL SEAL STOPPER
51156-27C40
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, DUST
51173-27C41
Superseded by 51173-28E40
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (D:2.4,ID:11.8)
51129-27C40
Superseded by 09280-12012
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FORK
51351-27C40
|
$118.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING
51117-27C40
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
..BOLT, PLUG
51357-27C40
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING, ROD
51358-27C40
Superseded by 51117-19C10
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER, AXLE RH
51132-27C40
|
$46.25 | ||
|
Unavailable |
|||
|
#32
NUT
08319-31067
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GUIDE, HOSE LH
59248-05D60
|
$12.59 | ||
|
Unavailable |
|||
|
#34
BOLT
59249-27C40
Superseded by 01500-05087
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, FORK RH
51501-05D60
|
$75.92 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, FORK LH
51511-27C40
|
$72.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT,PROTECTOR (6X10)
58627-27C40
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUIDE, FORK PROTECTOR RH
51201-27C40
|
$58.97 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUIDE, FORK PROTECTOR LH
51211-27C40
|
$58.97 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, GUIDE
58628-27C40
|
$3.69 | ||
|
Unavailable |
|||
|
#39
REFER TO FIG.33C(H- 8) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
