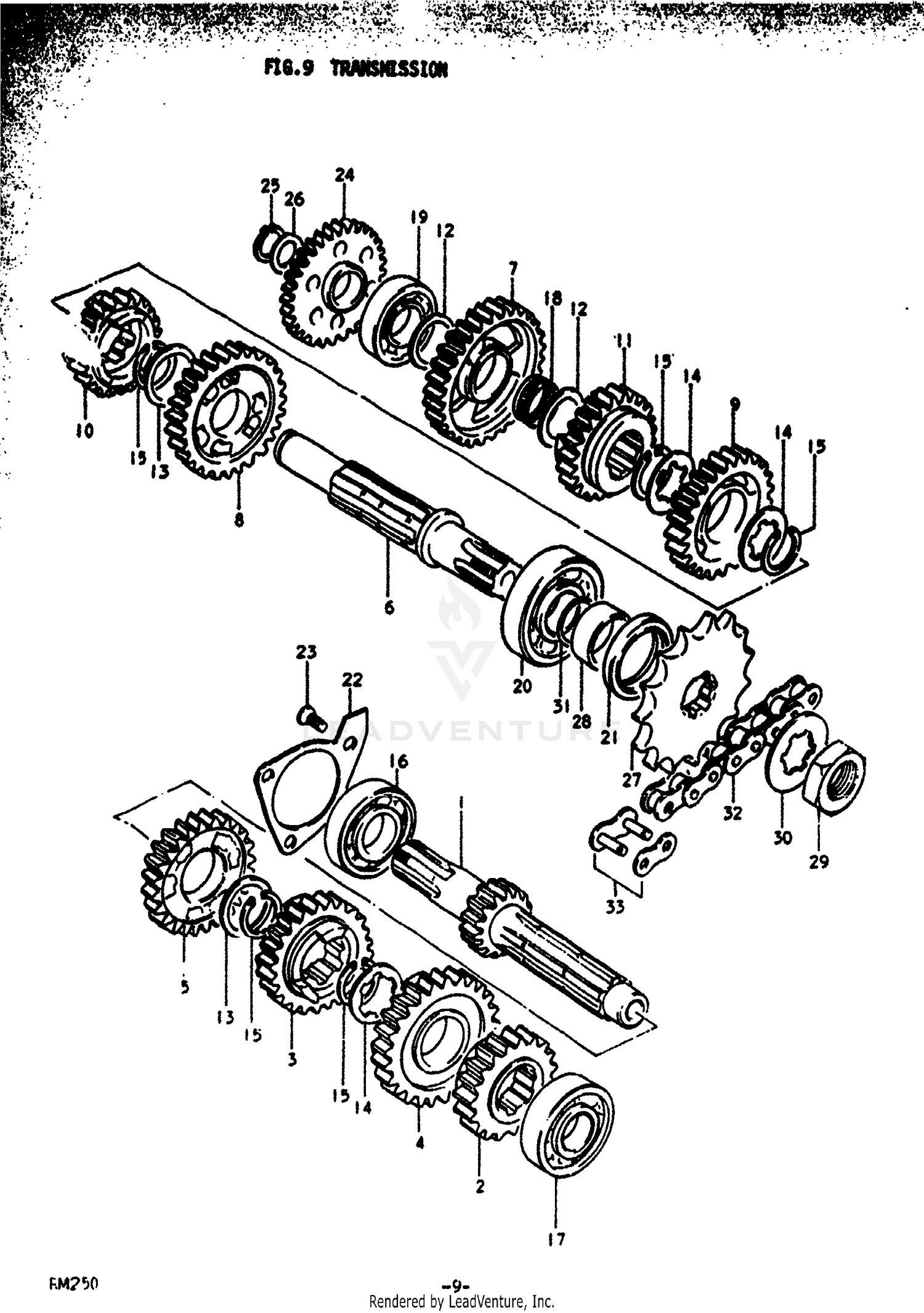

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTRSHAFT
24121-41100
|
$109.15 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-41100
Superseded by 24221-41102
|
$66.09 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD DRIVE
24231-41100
|
|||
|
Unavailable |
|||
|
#3
GEAR, 3RD DRIVE
24231-41101
|
|||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
24231-41102
Superseded by 24231-41104
|
$65.94 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
24241-41100
Superseded by 24241-14301
|
$53.88 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
24251-41100
Superseded by 24251-14201
|
$47.51 | ||
|
Unavailable |
|||
|
#6
NO DESCRIPTION AVAILABLE
24131-41100
Superseded by 24131-41101
|
$108.15 | ||
|
Unavailable |
|||
|
#7
GEAR, 1ST DRIVEN (NT:27)
24311-41100
Superseded by 24311-41102
|
$69.21 | ||
|
Unavailable |
|||
|
#7
GEAR, 1ST DRIVEN (NT:27)
24311-41101
Superseded by 24311-41102
|
$69.21 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND DRIVEN (NT:28)
24320-41100
Superseded by 24320-41101
|
$62.03 | ||
|
Unavailable |
|||
|
#9
NO DESCRIPTION AVAILABLE
24331-41101
Superseded by 24331-41103
|
$55.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
24331-41102
Superseded by 24331-41103
|
$55.52 | ||
|
Unavailable |
|||
|
#10
GEAR, 4TH DRIVEN
24341-41101
|
$47.51 | ||
|
Unavailable |
|||
|
#10
NO DESCRIPTION AVAILABLE
24341-41102
Superseded by 24341-41103
|
$63.59 | ||
|
Unavailable |
|||
|
#11
GEAR, 5TH DRIVEN (NT:21)
24351-41100
Superseded by 24351-41103
|
$55.12 | ||
|
Unavailable |
|||
|
#11
GEAR, 5TH DRIVEN (NT:21)
24351-41101
Superseded by 24351-41103
|
$55.12 | ||
|
Unavailable |
|||
|
#12
SHIM (17X28X1)
08211-17281
Superseded by 09181-17195
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
THRUST WASHER
09181-22002
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
09167-22011
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
09380-22006
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, COUNTER SHAFT
09262-20009
Superseded by 09262-20073
|
$28.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BEARING, DRIVE SHAFT RH
08113-62030
Superseded by 09262-17023
|
$20.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING
09263-17004
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, DRIVE SHAFT RH
08113-62030
Superseded by 09262-17023
|
$20.40 | ||
|
Unavailable |
|||
|
#20
BEARING (22X56X16)
09262-22011
Superseded by 09262-22028
|
$94.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
09283-32003
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, BEARING
24741-40000
Superseded by 24741-40001
|
|||
|
Unavailable |
|||
|
#22
HOLDER, BEARING
24741-40001
|
|||
|
Unavailable |
|||
|
#23
SCREW
02122-06128
Superseded by 02122-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, KICK IDLE (NT:26)
26260-41100
Superseded by 26260-13A10
|
$83.63 | ||
|
Unavailable |
|||
|
#25
CIRCLIP
09380-17001
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER
08211-17241
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET, ENGINE
27511-41110
|
$26.57 | ||
|
Unavailable |
|||
|
#27
SPROCKET, ENGINE
27511-41100
|
$27.32 | ||
|
Unavailable |
|||
|
#27
SPROCKET, ENGINE (NT:14)
27511-41120
Superseded by 27511-14210
|
$26.57 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER
09180-22007
|
$10.14 | ||
|
Unavailable |
|||
|
#29
NUT
09140-22006
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#30
LOCK WASHER
09167-22005
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
O RING
09280-22003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#32
CHAIN,DRIVE ASS
27600-41110
Superseded by 27600-46K00-116
|
$179.72 | ||
|
Unavailable |
|||
|
#33
JOINT (DID)
27620-40000
Superseded by 27620-14252
|
$5.60 | ||
|
Unavailable |
|||
