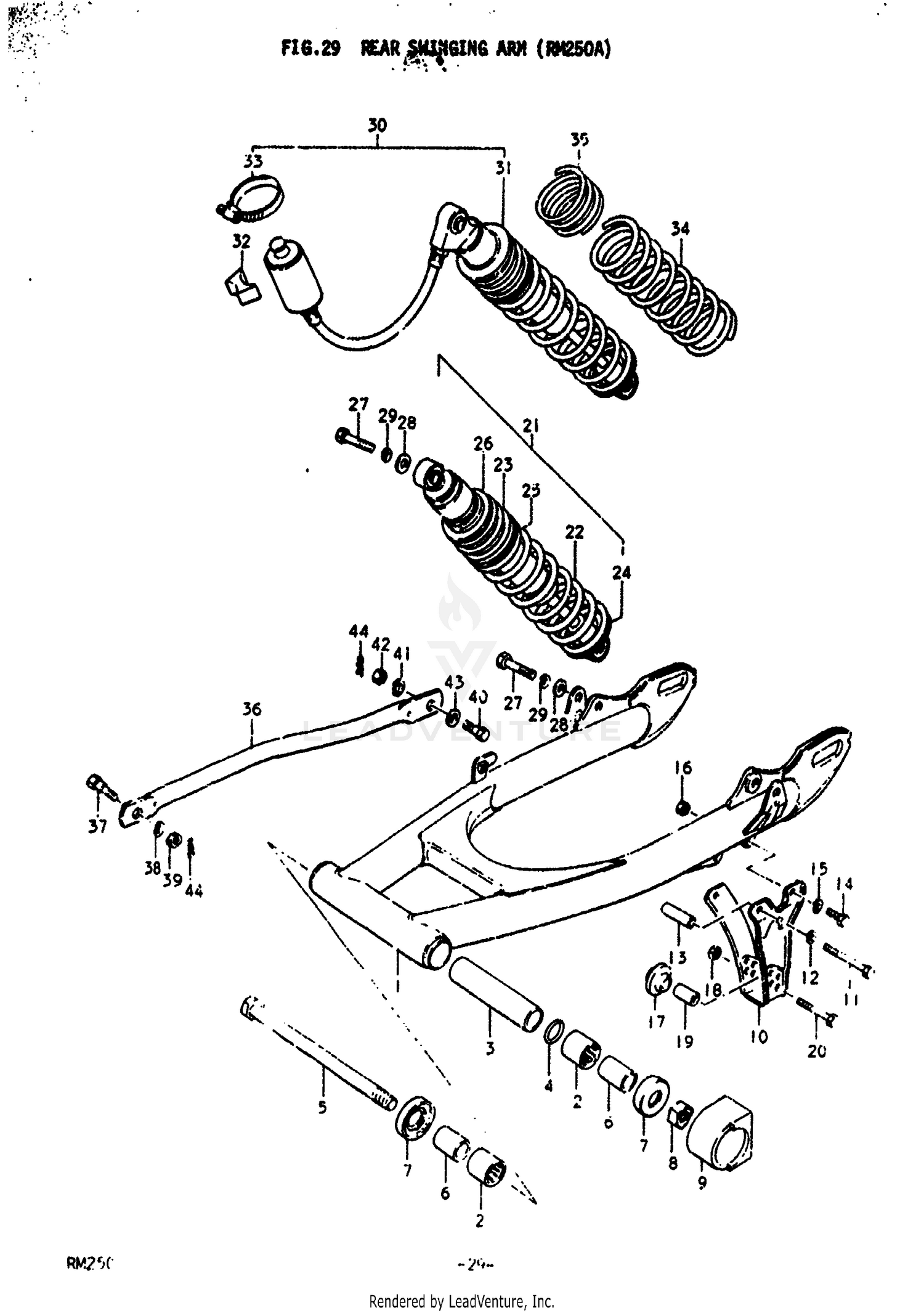

Rear Swinging Arm (rh250a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR SWINGING ARM SET
61100-41825-019
|
|||
|
Unavailable |
|||
|
#2
BEARING
09263-20021
|
$44.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, CENTER
61282-40000
|
$21.93 | ||
|
Unavailable |
|||
|
#4
O RING
09280-19001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
61211-38000
Superseded by 61211-38004
|
$25.65 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
61211-38001
Superseded by 61211-38004
|
$25.65 | ||
|
Unavailable |
|||
|
#6
SPACER
09180-14007
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
THRUST BEARING
09269-20010
|
$35.09 | ||
|
Unavailable |
|||
|
#8
NUT
61221-40000
Superseded by 08319-2114A
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUFFER, CHAIN DEFENSE
61273-40001
|
$5.47 | ||
|
Unavailable |
|||
|
#10
GUIDE, CHAIN
61340-41101
Superseded by 61340-41400
|
$11.03 | ||
|
Unavailable |
|||
|
#11
BOLT
01107-06508
Superseded by 01500-06507
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPACER
09180-06056
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
Unavailable |
|||
|
#16
.NUT
08310-11068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
ROLLER
61345-41100
Superseded by 61345-41101
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-06018
|
$0.82 | ||
|
Unavailable |
|||
|
#19
SPACER
09180-06067
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01107-06358
Superseded by 64455-07L00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHOCK ABSORBER ASSY, REAR
62100-41110
|
$130.92 | ||
|
Unavailable |
|||
|
#22
SPRING NO. :
62211-41110
|
$22.59 | ||
|
Unavailable |
|||
|
#23
SPRING NO. 2
62212-41110
|
$27.34 | ||
|
Unavailable |
|||
|
#24
GUIDE, SPRING
62225-40600
|
$11.53 | ||
|
Unavailable |
|||
|
#25
GUIDE, SPRING CENTER
62221-41111
|
$5.12 | ||
|
Unavailable |
|||
|
#26
SEAT, SPRING
62191-41110
|
|||
|
Unavailable |
|||
|
#27
BOLT 10X 40
09100-10096
Superseded by 09100-10184
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
08322-11108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#30
REAR SHOCK ABSORBER SET
62100-41811
|
|||
|
Unavailable |
|||
|
#31
NO DESCRIPTION AVAILABLE
62100-41630
Superseded by 62100-41631
|
$126.42 | ||
|
Unavailable |
|||
|
#32
CUSHION
62331-41630
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
62332-41631
|
$11.10 | ||
|
Unavailable |
|||
|
#34
SPRING, NO. 1
62211-41700
|
$31.48 | ||
|
Unavailable |
|||
|
#35
SPRING, NO. 2
62212-41700
|
$19.24 | ||
|
Unavailable |
|||
|
#36
NO DESCRIPTION AVAILABLE
64311-34000
Superseded by 64311-34000-019
|
$16.62 | ||
|
Unavailable |
|||
|
#37
BOLT
09111-08012
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
NUT
09140-08008
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
09101-10003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#41
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Unavailable |
|||
|
#42
NUT
08310-22108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
08322-21108
Superseded by 08322-01107
|
$2.27 | ||
|
Unavailable |
|||
|
#44
CLIP
09385-10001
Superseded by 09385-10005
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
