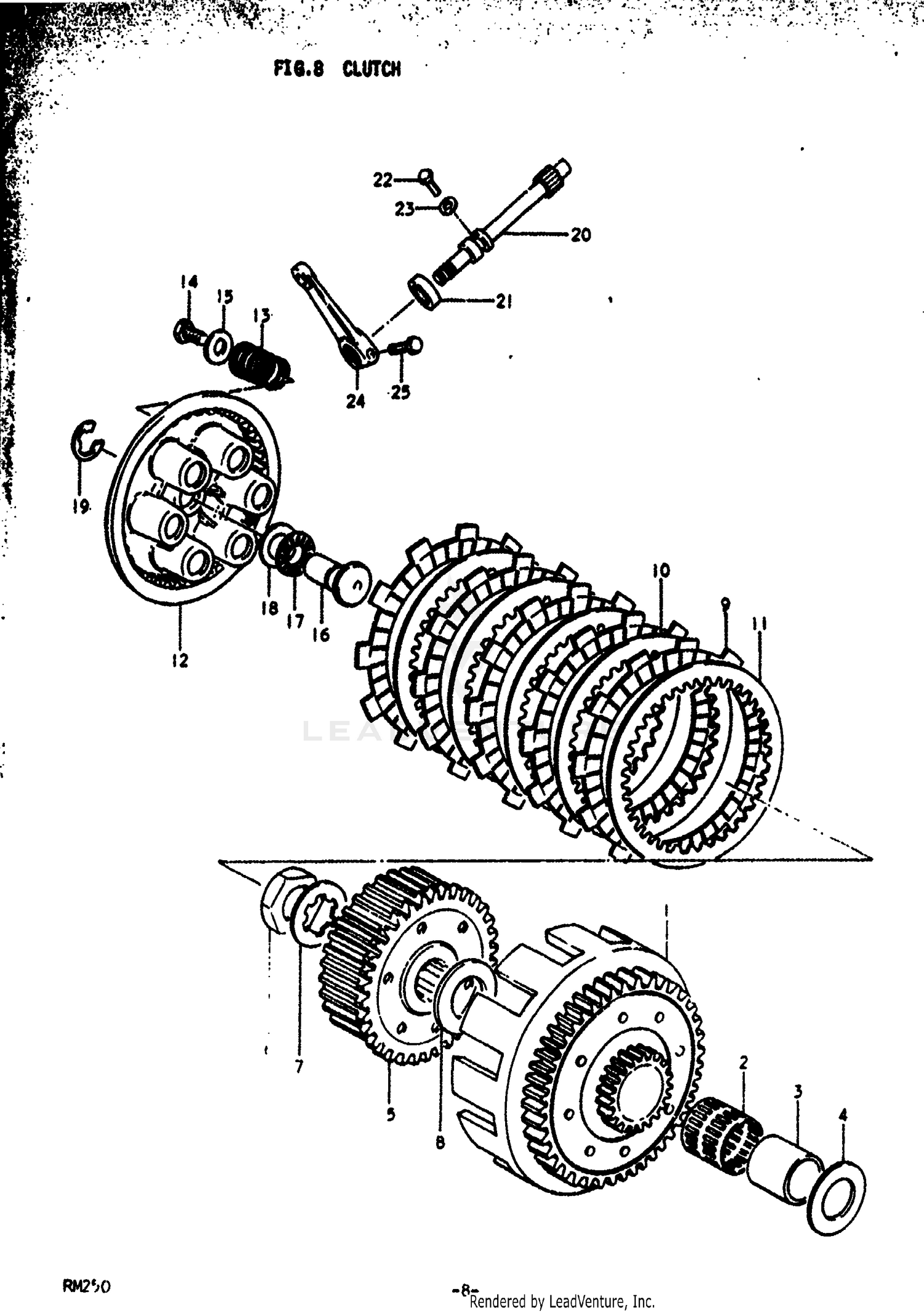

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-41100
|
$169.65 | ||
|
Unavailable |
|||
|
#2
BEARING
09263-25004
|
$12.85 | ||
|
Unavailable |
|||
|
#3
SPACER
09180-20025
Superseded by 09180-20076
|
$6.62 | ||
|
Unavailable |
|||
|
#4
THRUST WASHER
09160-20028
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, SLEEVE
21411-41101
|
$62.50 | ||
|
Unavailable |
|||
|
#6
NUT
09140-20002
Superseded by 09140-20001
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09167-22005
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
THRUST WASHER
09160-20028
|
$4.82 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH DRIVE NO.2
21441-16500
Superseded by 21442-37401
|
$23.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN
21451-40000
Superseded by 21451-31000
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN
21451-40001
Superseded by 21451-31000
|
$12.84 | ||
|
Unavailable |
|||
|
#11
PLATE, DRIVEN NO. 2
21451-31000
|
$12.84 | ||
|
Unavailable |
|||
|
#12
DISC,CLUTCH PRESSURE
21462-16500
Superseded by 21462-14301
|
$64.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
09440-19007
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
.WASHER (6.5X20X1.6)
09160-06020
Superseded by 09160-06066
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
NO DESCRIPTION AVAILABLE
23165-16500
Superseded by 23165-16502
|
$26.17 | ||
|
Unavailable |
|||
|
#16
NO DESCRIPTION AVAILABLE
23165-16501
Superseded by 23165-16502
|
$26.17 | ||
|
Unavailable |
|||
|
#17
THRUST BEARING
09263-15003
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CLUTCH PUSH
09160-15015
Superseded by 09160-15045
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
E-RING
08332-11128
Superseded by 08332-1112A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
PINION, RELEASE
23261-16500
Superseded by 23261-16501
|
$48.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT
09135-06009
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
ARM, RELEASE
23271-40000
|
$55.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01107-06208
Superseded by 01500-06207
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
