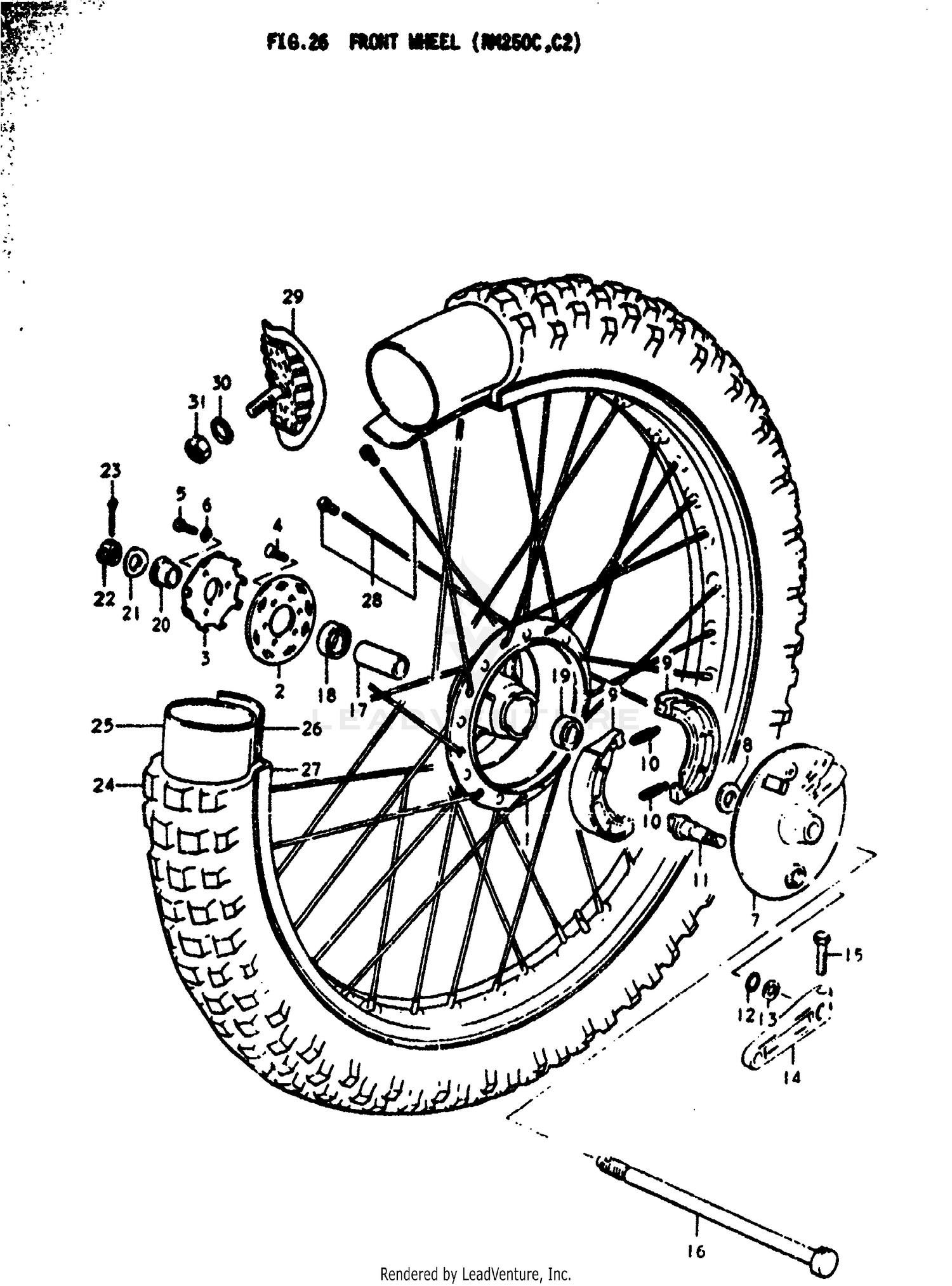

Front Wheel (rm250c Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54110-41300
Superseded by 54110-41301
|
$109.21 | ||
|
Unavailable |
|||
|
#1
HUB, FRONT WHEEL
54110-41301
|
$109.21 | ||
|
Unavailable |
|||
|
#2
HUB, FLANGE, FRONT RH
54112-41300
|
$8.40 | ||
|
Unavailable |
|||
|
#2
HUB, FLANGE, FRONT RH
54112-41301
|
$11.24 | ||
|
Unavailable |
|||
|
#3
HOLDER, HUB BEARING RH
54151-30500
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02122-06168
Superseded by 02122-06167
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NO DESCRIPTION AVAILABLE
54210-41300
Superseded by 54210-41301
|
$99.18 | ||
|
Unavailable |
|||
|
#8
BOSS
54221-41300
|
$3.66 | ||
|
Unavailable |
|||
|
#9
SHOE SET, BRAKE
54410-07002
Superseded by 54401-07810
|
$19.14 | ||
|
Unavailable |
|||
|
#10
SPRING
09443-07001
Superseded by 09443-07025
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAM, BRAKE
54441-41300
|
$9.71 | ||
|
Unavailable |
|||
|
#12
DUST SEAL
09280-12001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (12.5X20X1.0)
09160-12011
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NO DESCRIPTION AVAILABLE
54451-41300
Superseded by 54451-41301
|
$39.16 | ||
|
Unavailable |
|||
|
#15
BOLT
01107-06258
Superseded by 01500-06257
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE,FRONT
64711-43000
Superseded by 64711-43001
|
$45.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER (12.5X19X52)
09180-12041
Superseded by 09180-12144
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
08123-62010
Superseded by 08133-62017
|
$22.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
08143-62010
Superseded by 08143-6201B
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, RH
54741-41100
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
08322-11128
Superseded by 08322-01127
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08314-41128
Superseded by 08314-4012A
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
04111-30308
Superseded by 04111-3030A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
TIRE, FRONT
55100-41310
|
$45.44 | ||
|
Unavailable |
|||
|
#24
TIRE, FRONT
55100-41311
|
|||
|
Unavailable |
|||
|
#25
TUBE
55200-16510
Superseded by 55200-16511
|
$46.67 | ||
|
Unavailable |
|||
|
#26
PROTECTOR, INNER TUBE
55261-16510
Superseded by 55261-14540
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
RIM, WHEEL
55311-41320
|
$164.29 | ||
|
Unavailable |
|||
|
#28
NO DESCRIPTION AVAILABLE
55300-41830
Superseded by 55300-41831
|
$36.09 | ||
|
Unavailable |
|||
|
#28
NO DESCRIPTION AVAILABLE
55300-41840
Superseded by 55300-41841
|
$41.50 | ||
|
Unavailable |
|||
|
#29
STOPPER,BEAD (1.85)
65270-30001
Superseded by 65270-43D00
|
$63.46 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT
08310-12088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
