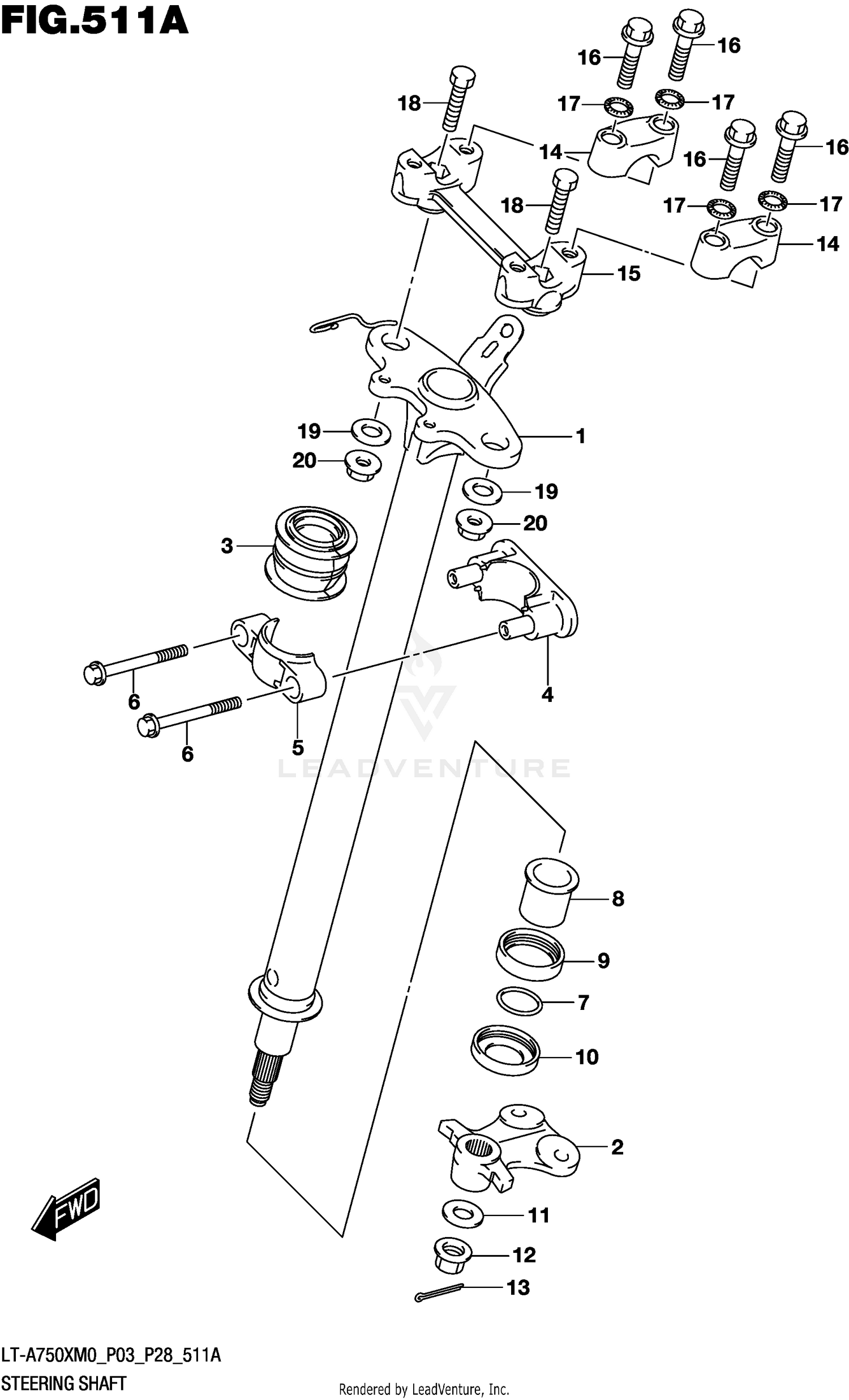

Steering Shaft (lt-a750xm0 P03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, STEERING
51650-34K00
|
$177.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, STEERING ARM
51653-34K00
|
$94.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH,STEERING SHAFT HOLDER
51678-31G00
Superseded by 51678-31G01
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, STEERING SHAFT
51670-31G00
|
$40.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, STEERING SHAFT FRONT
51673-31G00
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0875A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
09280-24014
|
|||
|
Unavailable |
|||
|
#8
BUSH, STEERING SHAFT LOWER
51661-31G00
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL, STEERING SHAFT
51662-31G01
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, STEERING LOWER
51663-31G11
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (14.5X30X3.2)
09160-14062
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-14027
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, HANDLEBAR UPPER
56211-09F10
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, HANDLE HOLDER
56211-31G10
|
$48.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09164-08015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01500-1035A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (10.5X22X2.3)
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT (M10)
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
