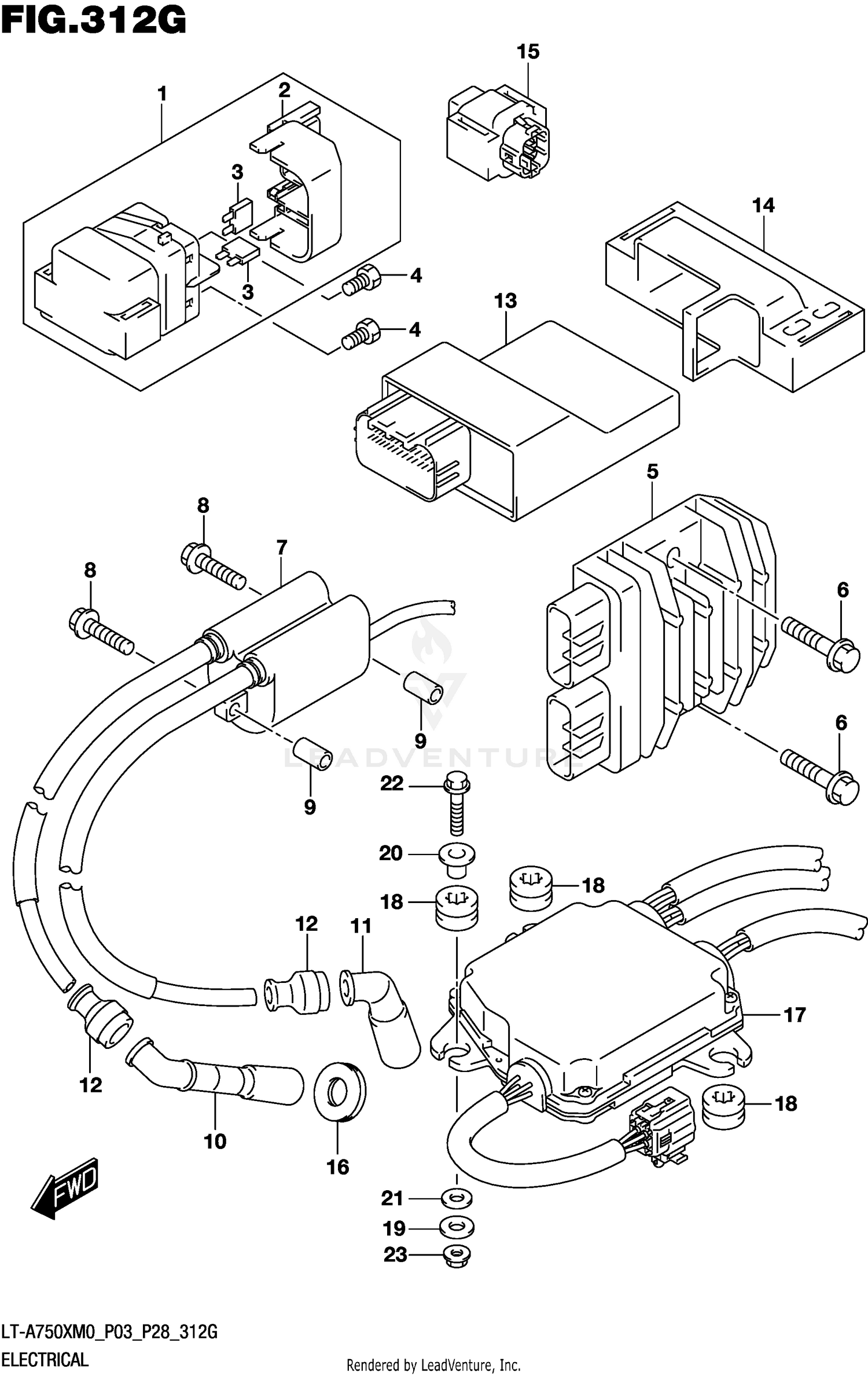

Electrical (lt-a750xpzm0 P03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-26J02
|
$283.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (6X25)
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY, IGNITION
33410-40H01
|
$140.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY, SPARK PLUG
33510-31G00
|
$51.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSY, SPARK PLUG
33510-31G10
|
$42.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL UNIT, FI
32920-34K01
|
$682.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, FI CONTROL UNIT
32980-31GA0
|
$48.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY, FUEL CUT
33960-27G00
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, SPARK PLUG CAP
33543-33E01
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONTROL UNIT, EPS
32910-34K00
|
$963.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION, EPS
32912-31G00
|
|||
|
Unavailable |
|||
|
#19
WASHER (6.5X15X1.0)
09160-06094
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
09169-06075
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
09169-06076
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (L:30)
01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
