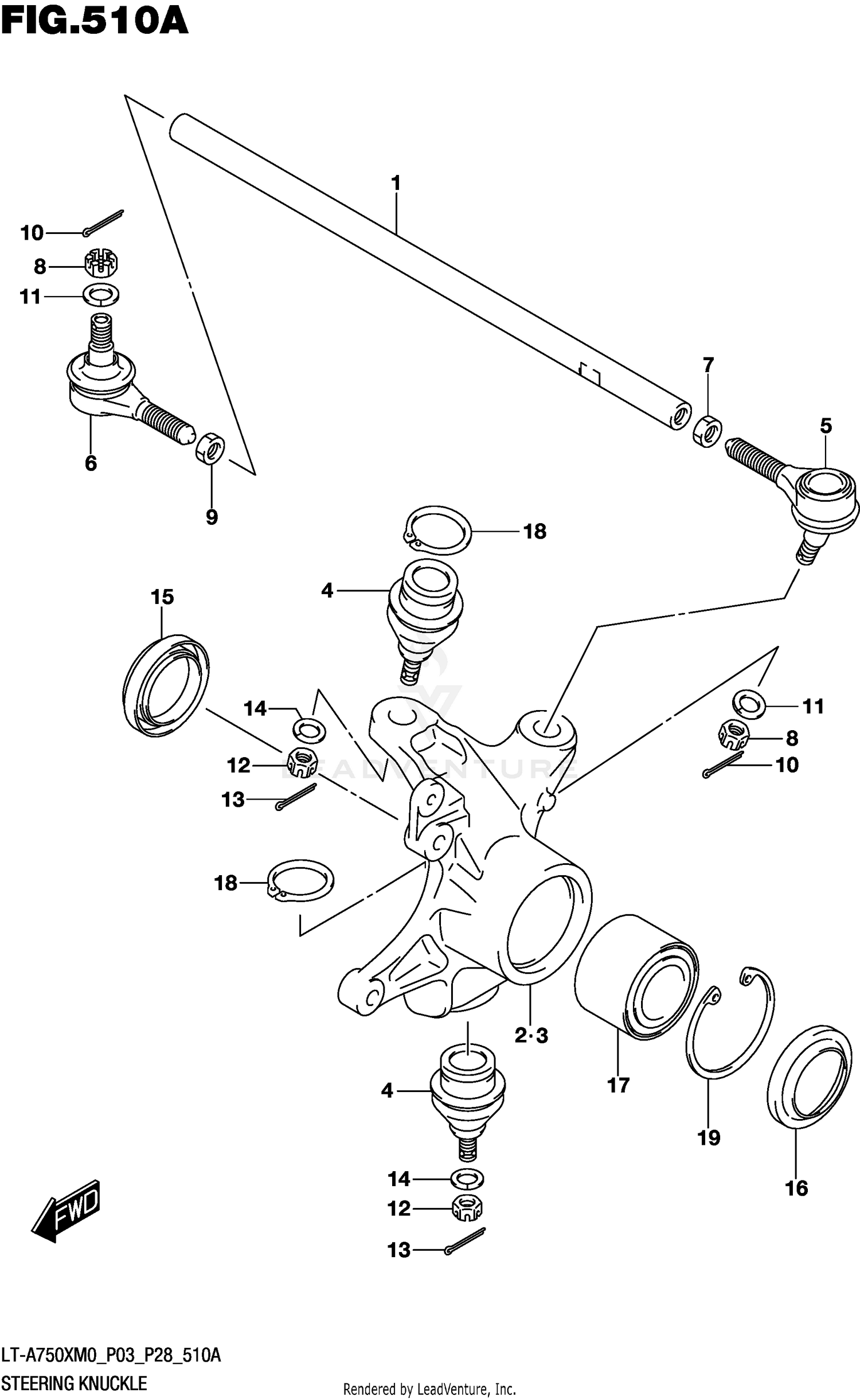

Steering Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIE ROD, STEERING
51281-43B00
|
$44.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
KNUCKLE, STEERING RH
51231-34K00
|
$83.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
KNUCKLE, STEERING LH
51241-34K00
|
$83.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
END, KNUCKLE STEERING
51210-31G10
|
$84.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, END RH
51260-45G00
|
$74.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, END LH
51270-45G00
|
$76.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, TIE ROD (RH THREAD)
51283-09F00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08314-4010B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09140-12035
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN
04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X19X2.0)
09160-10082
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08314-4010B
|
$3.13 | ||
|
Unavailable |
|||
|
#13
PIN
04111-2020A
|
$1.53 | ||
|
Unavailable |
|||
|
#14
WASHER (10.5X19X2.0)
09160-10082
|
$2.02 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (38X55X8)
09283-38012
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (38X55X6)
09285-38002
|
$17.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, FRONT HUB
51259-31G10
|
$131.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
08331-31309
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
08331-41559
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
